Not every very-narrow-aisle warehouse is ten metres tall. The OPD15Z brings tri-lateral handling to the 4.5 to 7.5 metre band with a shorter mast, a lighter chassis and a price point below the big VNA machines, while keeping the feature that matters: a lateral fork that rotates 180 degrees to serve both sides of the aisle.
Endurance
- Full AC system with a 48 V / 450 Ah battery - specified for two shifts on one charge
- Regenerative and reverse braking plus ramp anti-slip
- Side-way battery slides out for maintenance or exchange
Operator station
- Seated cabin; one-hand console integrates all fork and travel operations
- Seat with adjustable backrest, position and suspension; telescoping steering wheel
- Central display with operator permissions, status, faults and multilingual interface
Structure
- Seven masts, 4500 to 7500 mm, free lift to 2300 mm
- German-import mast profile and guided mast structure with a new roof-guard frame
- Width across guide rolls 1550 mm; 1600 mm aisle for a 1000 x 1200 pallet crossways
- 6.5 kW drive and 8.2 kW lift motor, EPS with automatic wheel return
Price and delivery

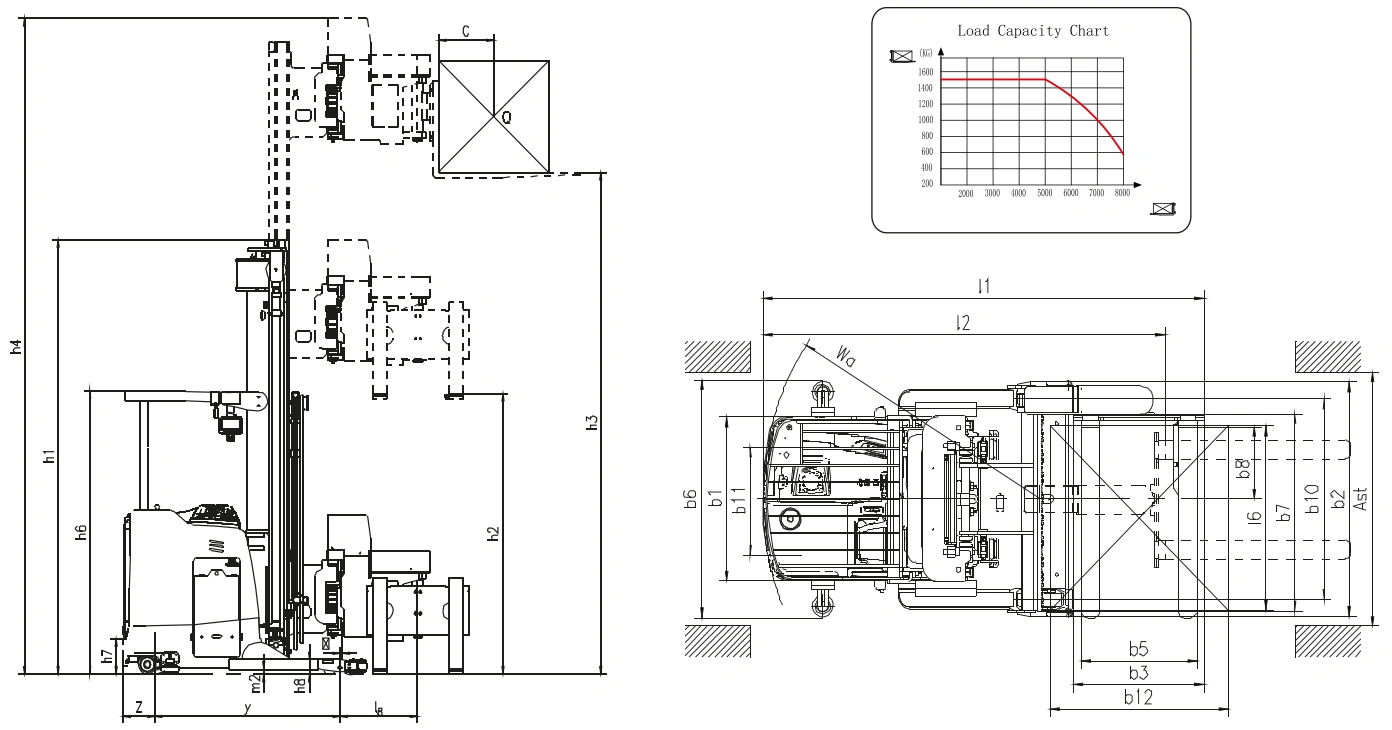

Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
Attributes
| Load capacity (Q) | 1500 kg |
|---|---|
| Lift height | 4500-7500 mm (7 masts) |
| Operator type | Seated |
| Battery | 48 V / 450 Ah |
| Width across guide rolls (b6) | 1550 mm |
| Lateral reach (b7) | 1290 mm |
| Fork dimensions (s/e/l) | 45/125/1200 mm |
| Travel speed | 8/8.5 km/h laden/unladen |
| Motors | Drive 6.5 kW, Lift 8.2 kW |
| Aisle width, 1000x1200 crossways (Ast) | 1600 mm |
| Naming Pending | True |
