Four-Way Hand Pallet Truck (RPV2500CS) 2500 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Long loads and narrow aisles are a bad combination for a normal pallet truck — there is simply no room to swing the load around. The four-way truck solves it mechanically: raise the forks to 180 mm, turn the tiller by 90 degrees and the chassis rolls on its traverse wheels, moving pipes, profiles or timber sideways down a corridor that is barely wider than the load itself.
Traverse travel
- Sideways movement engages once the forks reach 180 mm and the tiller is turned 90 degrees
- 2500 kg lifting capacity, 1500 kg while travelling in traverse mode
- Dedicated ø65x60 mm traverse wheels next to the ø80x70 mm fork rollers
- Switching direction takes seconds and needs no tools
Made for long loads
- Pipes, bars, profiles, panels and timber packs in racking aisles
- Metal service centres and joineries where stock is longer than the aisle is wide
- Buildings with tight corners, doorways and lift lobbies that a turning load cannot clear
Chassis and options
Two wheel packages are available: ø200 mm steering wheels give an 85 mm lowered fork height, ø180 mm wheels give 75 mm. Forks are 1150 or 1220 mm long and the overall fork width can be 520, 550 or 685 mm, so the truck matches EUR, industrial and half pallets. The second figure in every pair of dimensions belongs to the smaller wheel or the longer fork.
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity (Q) | 2500 kg, 1500 kg in traverse mode |
|---|---|
| Traverse travel | Engaged at 180 mm fork height, tiller turned 90° |

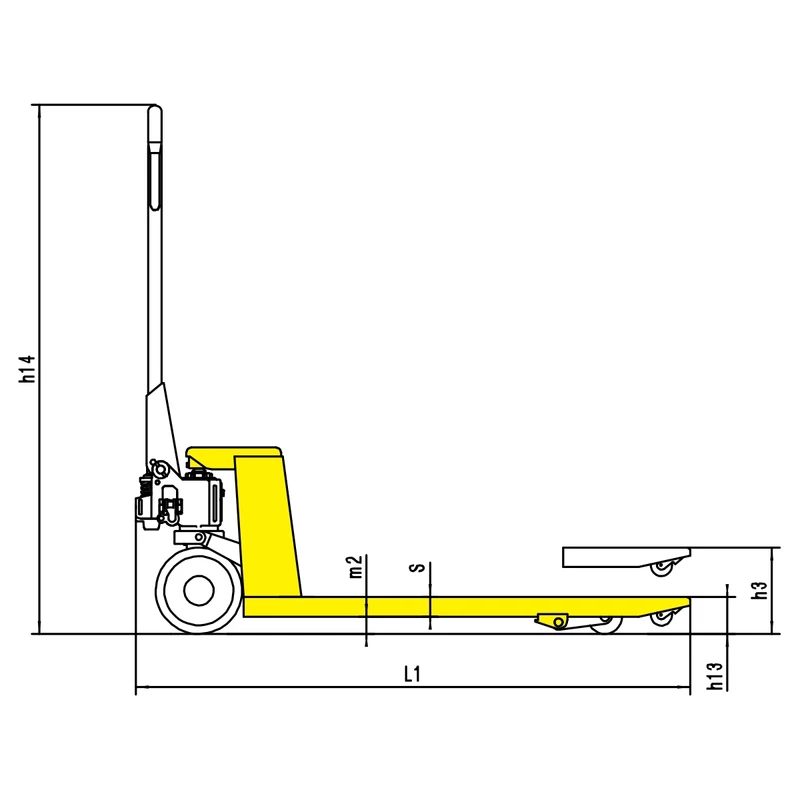

| Lowered fork height (h13) | 85 mm, 75 mm |
| Max. lift height (h3) | 200 mm, 190 mm |
| Total height (h14) | 1224 mm, 1214 mm |
| Fork length (l) | 1150 mm, 1220 mm |
| Width overall forks (b5) | 520 mm, 550 mm, 685 mm |
| Overall length (l1) | 1533 mm, 1603 mm |
| Steering wheels | ø200 mm, ø180 mm |
| Fork wheels | ø80x70 mm, ø74x70 mm |
| Traverse wheels | ø65x60 mm |
| Ground clearance, centre of wheelbase (m2) | 40 mm, 30 mm |

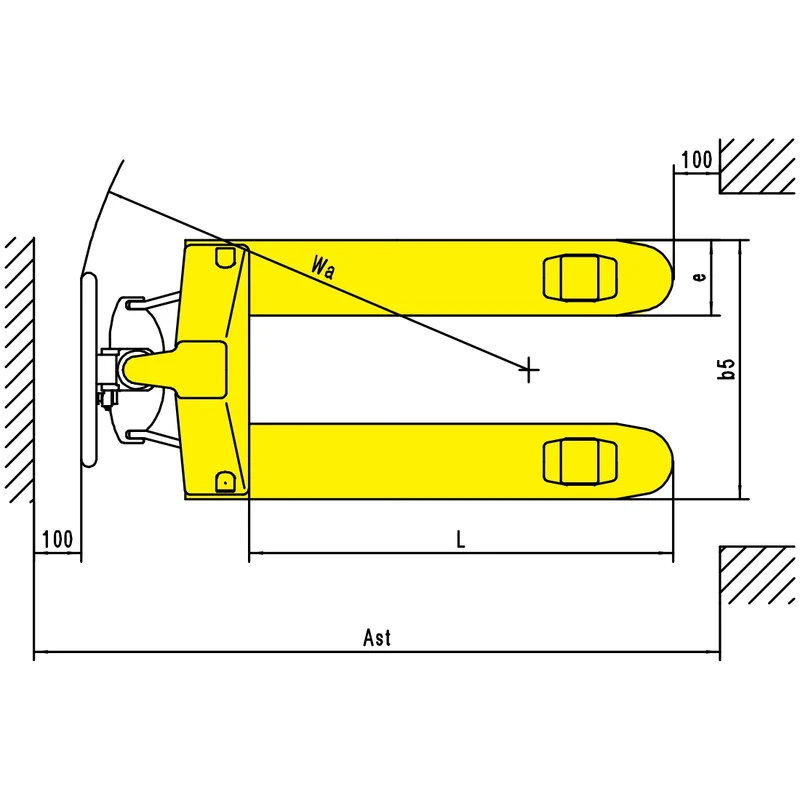

| Aisle width, pallet 1000x1200 crossways (Ast) | 1733 mm, 1803 mm |
| Aisle width, pallet 800x1200 lengthways (Ast) | 1783 mm, 1803 mm |
| Turning radius (Wa) | 1266 mm, 1336 mm |
| Service weight | 65-85 kg |
