Mechanical Assist Pallet Truck (RPVM2500) 2500 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The mechanical assist pallet truck moves a full 2500 kg pallet with around 90% less pulling effort than an ordinary hand pallet truck. Instead of dragging the load, the operator pumps the tiller: a mechanical power-assist drive in the chassis turns each stroke into forward travel, so the truck walks the pallet along. There is no battery, no charger and no electronics to look after — the help comes purely from the mechanism, which keeps servicing as simple as on a standard manual truck.
Key features
- Mechanical power-assist drive — around 90% less pull force with a full load compared with a conventional truck
- Reverse brake function stops the truck sliding backwards on a slope
- 2500 kg capacity with a 200 mm maximum lift height (190 mm on the ø180 mm wheel version)
- Fork lengths of 1100, 1150 or 1220 mm in 520, 550 or 685 mm overall width
- Service weight of only 65-77 kg, in line with a conventional manual pallet truck
Where it pays off
- Long runs across large warehouses, where repeated full-load pulls wear the operator down
- Ramps and sloping loading bays, thanks to the reverse brake
- Areas where charging an electric truck is impractical, such as cold stores or food and pharmaceutical production
- Workplace safety programmes that target lower push and pull forces for staff
How it is operated
- Lift the forks and leave the tiller in the neutral position.
- Pull the power-assist lever on the left of the tiller down to its bottom position.
- Pump the tiller — every stroke drives the truck forward, so even a loaded pallet is easy to set in motion.
Configuration
Two chassis versions are available: ø200 mm steering wheels with an 85 mm lowered fork height, 200 mm lift and 40 mm ground clearance, or ø180 mm steering wheels with a 75 mm lowered fork height, 190 mm lift and 30 mm ground clearance. Fork rollers are supplied single (ø80x93 or ø74x93 mm) or tandem (ø80x70 or ø74x70 mm).
Order online or send a quote request for delivery terms and customer-specific configurations.

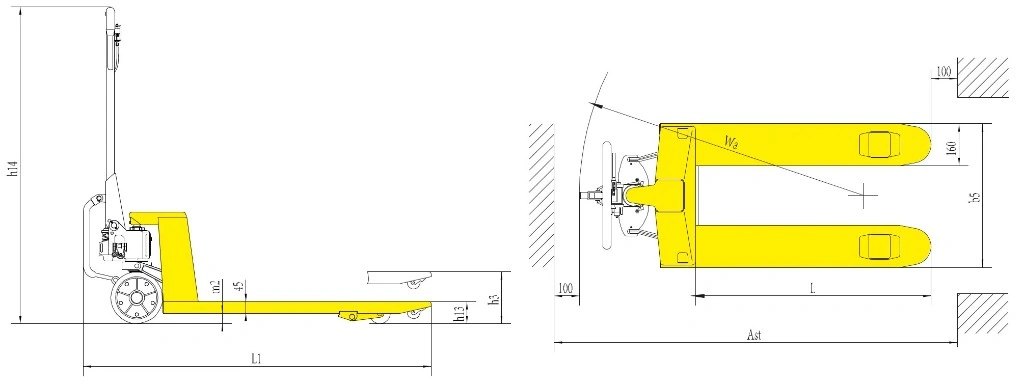

Attributes
| Load capacity (Q) | 2500 kg |
|---|---|
| Travel assist | Mechanical power-assist drive (no battery) |
| Lowered fork height (h13) | 85 mm, 75 mm |
| Max. lift height (h3) | 200 mm, 190 mm |
| Handle height (h14) | 1224 mm, 1214 mm |
| Fork length (l) | 1100 mm, 1150 mm, 1220 mm |
| Width overall forks (b5) | 520 mm, 550 mm, 685 mm |
| Fork width | 160 mm |
| Overall length (l1) | 1483 mm, 1533 mm, 1603 mm |
| Steering wheels | ø200 mm, ø180 mm |
| Fork rollers, single | ø80x93 mm, ø74x93 mm |
| Fork rollers, tandem | ø80x70 mm, ø74x70 mm |
| Ground clearance, centre of wheelbase (m2) | 40 mm, 30 mm |
| Aisle width, pallet 1000x1200 crossways (Ast) | 1683 mm, 1733 mm, 1803 mm |
| Aisle width, pallet 800x1200 lengthways (Ast) | 1783 mm, 1803 mm |
| Turning radius (Wa) | 1216 mm, 1266 mm, 1336 mm |
| Service weight | 65-77 kg |
