Aluminum Pillar Jib Crane (ASDS) 270° 63-2000 kg 2-8 m

Name: Aluminum Pillar Jib Crane (ASDS) 270° 63-2000 kg 2-8 m
Brand: Delacco
SKU: ASDS
Availability: InStock

SKU root: ASDS | Market: EN | Locale: en

Price Configure your crane below — live price, weight and shipping update as you choose.

Brochure (PDF)

Categories: Pillar Jib Cranes

Volume pricing — save up to 12% Discount is calculated automatically on the cart subtotal.

Quantity	Discount
1 unit	—
2	−3%
3–4	−5%
5–9	−8%
10+	−12%

+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.

Configure your crane

Select capacity, span and options. Price, weight and shipping update live.

1 Max capacity — kg

2 Span — m

Height under beam (HSF)

Standard height under beam = 2.5 m. Adjustable in 0.1 m steps up to 4 m; each extra 0.1 m is priced per model. Above 4 m: consult us.

Floor fixation

We strongly recommend one of our anchoring kits; we cannot be held liable for any other attachment system. The cast-in template + anchor rods are embedded in a new concrete foundation; the splitable base plate bolts onto an existing slab of sufficient depth via a chemical-anchor kit.

Chain hoist

The crane already includes an integrated manual push hoist trolley. Add a manual or electric chain hoist to the quote, or supply your own. The hoist must be operated strictly within the crane's rated SWL.

Manual hoist capacity

Manual hoist lift

GIS GP electric chain hoist

Electric chain hoist — configuration

Every option in this panel belongs to the GIS GP electric chain hoist bundled with your jib crane. It is produced and invoiced as a separate item; the jib-crane options stay outside this panel.

Electric hoist — intensity of use

How will you use the electric hoist?

Each duty class has its own capacity envelope: the heavier the use, the lower the rated weight, so a heavier class may pull a larger GP sub-model. Selecting a class lighter than your real-world use voids the manufacturer warranty and risks motor failure.

GIS GP electric hoist capacity

GIS GP electric hoist lift height

Rotation locking

Mechanical lock to fix the boom in a position.

Hoist power supply (feeding line)

The COMEGYSTEME hollow profile has the power feed built in: cable trolleys and the hoist power-supply cable are included in the base price — also when you mount your own electric chain hoist.

Additional hoist trolley

The crane already ships with one integrated manual push hoist trolley. Add a second aluminium-rail trolley (e.g. to carry a second hoist or a load-positioning accessory).

Rotation stops (270°)

Adjustable, repositionable mechanical end stops that limit the boom's 270° swing, priced by the mounting offset (cote a). Weld-on stops are not available on the aluminium profile.

Rotation slowing device

Damper to slow boom swing — installs without welding.

Lockable main switch

20A lockable main switch under enclosure (price TBD pending Comege catalog page).

Paint system

Standard finish is 60 µm C2 polyester powder — RAL 1028 yellow pillar with RAL 9006 grey arm. A specific RAL colour is available. This crane is for indoor use only (no C3 outdoor system).

Packaging

Standard packing is shrink film for road transport. Wooden support is required for sea freight.

Structural calculation note

Optional engineering document (note de calcul) certifying the structural reactions of your specific configuration. Required by some inspectors and insurers when commissioning the crane.

Delivery option

Express options shorten production by 1 or 2 weeks at a price premium.

Configuration —

Net price —

Quantity

Volume pricing — save up to 12 %

Quantity	Discount

Bundle promo: extra 3 % off when this order combines items from at least two product categories (e.g. a hoist + a jib crane).

Price breakdown

Net total (excl. VAT)	—

Estimated weight —
Lead time —
Mounting kit level —

Shipping estimate

Delivery country

—

Enter your delivery country above to see an indicative freight estimate.

Request quote

Share your project details and we will get back with a tailored quote.

Full name

Phone

Company

Estimated quantity

Project details

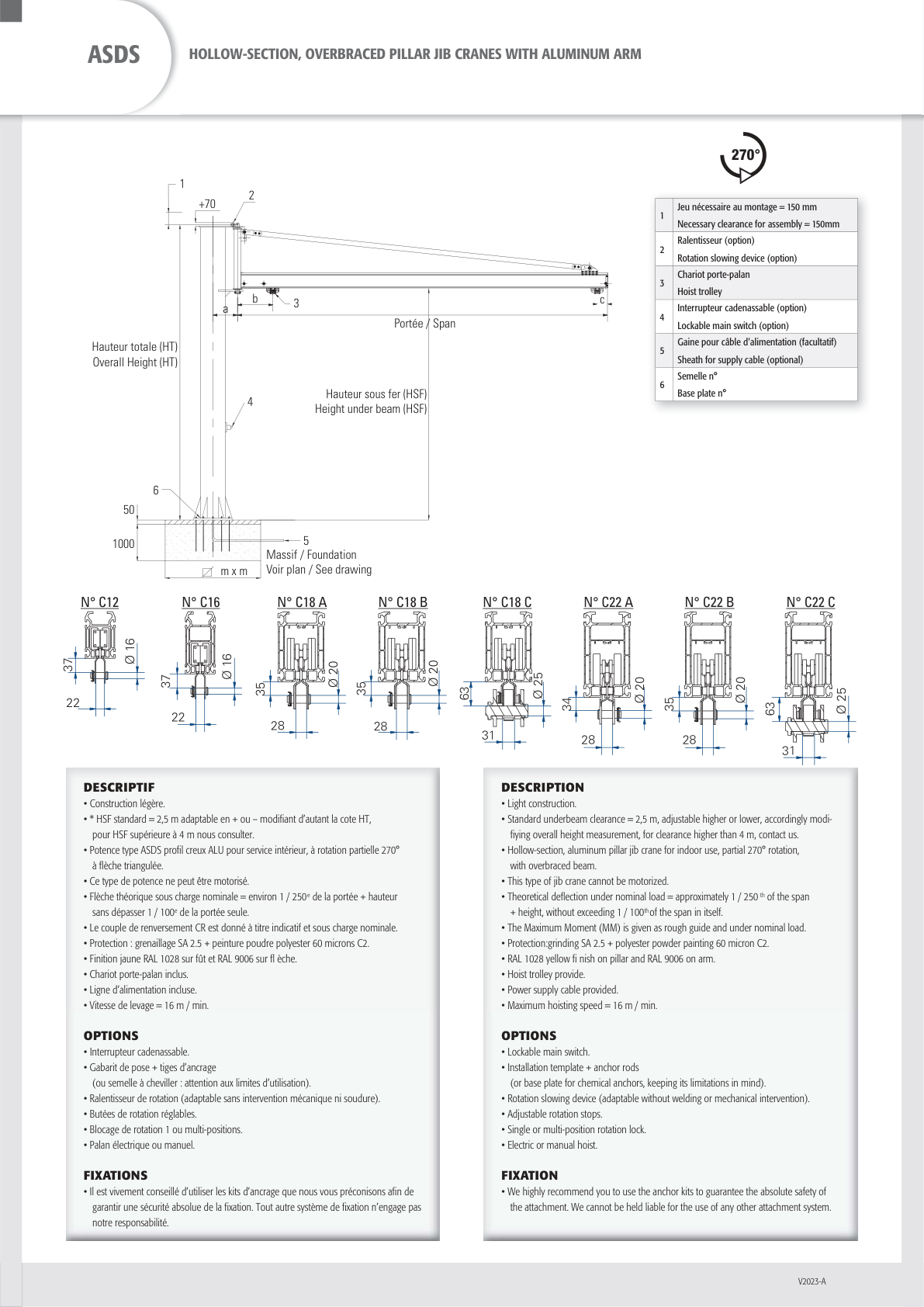

The ASDS (Comege PFTC ALU) is a 270° partial-rotation aluminium pillar jib crane with an overbraced COMEGYSTEME hollow-section boom. A manual push hoist trolley is integrated into the profiled beam and included in the price. It is a lightweight, indoor, manual-slewing crane for fast, low-effort load positioning at a workstation.

Key features

270° partial rotation on a floor-anchored pillar with an overbraced aluminium COMEGYSTEME hollow-section boom
Integrated manual push hoist trolley, cable pads and power cable are included in the price
Capacity 63-2000 kg; spans 2-8 m; standard height under beam 2.5 m, adjustable in 0.1 m steps up to 4 m (above 4 m on request)
Indoor use only; manual slewing only — this crane type cannot be motorized
Floor fixation by cast-in installation template + anchor rods, or a bolt-down splitable base plate with a chemical-anchor kit
Manual or GP electric chain hoist can be added in the configurator and bundled into the quote; an optional second hoist trolley is available
Grinding SA 2.5 + 60 µm C2 polyester powder paint, RAL 1028 yellow pillar and RAL 9006 grey arm
Complies with the Machinery Directive 2006/42/EC

Technical overview

Model / SKU: ASDS (Comege PFTC ALU)
Product family: Pillar Jib Cranes
Load capacity: 63 / 80 / 125 / 160 / 250 / 320 / 500 / 630 / 1000 / 1200 / 1600 / 2000 kg
Span: 2-8 m (0.5 m increments)
Rotation: 270° partial rotation (manual)
Boom: aluminium COMEGYSTEME hollow section (overbraced)
Height under beam: 2.5 m standard, adjustable to 4 m
Service: indoor use only
Finish: RAL 1028 yellow pillar / RAL 9006 grey arm (C2 indoor)

Configure capacity, span, height under beam, fixation, hoist and finish, then add the product to the quote list for delivery terms and customer-specific configurations.

Attributes

Load capacity	63 kg, 80 kg, 125 kg, 160 kg, 250 kg, 320 kg, 500 kg, 630 kg, 1000 kg, 1200 kg, 1600 kg, 2000 kg
Span	2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m
Rotation	270° partial rotation
Brand	DELACCO
Comege Model	PFTC ALU
Compliance	{"machinery_directive": "2006/42/EC"}

Capacity [kg]	Spans [m]	Base price [€]
63	2-8	2 389-3 687
80	2-8	2 389-4 041
125	2-8	2 389-4 557
160	2-8	2 387-4 557
250	2-8	2 391-5 928
320	2-8	2 544-6 250
500	2-8	2 722-6 716
630	2-8	3 107-7 604
1000	2-7	3 621-8 602
1200	2-6	3 786-8 123
1600	2-5	4 622-8 101
2000	2-4.5	4 984-7 891

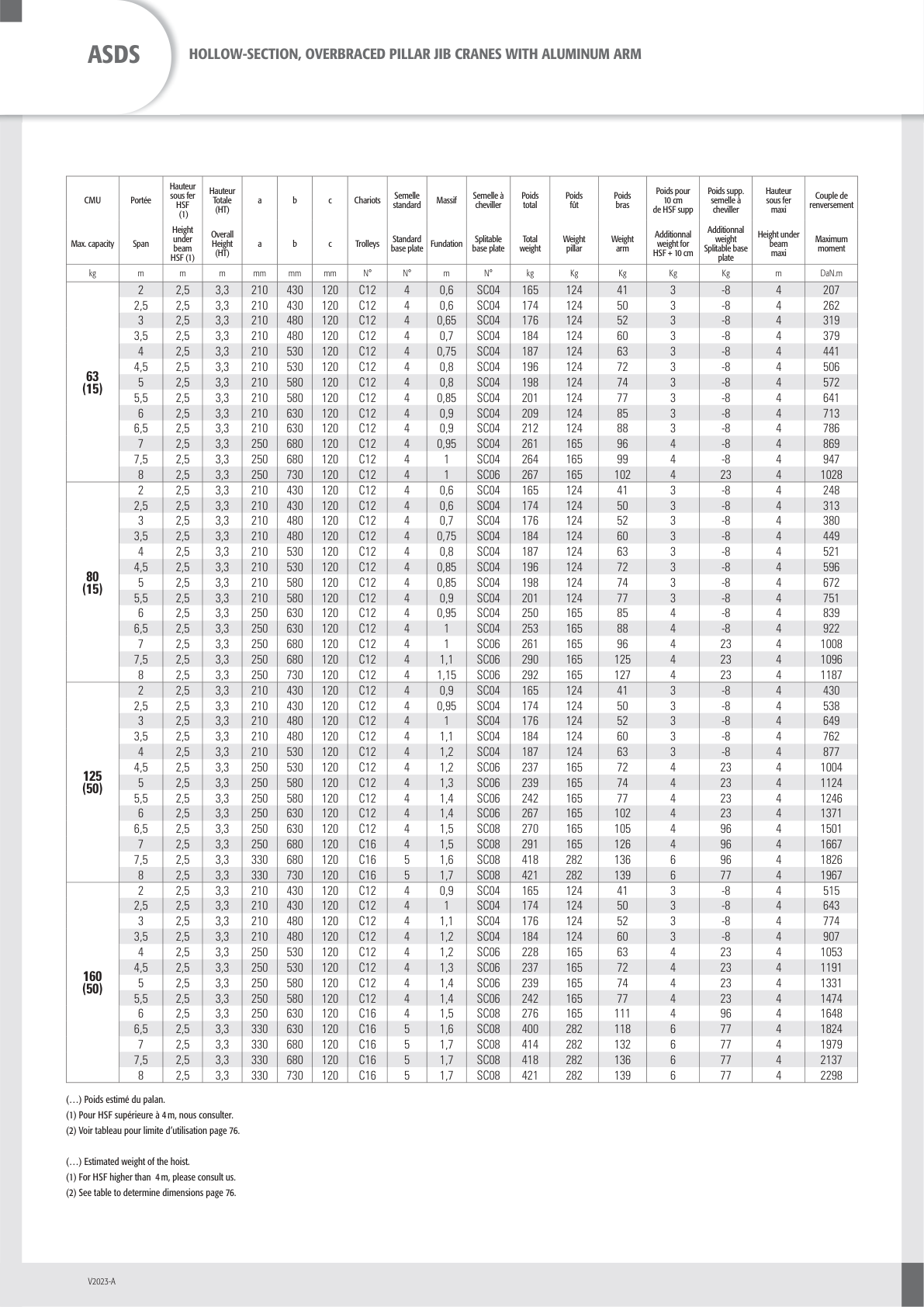

Base price is for the standard 2.5 m height under beam and includes the integrated manual push hoist trolley; each extra 0.1 m of height, fixation, hoist and finish are priced in the configurator. This aluminium crane is indoor-only, manual-slewing (270°, overbraced boom) and cannot be motorized. Per-span dimensions, weights and reactions follow the V2023-A datasheet.
