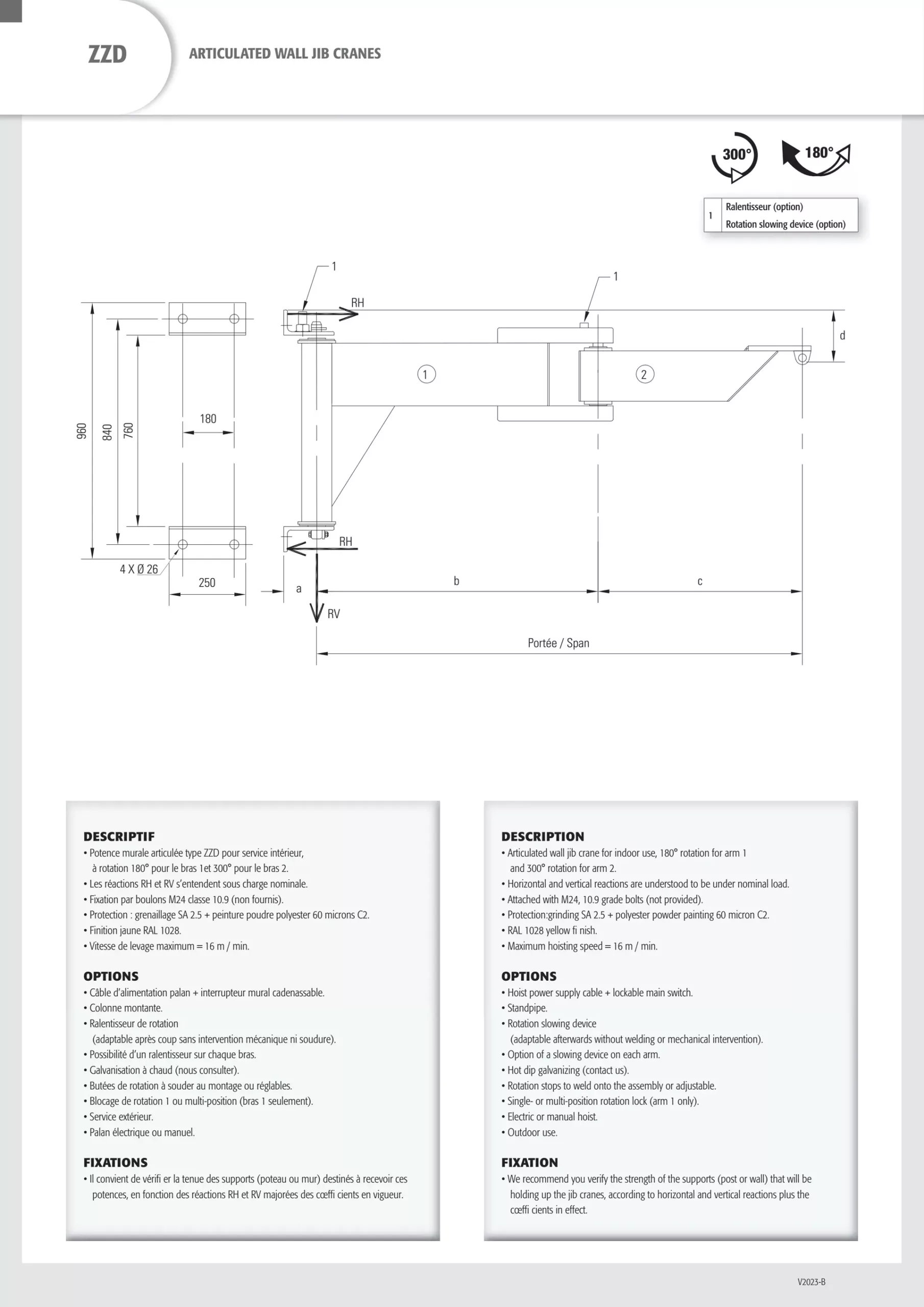

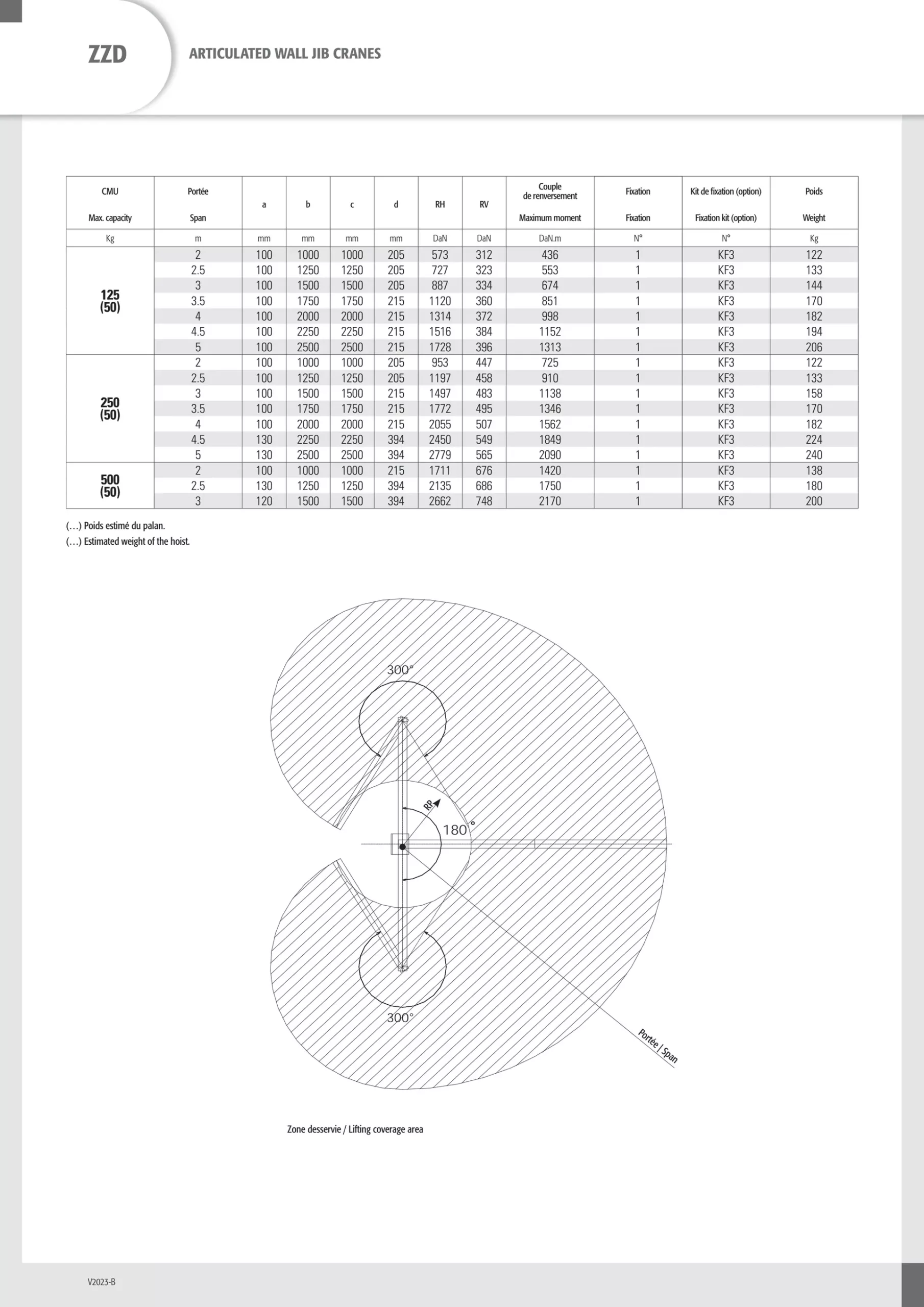

Articulated Wall Jib Crane (ZZD) 125-500 kg 2-5 m

1 Max capacity — kg

125 250 500

2 Span — m

2 2.5 3 3.5 4 4.5 5

Mounting kit

Auto-suggested KF level depends on capacity and span. Type A = belts on IPE/HEA/HEB or concrete post. Type C = clamps on IPE/HEA/HEB. FCM = wall mount with chemical anchors.

Chain hoist

Add a chain hoist to the crane, or supply your own.

Manual hoist capacity

Pick the RLD model. Only models that match the crane SWL are shown.

Manual hoist lift

Load chain length (hand chain is always 1 m shorter).

Rotation locking

Mechanical lock to fix the boom in a position.

Rotation stops

Hard stops limiting boom rotation. Adjustable price depends on a-dimension.

Rotation slowing device

Damper to slow boom swing — installs without welding.

Lockable main switch

20A lockable main switch under enclosure (price TBD pending Comege catalog page).

Standpipe (3 m)

3 m standpipe to host the main switch (price TBD).

Power cable in tube

Hoist power-supply cable routed inside a protective tube (PMA / PMAM only).

Paint system

Standard finish is 60µm C2 polyester powder, RAL 1028 yellow (included).

Sealing of the axis

Sealing of the rotation axis for outdoor / harsh-environment service.

Packaging

Standard packing is shrink film for road transport. Wooden support is required for sea freight.

Structural calculation note

Optional engineering document (note de calcul) certifying the structural reactions of your specific configuration. Required by some inspectors and insurers when commissioning the crane.
