Electric Seated Pallet Truck (EPV20SD/EPV25SD) 2000-2500 kg
Price
12.240,00 EUR
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Seated electric pallet truck with 2000-2500 kg capacity, electric power steering, intelligent regenerative plus electromagnetic braking and a roll-out side battery — for medium distances in large warehouses.
Key features
- Seated operation for medium-distance transport
- Advanced AC control with speed frequency regulation
- Electric power steering (EPS) system
- Electromagnetic plus intelligent regenerative braking
- Roll-out side battery is easy to handle
- Precisely adjustable connecting rod resists bending
- Guiding wheel on the fork head eases pallet work

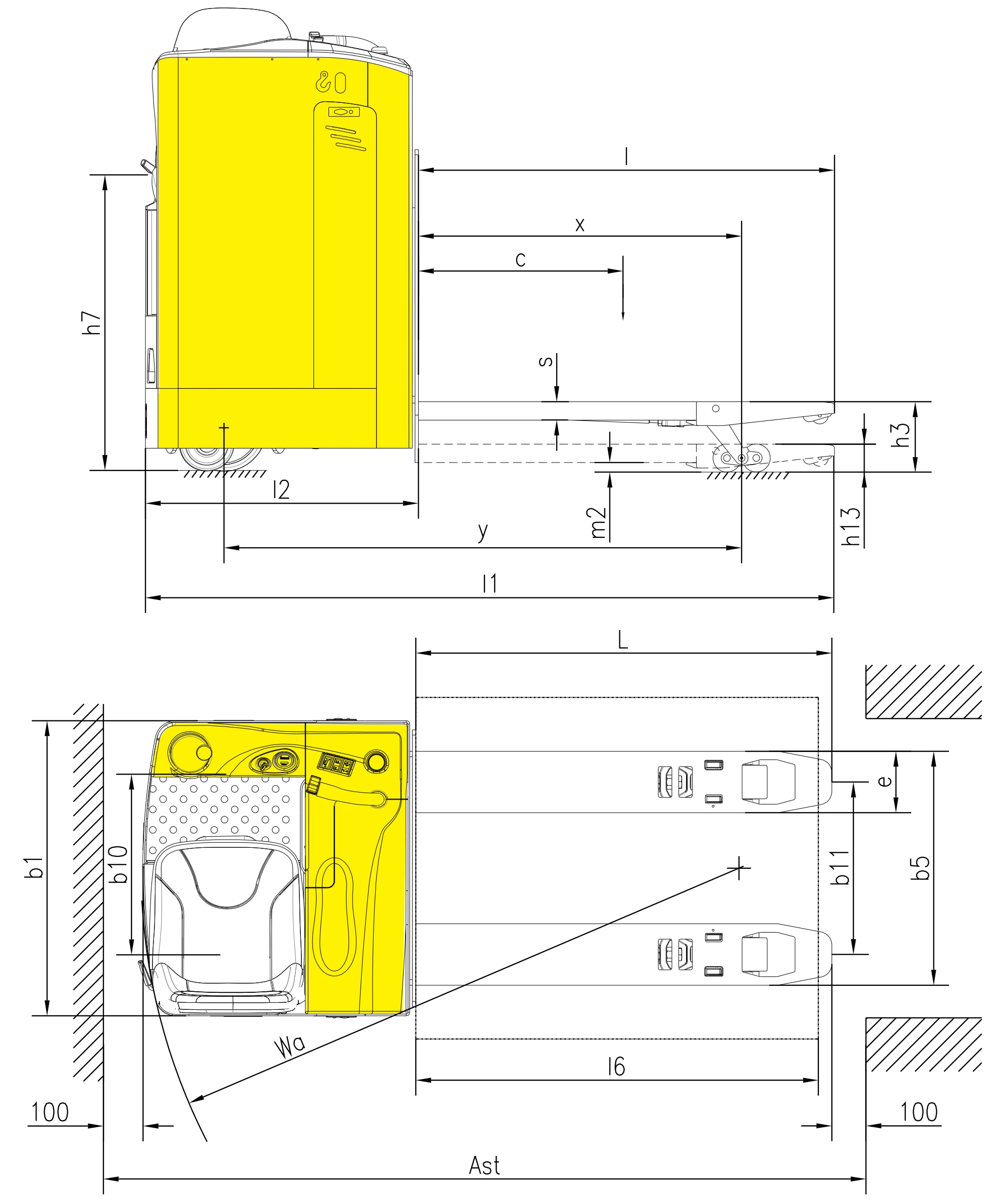

Technical overview
- Model / SKU: EPV20SD_EPV25SD
- Product family: Electric Pallet Trucks
- Operate type: seated
- Load capacity: 2000 kg, 2500 kg
- Engine type: AC
- Load center: 600 mm
- Load distance, center of drive axle to fork: 914/964/1034mm
- Fork height, lowered: 82 mm
- Tyre size, front: 250x80mm
- Tyre size, rear: 82x98mm
- Additional wheels (dimensions): 160x55mm
- Number of wheels, front/rear (x=driving) Φ: 1X+1/4
- Max. lift height: 202 mm
- Seat height / stand height: 900 mm
- Overall length: 1900/1950/2020mm
- Length to face of forks: 800 mm
- Overall width: 864 mm
- Fork dimensions: 54x180x1100mm (1150/1220)
- Width overall forks: 520/550/650/685mm
- Aisle width for pallets 1000x1200mm: 2465/2505/2565mm
- Aisle width for pallets 800x1200mm: 2385/2400/2430mm
- Turning radius: 1630/1680/1750mm
- Travel speed, laden/unladen: 7.5/8.0km/h
- Initial lift: no
- Folding platform: seated
- Electric power steering: yes
- Battery type/voltage/capacity: LA/24/270, LA/24/300
- Battery weight: 264 kg, 270 kg
- Service weight (with battery): 900 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Operate type | seated |
|---|---|
| Load capacity | 2000 kg, 2500 kg |
| Engine type | AC |
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 914/964/1034mm |
| Fork height, lowered | 82 mm |
| Tyre size, front | 250x80mm |
| Tyre size, rear | 82x98mm |
| Additional wheels (dimensions) | 160x55mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+1/4 |
| Max. lift height | 202 mm |
| Seat height / stand height | 900 mm |
| Overall length | 1900/1950/2020mm |
| Length to face of forks | 800 mm |
| Overall width | 864 mm |
| Fork dimensions | 54x180x1100mm (1150/1220) |
| Width overall forks | 520/550/650/685mm |
| Aisle width for pallets 1000x1200mm | 2465/2505/2565mm |
| Aisle width for pallets 800x1200mm | 2385/2400/2430mm |
| Turning radius | 1630/1680/1750mm |
| Travel speed, laden/unladen | 7.5/8.0km/h |
| Initial lift | no |
| Folding platform | seated |
| Electric power steering | yes |
| Battery type/voltage/capacity | LA/24/270, LA/24/300 |
| Battery weight | 264 kg, 270 kg |
| Service weight (with battery) | 900 kg |
