Electric Stacker with Initial Lift (EVV15-I) 1500 kg 2500-5600 mm
Price
From 11.040,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Stackers with Initial Lift
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Electric pallet stacker with initial lift, 1500 kg rated capacity (2000 kg in double-pallet transport) and mast options up to 5600 mm, designed for intensive stocking in medium-height warehouses.
Key features
- Initial lift raises the load legs — 2000 kg in double-pallet transport
- Handles two pallets simultaneously thanks to the double-pallet design
- Increased ground clearance for ramps, dock levelers and bridge plates
- Four-point support structure with side tiller and low centre of gravity
- Brushless AC motor with effective electromagnetic parking brake
- Free-lift mast with two side cylinders offers a wide operator view
- Vertical driving wheel: small turning radius, dust- and water-proof motor
Technical overview
- Model / SKU: EVV15-I
- Product family: Electric Stackers with Initial Lift
- Load capacity: 1500 kg
- Engine type: AC
- Load center: 600 mm
- Load distance: 697 mm
- Tyre size, front: 250x70mm
- Tyre size, rear: 80x70mm
- Additional wheels (dimensions): 150x60mm
- Number of wheels, front/rear (x=driving) Φ: 1X+1/4
- Height, mast lowered: 1757 mm, 2007 mm, 2022 mm, 2157 mm, 2182 mm, 2257 mm, 2382 mm
- Free lift: 1300 mm, 1550 mm, 1700 mm, 1800 mm, 1570 mm, 1740 mm, 1940 mm
- Max. lift height: 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm
- Initial lift: yes
- Overall length: 1982 mm
- Length to face of forks: 878 mm
- Overall width: 820 mm
- Fork dimensions: 60x180x1070mm (1150)
- Width overall forks: 570/650mm

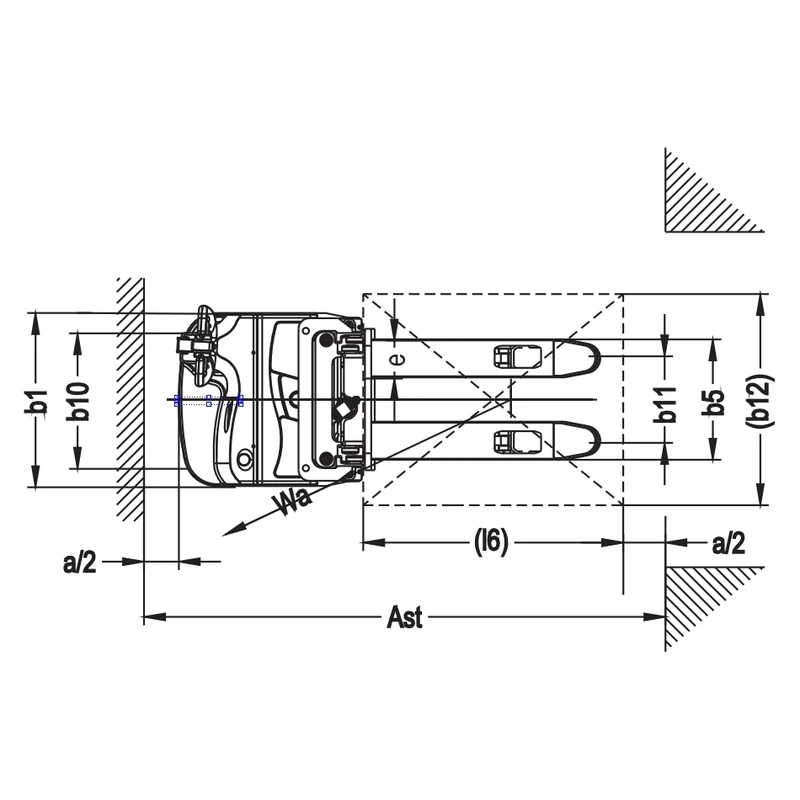

- Aisle width for pallets 800x1200mm: 2500 mm
- Turning radius: 1575 mm
- Travel speed, laden/unladen: 5.8/6km/h
- Lifting speed laden/unladen: 0.11/0.16m/s
- Lowering speed laden/unladen: 0.12/0.12m/s
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LA/24/240, LFP/24/125, LFP/24/225
- Battery weight: 220 kg
- Battery dimensions (I/W/H): 675x254x500mm
- Service weight (with battery): 1205 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Max. lift height | 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm |
|---|---|
| Battery type/voltage/capacity | 24v-125ah, 24v-225ah, 24v-240ah |
| Load capacity | 1500 kg |
| Engine type | AC |
| Load center | 600 mm |
| Load distance | 697 mm |
| Tyre size, front | 250x70mm |
| Tyre size, rear | 80x70mm |
| Additional wheels (dimensions) | 150x60mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+1/4 |
| Height, mast lowered | 1757 mm, 2007 mm, 2022 mm, 2157 mm, 2182 mm, 2257 mm, 2382 mm |
| Free lift | 1300 mm, 1550 mm, 1700 mm, 1800 mm, 1570 mm, 1740 mm, 1940 mm |
| Initial lift | yes |
| Overall length | 1982 mm |
| Length to face of forks | 878 mm |
| Overall width | 820 mm |
| Fork dimensions | 60x180x1070mm (1150) |
| Width overall forks | 570/650mm |
| Aisle width for pallets 800x1200mm | 2500 mm |
| Turning radius | 1575 mm |
| Travel speed, laden/unladen | 5.8/6km/h |
| Lifting speed laden/unladen | 0.11/0.16m/s |
| Lowering speed laden/unladen | 0.12/0.12m/s |
| Folding platform | no |
| Electric power steering | no |
| Battery weight | 220 kg |
| Battery dimensions (I/W/H) | 675x254x500mm |
| Service weight (with battery) | 1205 kg |
