Counterbalanced Electric Stacker (EVVP15H/EVVP05H) 1500 kg 2500-5600 mm
Price
From 11.420,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Counterbalanced Electric Stackers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.

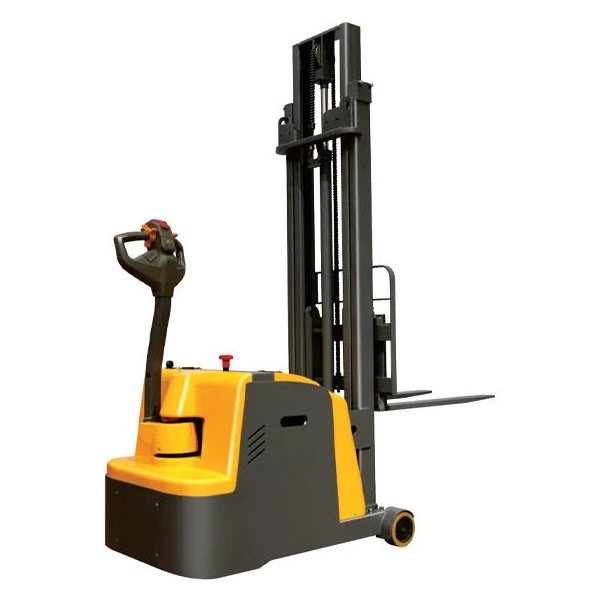

Counterbalanced electric stacker without straddle legs, 1500 kg capacity and 2500-5600 mm lift height, AC traction motor with regenerative braking, tilting forks and German special-steel mast.
Key features
- Counterbalanced design without straddle legs — works with any pallet type
- Two lifting cylinders placed on the outer sides of the mast
- Mast made of special steel imported from Germany
- AC frequency-conversion traction motor with regenerative braking
- Tilting forks make loading and stacking easy
- Combined magnetic and regenerative braking extends friction-plate life
- Multi-valve regulating lever, emergency stop switch and electrical lock
- Adjustable regulator valve controls mast lowering speed
- Magnet-suction battery cover for simple installation and upkeep

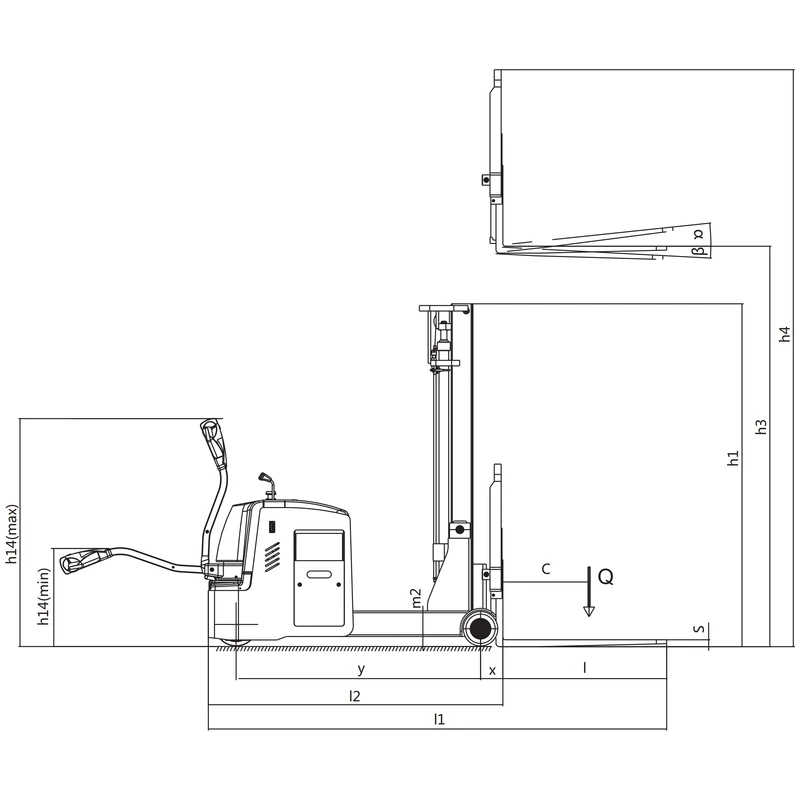

Technical overview
- Model / SKU: EVVP15H_EVVP05H
- Product family: Counterbalanced Electric Stackers
- Load capacity: 1500 kg

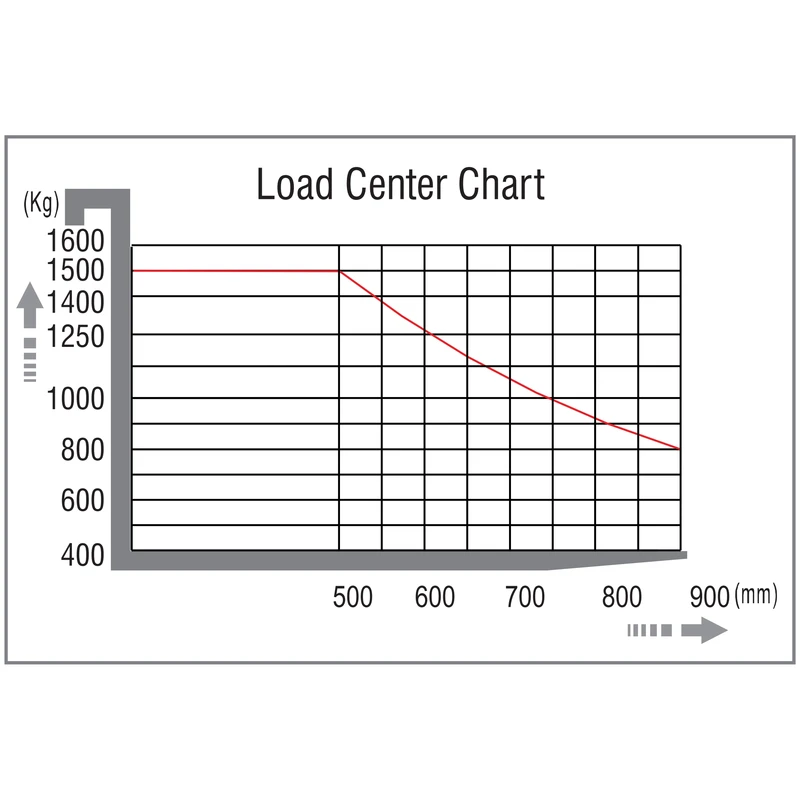

- Load center: 500 mm
- Load distance: 130 mm
- Tyre size, front: 250x70mm
- Tyre size, rear: 200x100mm
- Number of wheels, front/rear (x=driving) Φ: 1X/2
- Forks, tilt forward/back: 3°/6°
- Height, mast lowered: 1735 mm, 1895 mm, 1985 mm, 2085 mm, 2235 mm, 2435 mm
- Initial lift: no
- Free lift: 0 mm, 1400 mm, 1500 mm, 1670 mm, 1870 mm

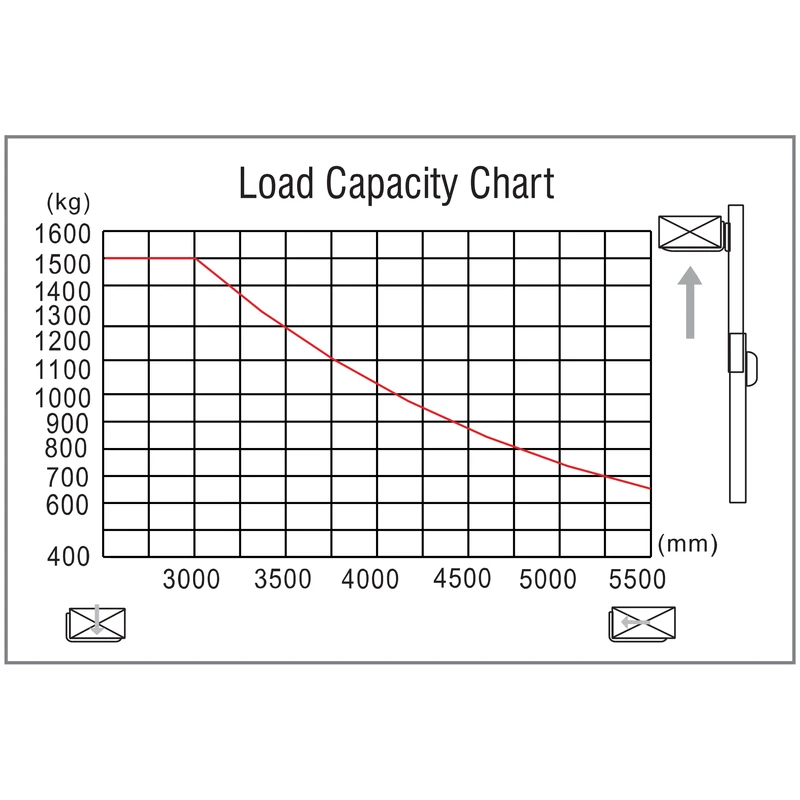

- Lift height: 2500 mm, 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5600 mm
- Height, mast extended: 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000 mm, 6600 mm
- Height of tiller min/max: 730/1360mm
- Overall length: 2650 mm
- Length to face of forks: 1700 mm
- Overall width: 990 mm
- Fork dimensions: 35x100x950mm (1070)
- Width overall forks: 220-680 mm

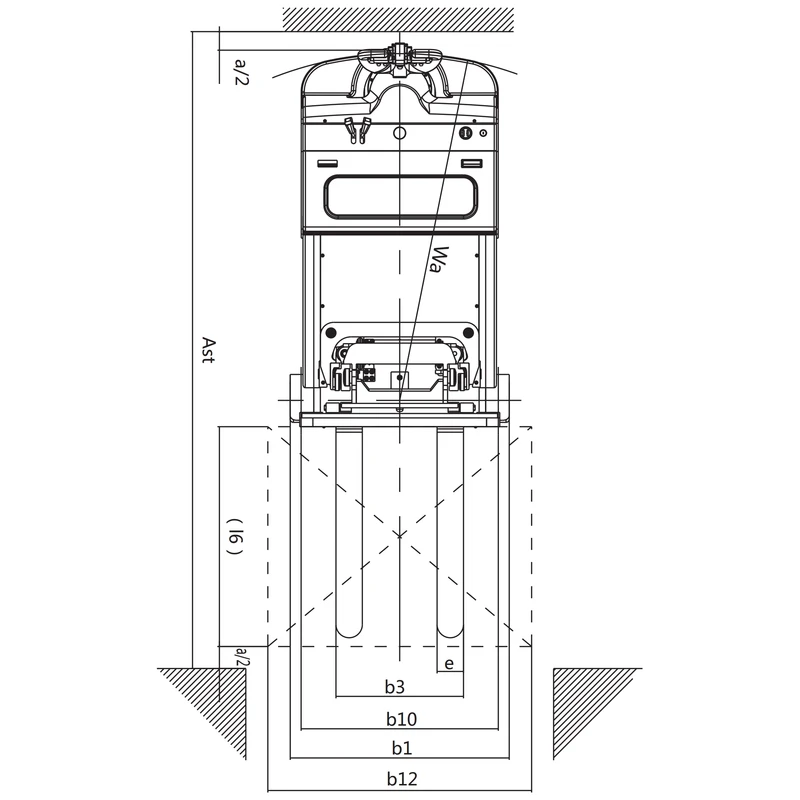

- Aisle width for pallets 800x1200mm: 3070 mm
- Turning radius: 1570 mm
- Engine type: AC
- Travel speed, laden/unladen: 5.8/6km/h
- Lifting speed laden/unladen: 0-0.12-0-0.16m/s
- Lowering speed laden/unladen: 0-0.45m/s
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LA/24/280, LFP/24/225
- Battery weight: 300-360 kg
- Battery dimensions (I/W/H): 812x270x535mm
- Service weight (with battery): 2080 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1500 kg |
|---|---|
| Lift height | 2500 mm, 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5600 mm |
| Battery type/voltage/capacity | 24v-225ah, 24v-280ah |
| Load center | 500 mm |
| Load distance | 130 mm |
| Tyre size, front | 250x70mm |
| Tyre size, rear | 200x100mm |
| Number of wheels, front/rear (x=driving) Φ | 1X/2 |
| Forks, tilt forward/back | 3°/6° |
| Height, mast lowered | 1735 mm, 1895 mm, 1985 mm, 2085 mm, 2235 mm, 2435 mm |
| Initial lift | no |
| Free lift | 0 mm, 1400 mm, 1500 mm, 1670 mm, 1870 mm |
| Height, mast extended | 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000 mm, 6600 mm |
| Height of tiller min/max | 730/1360mm |
| Overall length | 2650 mm |
| Length to face of forks | 1700 mm |
| Overall width | 990 mm |
| Fork dimensions | 35x100x950mm (1070) |
| Width overall forks | 220-680 mm |
| Aisle width for pallets 800x1200mm | 3070 mm |
| Turning radius | 1570 mm |
| Engine type | AC |
| Travel speed, laden/unladen | 5.8/6km/h |
| Lifting speed laden/unladen | 0-0.12-0-0.16m/s |
| Lowering speed laden/unladen | 0-0.45m/s |
| Folding platform | no |
| Electric power steering | no |
| Battery weight | 300-360 kg |
| Battery dimensions (I/W/H) | 812x270x535mm |
| Service weight (with battery) | 2080 kg |
