Electric Rider Pallet Stacker (EVV20-P) 2000 kg 2500-6500 mm
Price
From 10.490,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Full Electric Stackers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.

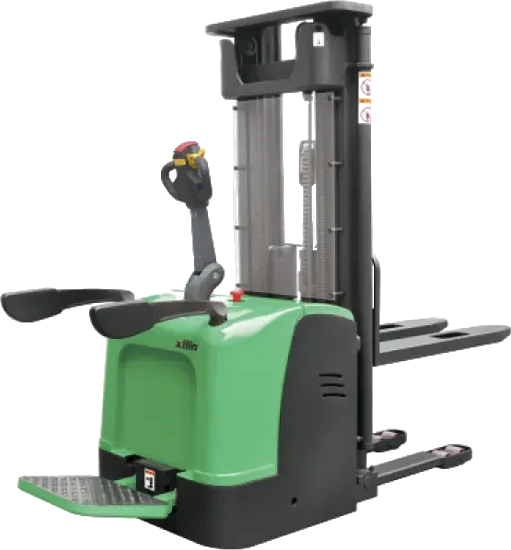

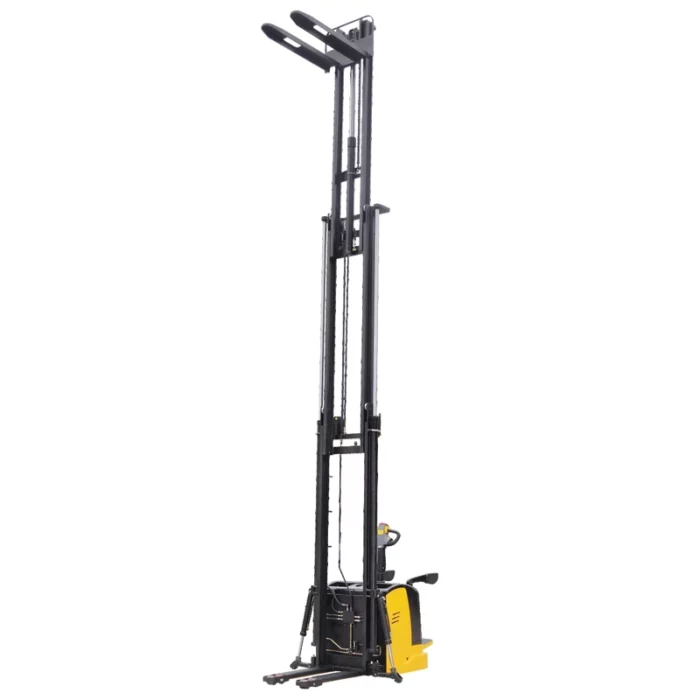

Heavy-duty electric rider pallet stacker with 2000 kg capacity and mast options up to 6500 mm, AC motor, multi-function BDI display and supporting legs on both sides of the triplex mast.
Key features
- Heavy-duty 2000 kg rider pallet stacker
- Brushless AC motor — no carbon brush replacement
- Multi-function display with BDI and hour meter
- Side-way battery is easy to maintain
- Supporting legs on both sides of the triplex mast (duplex mast without legs)
- Emergency reversing device, turtle low-speed switch and stepless speed control
- Low centre of gravity ensures stable operation

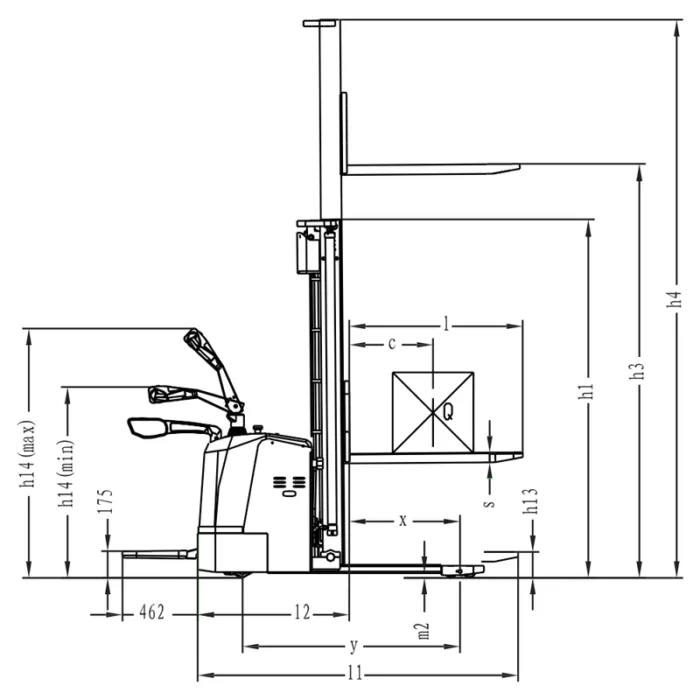

Technical overview
- Model / SKU: EVV20-P
- Product family: Full Electric Stackers
- Load capacity: 2000 kg
- Engine type: AC
- Load center: 500 mm, 600 mm
- Load distance: 672 mm
- Tyre size, front: 250x80mm
- Tyre size, rear: 80x84mm
- Additional wheels: Φ150×60mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/4
- Height, mast lowered: 1735 mm, 1985 mm, 2050 mm, 2135 mm, 2210 mm, 2235 mm, 2410 mm, 2710 mm
- Free lift: 1570 mm, 1740 mm, 1940 mm, 2240 mm
- Max. lift height: 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm, 6500 mm
- Initial lift: no
- Height, mast extended: 2955 mm, 3455 mm, 3755 mm, 3955 mm, 5030 mm, 5510 mm, 6110 mm
- Height of tiller min/max: 1150/1450mm
- Fork height, lowered: 90 mm
- Overall length: 2020/2100mm, 2100/2180mm
- Length to face of forks: 950 mm
- Overall width: 850 mm, 950 mm
- Fork dimensions: 60x180x1070mm (1150)
- Width overall forks: 570/695mm

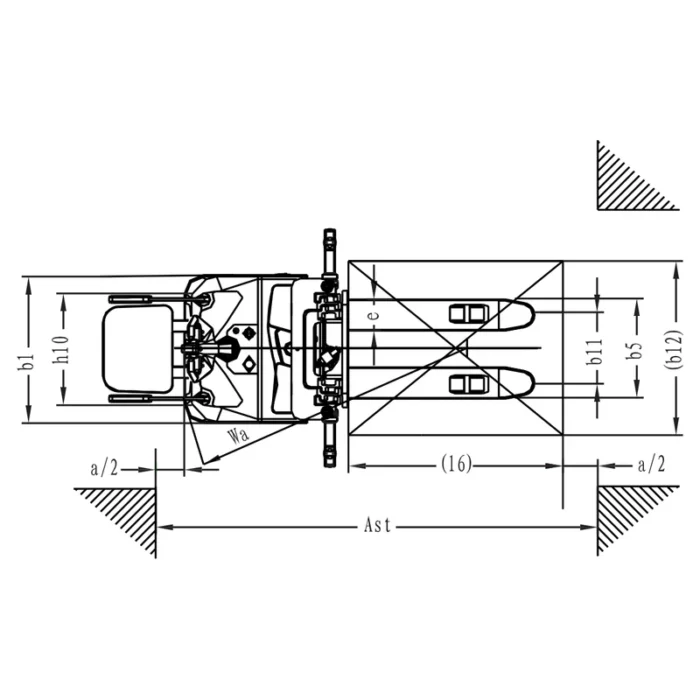

- Aisle width for pallets 800x1200mm: 2515 mm, 2595 mm
- Turning radius: 1655 mm, 1735 mm
- Travel speed, laden/unladen: 7.0/7.1km/h
- Lifting speed laden/unladen: 0.11/0.16m/s
- Lowering speed laden/unladen: 0.12/0.11m/s
- Folding platform: yes
- Electric power steering: yes
- Battery type/voltage/capacity: LA/24/300, LFP/24/225
- Battery weight: 300 kg
- Battery dimensions (I/W/H): 675x248x545mm
- Service weight (with battery): 1280 kg, 1320 kg, 1350 kg, 1640 kg, 1680 kg, 1720 kg, 1850 kg, 2020 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Max. lift height | 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4500 mm, 5000 mm, 5600 mm, 6500 mm |
|---|---|
| Battery type/voltage/capacity | 24v-225ah, 24v-300ah |
| Load capacity | 2000 kg |
| Engine type | AC |
| Load center | 500 mm, 600 mm |
| Load distance | 672 mm |
| Tyre size, front | 250x80mm |
| Tyre size, rear | 80x84mm |
| Additional wheels | Φ150×60mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/4 |
| Height, mast lowered | 1735 mm, 1985 mm, 2050 mm, 2135 mm, 2210 mm, 2235 mm, 2410 mm, 2710 mm |
| Free lift | 1570 mm, 1740 mm, 1940 mm, 2240 mm |
| Initial lift | no |
| Height, mast extended | 2955 mm, 3455 mm, 3755 mm, 3955 mm, 5030 mm, 5510 mm, 6110 mm |
| Height of tiller min/max | 1150/1450mm |
| Fork height, lowered | 90 mm |
| Overall length | 2020/2100mm, 2100/2180mm |
| Length to face of forks | 950 mm |
| Overall width | 850 mm, 950 mm |
| Fork dimensions | 60x180x1070mm (1150) |
| Width overall forks | 570/695mm |
| Aisle width for pallets 800x1200mm | 2515 mm, 2595 mm |
| Turning radius | 1655 mm, 1735 mm |
| Travel speed, laden/unladen | 7.0/7.1km/h |
| Lifting speed laden/unladen | 0.11/0.16m/s |
| Lowering speed laden/unladen | 0.12/0.11m/s |
| Folding platform | yes |
| Electric power steering | yes |
| Battery weight | 300 kg |
| Battery dimensions (I/W/H) | 675x248x545mm |
| Service weight (with battery) | 1280 kg, 1320 kg, 1350 kg, 1640 kg, 1680 kg, 1720 kg, 1850 kg, 2020 kg |
