Triple Scissor Lift Table (THS) 1000-5000 kg
Price
From 3.430,00 EUR
From 3.087,00 EUR
Sale
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
High-Lift Hydraulic Tables
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Triple scissor hydraulic lift table series with capacities from 1000 to 5000 kg and lift heights up to 5100 mm for high-level material feeding.

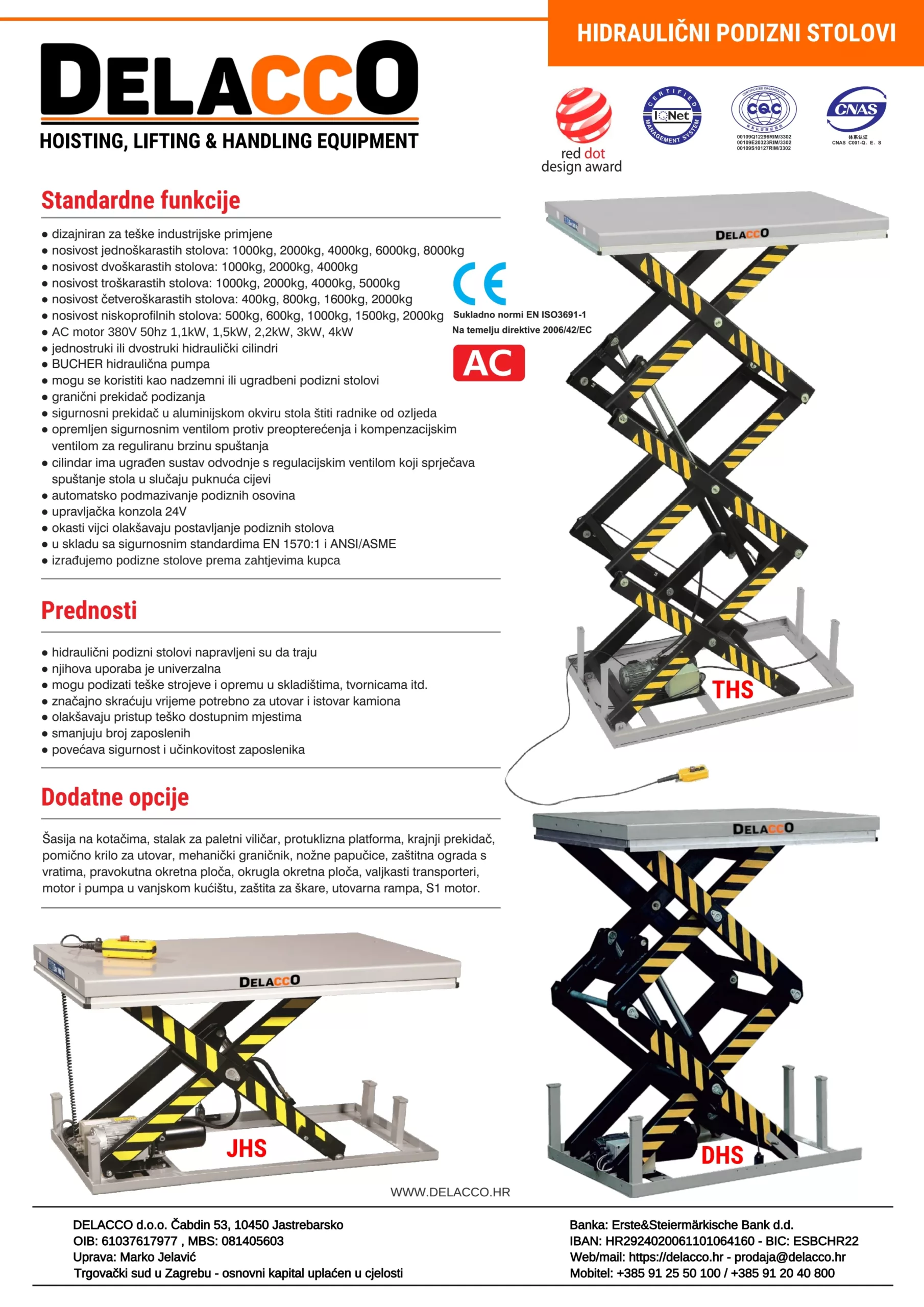

Key features
- Industrial lift tables designed for intensive use
- Series complies with EN 1570:1 and ANSI/ASME safety standards
- Can be installed above ground or recessed into a floor pit
- Aluminium safety contacts on the lower platform edge prevent injuries during lowering
- 24 V control box
- Internal power pack with overload relief valve and compensated valve for regulated lowering speed
- Cylinder-integrated drain system with a check valve that stops lowering in case of hose failure
- Automatic lubrication of the lifting points
- Eye bolts make installation easier
- AC motor drive
- Lift tables can also be manufactured to customer-specific requirements

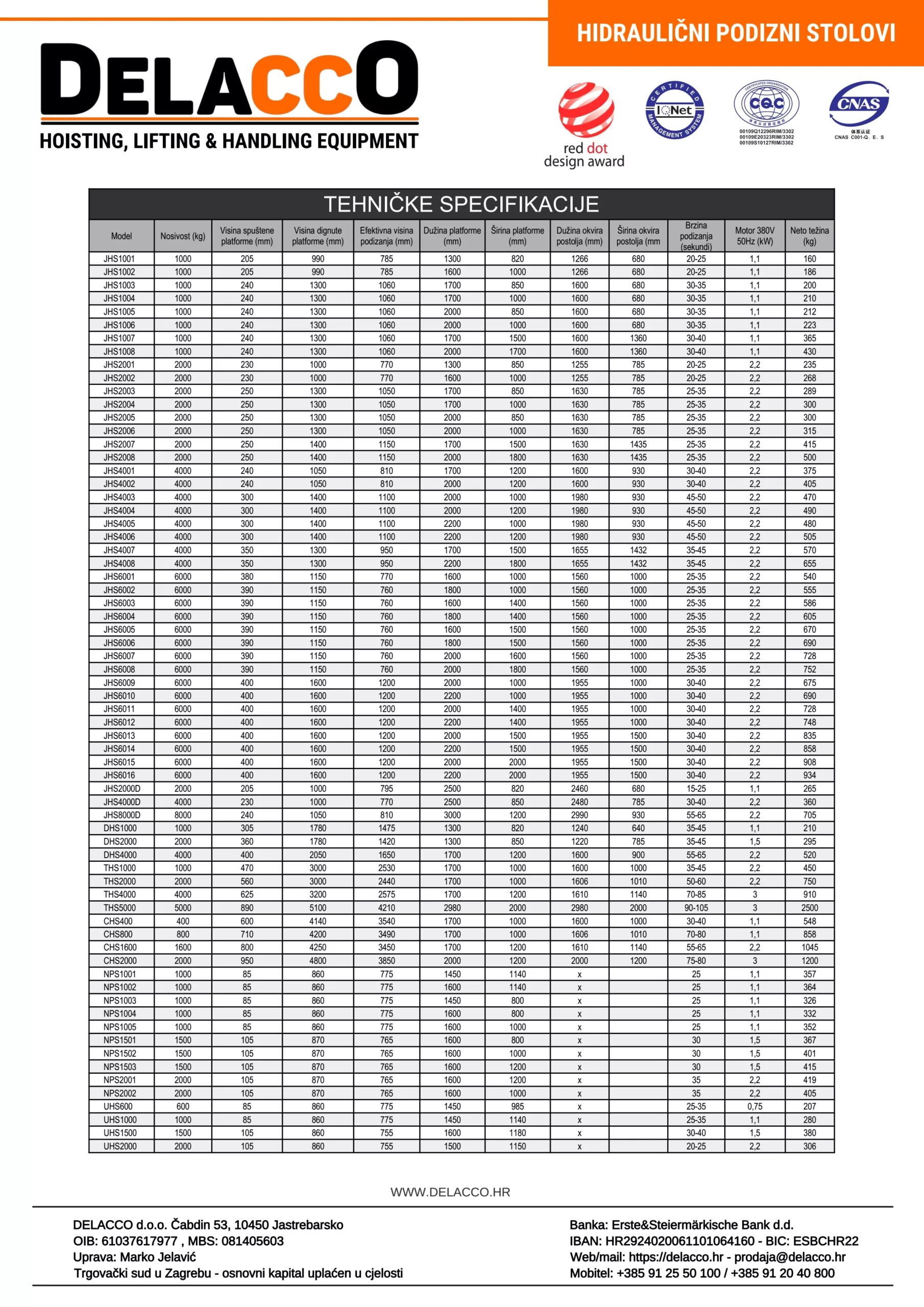

Technical overview
- Model / SKU: THS
- Product family: High-Lift Hydraulic Tables
- Load capacity: 1000 kg, 2000 kg, 4000 kg, 5000 kg
- Platform length: 1700 mm, 2980 mm
- Platform width: 1000 mm, 1200 mm, 2000 mm
- Lowered height: 470 mm, 560 mm, 625 mm, 890 mm
- Lift height: 3000 mm, 3200 mm, 5100 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1000 kg, 2000 kg, 4000 kg, 5000 kg |
|---|---|
| Platform length | 1700 mm, 2980 mm |
| Platform width | 1000 mm, 1200 mm, 2000 mm |
| Lowered height | 470 mm, 560 mm, 625 mm, 890 mm |
| Lift height | 3000 mm, 3200 mm, 5100 mm |
