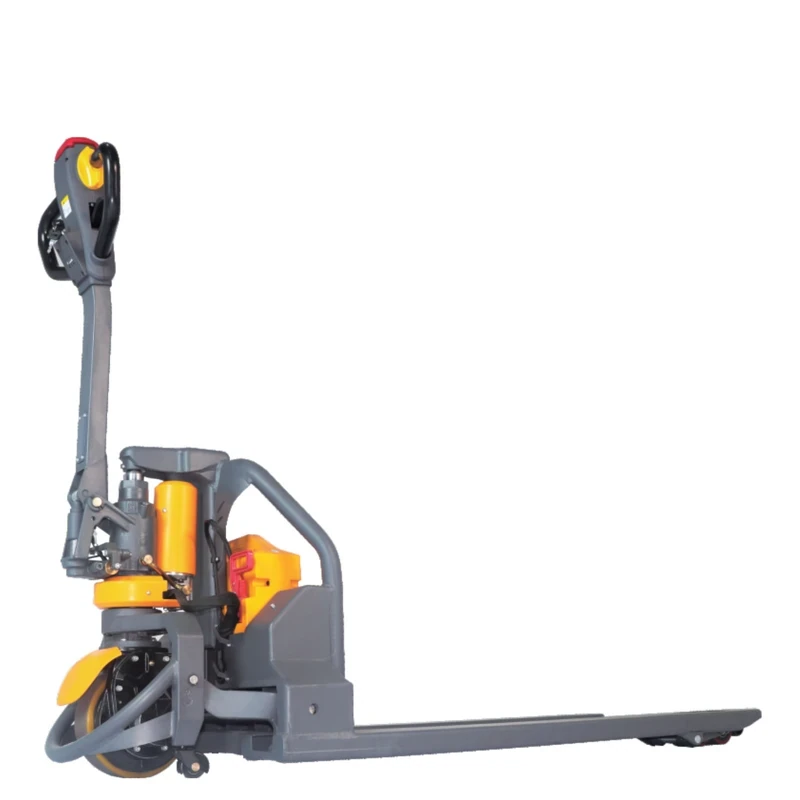

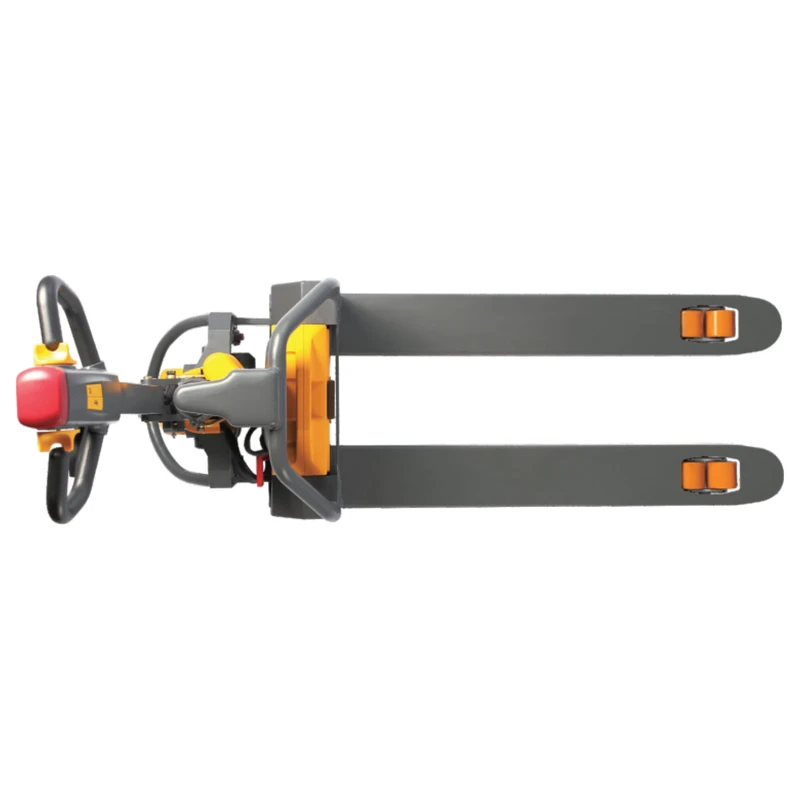

Li-Ion Powered Pallet Truck (EPV15LD-Li) 1500 kg
Price
1.660,00 EUR
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Compact Li-ion powered pallet truck with 1500 kg capacity, 48V/20Ah battery, one-piece cast rocker arm and electromagnetic brake with regenerative braking — agile in confined indoor spaces.
Key features
- Multi-function handle: key switch, horn, butterfly thumb controls, emergency reverse
- One-piece cast rocker arm for extra strength
- Ergonomic spring-loaded steering handle reduces operator fatigue
- Rugged, lightweight body — outstanding agility in confined spaces
- EM brake with regenerative braking
- Simple mechanical and electronic components — easy service
- 48V/20Ah Li-ion battery weighing only 8.5 kg

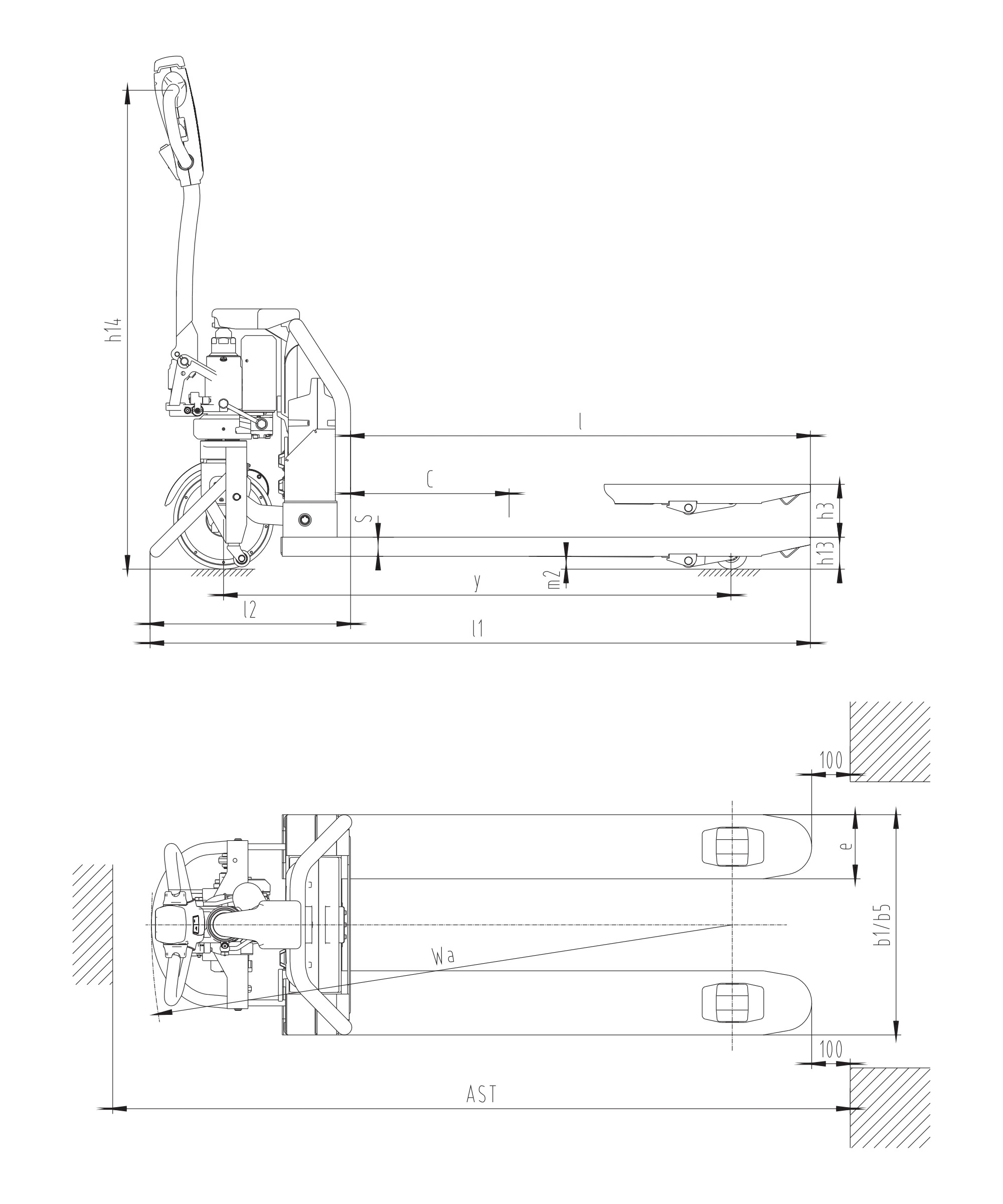

Technical overview
- Model / SKU: EPV15LD-Li
- Product family: Electric Pallet Trucks
- Load capacity: 1500 kg
- Engine type: DC
- Load center: 600 mm
- Fork height, lowered: 80 mm
- Tyre size, front: 210 mm
- Tyre size, rear: 80 mm
- Number of wheels, front/rear (x=driving) Φ: 1x2(4)
- Max. lift height: 110 mm
- Height of tiller min/max: 635/1200mm
- Overall length: 1623/1693mm
- Length to face of forks: 473 mm
- Overall width: 550/685mm
- Fork dimensions: 45x160x1150mm (1220)
- Width overall forks: 550/685mm
- Aisle width for pallets 1000x1200mm: 2226/2294mm
- Aisle width for pallets 800x1200mm: 2095/2132mm
- Turning radius: 1424/1494mm
- Travel speed, laden/unladen: 4.8/5.0km/h
- Max. gradeability laden/unladen: 5/20%
- Initial lift: no
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LFP/48/20
- Battery weight: 8.5 kg
- Battery dimensions (I/W/H): 340x130x307mm
- Service weight (with battery): 135 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1500 kg |
|---|---|
| Engine type | DC |
| Load center | 600 mm |
| Fork height, lowered | 80 mm |
| Tyre size, front | 210 mm |
| Tyre size, rear | 80 mm |
| Number of wheels, front/rear (x=driving) Φ | 1x2(4) |
| Max. lift height | 110 mm |
| Height of tiller min/max | 635/1200mm |
| Overall length | 1623/1693mm |
| Length to face of forks | 473 mm |
| Overall width | 550/685mm |
| Fork dimensions | 45x160x1150mm (1220) |
| Width overall forks | 550/685mm |
| Aisle width for pallets 1000x1200mm | 2226/2294mm |
| Aisle width for pallets 800x1200mm | 2095/2132mm |
| Turning radius | 1424/1494mm |
| Travel speed, laden/unladen | 4.8/5.0km/h |
| Max. gradeability laden/unladen | 5/20% |
| Initial lift | no |
| Folding platform | no |
| Electric power steering | no |
| Battery type/voltage/capacity | LFP/48/20 |
| Battery weight | 8.5 kg |
| Battery dimensions (I/W/H) | 340x130x307mm |
| Service weight (with battery) | 135 kg |
