Articulated Pillar Jib Crane (ZSD) 125-500 kg 2-5 m
Price
Configure your crane below — live price, weight and shipping update as you choose.
Categories:
Pillar Jib Cranes
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Configure your crane
Select capacity, span and options. Price, weight and shipping update live.
GIS GP electric chain hoist
Electric chain hoist — configuration
Every option in this panel belongs to the GIS GP electric chain hoist bundled with your jib crane. It is produced and invoiced as a separate item; the jib-crane options stay outside this panel.
Electric hoist — intensity of use
How will you use the electric hoist?
Each duty class has its own capacity envelope: the heavier the use, the lower the rated weight, so a heavier class may pull a larger GP sub-model. Selecting a class lighter than your real-world use voids the manufacturer warranty and risks motor failure.
Save your configuration
Get a shareable link, email the PDF to yourself, and we will save the configuration on our side.
Reset configuration?
All option selections (duty class, capacity, lift speed, trolley, options…) will return to their defaults. Your current quantity and delivery address will be kept. This cannot be undone.
Request quote
Share your project details and we will get back with a tailored quote.

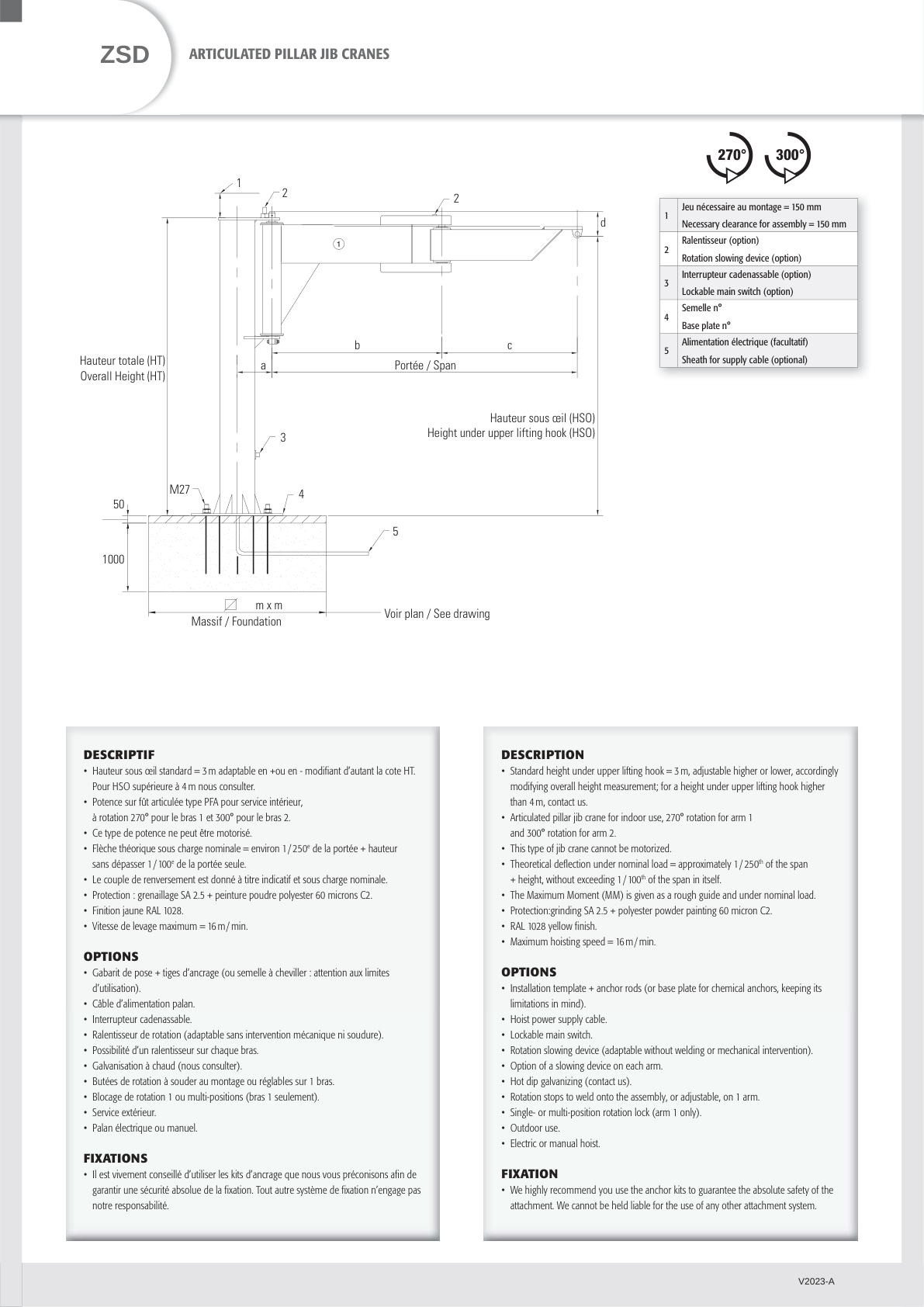

The ZSD (Comege PFA) is an articulated pillar jib crane: a self-standing column anchored to the floor carrying two hinged arms so the hoist can travel around obstacles rather than in a simple arc. It is built for both indoor and outdoor use and is manual-slewing only.
Key features
- Articulated boom — arm 1 rotates 270°, arm 2 rotates 300° — for obstacle-avoiding coverage around columns and machinery
- Hoist hangs from a fixed suspension point at the arm tip (no travelling trolley)
- Capacity 125-500 kg; spans 2-5 m; standard height under upper hook 3 m, adjustable in 0.1 m steps up to 4 m (above 4 m on request)
- Indoor + outdoor use; manual slewing — this crane type cannot be motorized
- Floor fixation by cast-in installation template + anchor rods, or a bolt-down splitable base plate with a chemical-anchor kit
- Manual or GP electric chain hoist can be added in the configurator and bundled into the quote
- Grinding SA 2.5 + 60 µm C2 polyester powder paint, RAL 1028 yellow finish; outdoor C3 paint systems available
- Complies with the Machinery Directive 2006/42/EC
Technical overview
- Model / SKU: ZSD (Comege PFA)
- Product family: Pillar Jib Cranes
- Load capacity: 125 / 250 / 500 kg
- Span: 2-5 m
- Rotation: articulated — arm 1 270° / arm 2 300° (manual)
- Height under upper hook: 3 m standard, adjustable to 4 m
- Finish: RAL 1028 yellow (C2 indoor; C3 outdoor available)
Configure capacity, span, height under hook, fixation, hoist and finish, then add the product to the quote list for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 125 kg, 250 kg, 500 kg |
|---|---|
| Span | 2 m, 3 m, 4 m, 5 m |
| Rotation | Articulated (arm 1 270° / arm 2 300°) |
| Brand | DELACCO |
| Comege Model | PFA |
| Compliance | {"machinery_directive": "2006/42/EC"} |
| Capacity [kg] | Spans [m] | Base price [€] |
|---|---|---|
| 125 | 2-5 | 2 972-3 853 |
| 250 | 2-5 | 2 972-4 802 |
| 500 | 2-3 | 3 647-4 697 |
Base price is for the standard 3 m height under upper hook; each extra 0.1 m of height, fixation, hoist and finish are priced in the configurator. This articulated crane is manual-slewing and cannot be motorized; the hoist hangs from a fixed suspension point (no trolley).
