H-Beam Spreader (Adjustable) (PNHG) 1000-10000 kg
Price
Configure your crane below — live price, weight and shipping update as you choose.
Categories:
Modular Spreader Beams (Traverses)
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Configure your crane
Select capacity, span and options. Price, weight and shipping update live.
Save your configuration
Get a shareable link, email the PDF to yourself, and we will save the configuration on our side.
Reset configuration?
All option selections (duty class, capacity, lift speed, trolley, options…) will return to their defaults. Your current quantity and delivery address will be kept. This cannot be undone.
Request quote
Share your project details and we will get back with a tailored quote.

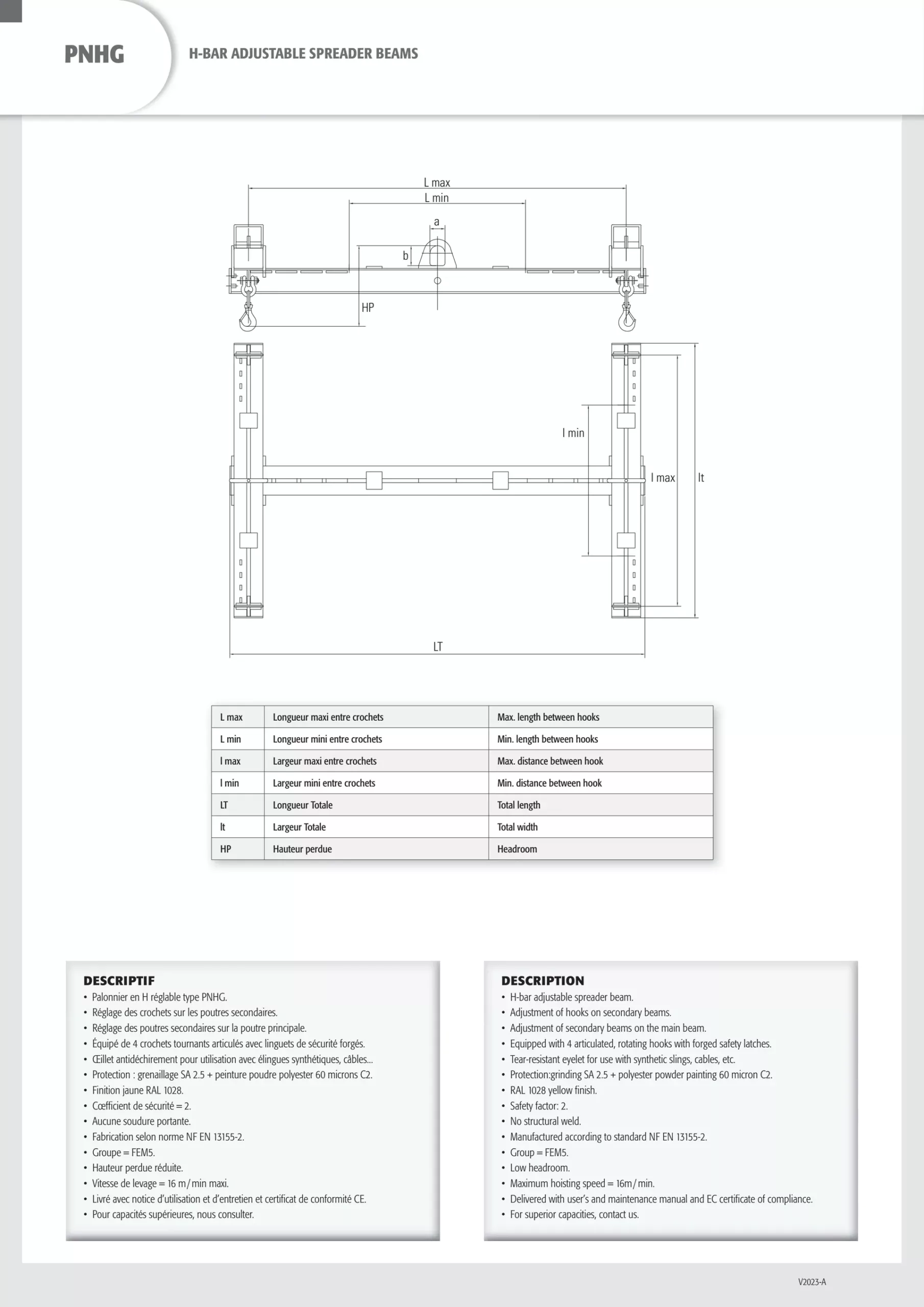

Adjustable H-beam spreader (lifting traverse) type PNHG — a cross/H frame with four articulated rotating hooks and adjustable secondary beams for balanced four-point lifting with reduced headroom. Manufactured to NF EN 13155 (FEM 5).
Key features
- H-frame (cross) layout with four articulated rotating hooks and forged safety latches; reduced headroom
- Hooks and secondary beams adjustable for balanced multi-point pick-up
- Tear-resistant eyelet for use with synthetic slings, cables, etc.
- No structural weld; manufactured to NF EN 13155, group FEM 5
- Protection: grinding SA 2.5 + 60 µm C2 polyester powder paint, RAL 1028 yellow finish
- Delivered with user / maintenance manual and CE declaration of conformity
- Packed under shrink film for road transport (not suitable for sea freight)
Technical overview
- Model / SKU: PNHG (Comege PALHR)
- Product family: Spreader Beams — adjustable steel H-beam
- Material: steel
- Load capacity: 1000–10000 kg
- Configurations: six beam layouts (1×1–4×2)
- Standard: EN 13155 (group FEM 5)
- Finish: RAL 1028 yellow (C2)
Choose the capacity and beam configuration to get a price, then add the product to the quote list for delivery terms and customer-specific configurations.
Attributes

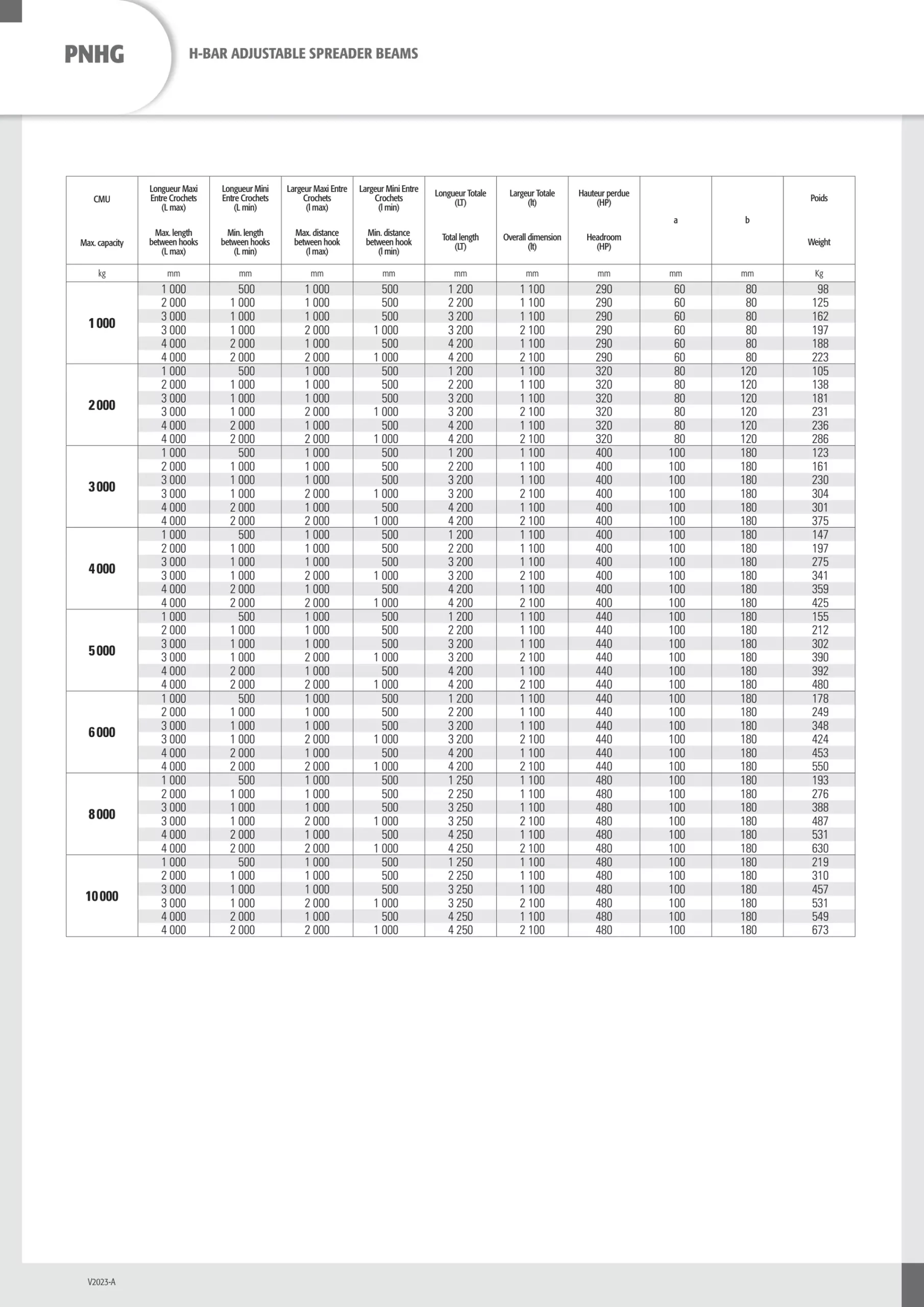

| Load capacity | 1000 kg, 2000 kg, 3000 kg, 4000 kg, 5000 kg, 6000 kg, 8000 kg, 10000 kg |
|---|---|
| Configuration | 1×1, 2×1, 3×1, 3×2, 4×1, 4×2 |
| Finish | RAL 1028 yellow (C2) |
| Beam Type | adjustable steel H-beam |
| Brand | DELACCO |
| Comege Model | PALHR |
| Compliance | {"group": "FEM 5", "standard": "EN 13155"} |
| Material | steel |
