Electric Rider Pallet Truck (EPV20-P/EPV25-P) 2000-2500 kg
Price
From 7.730,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.

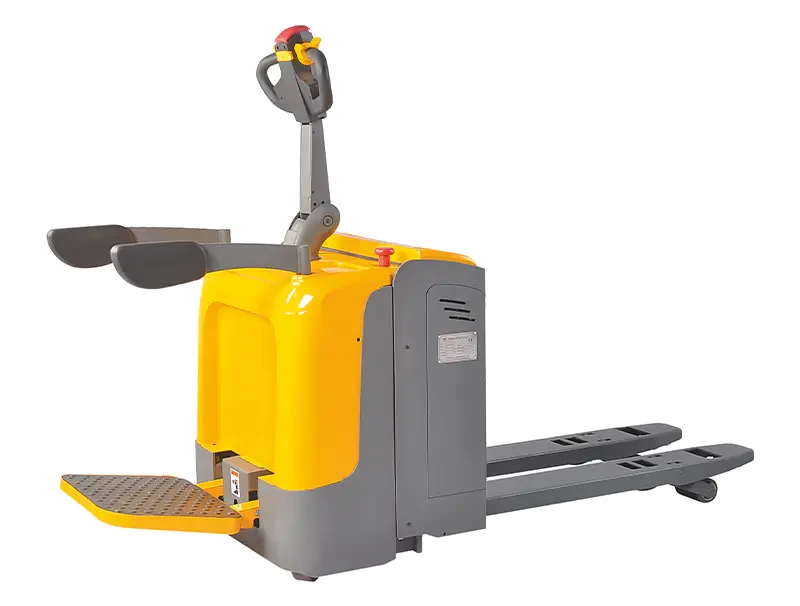

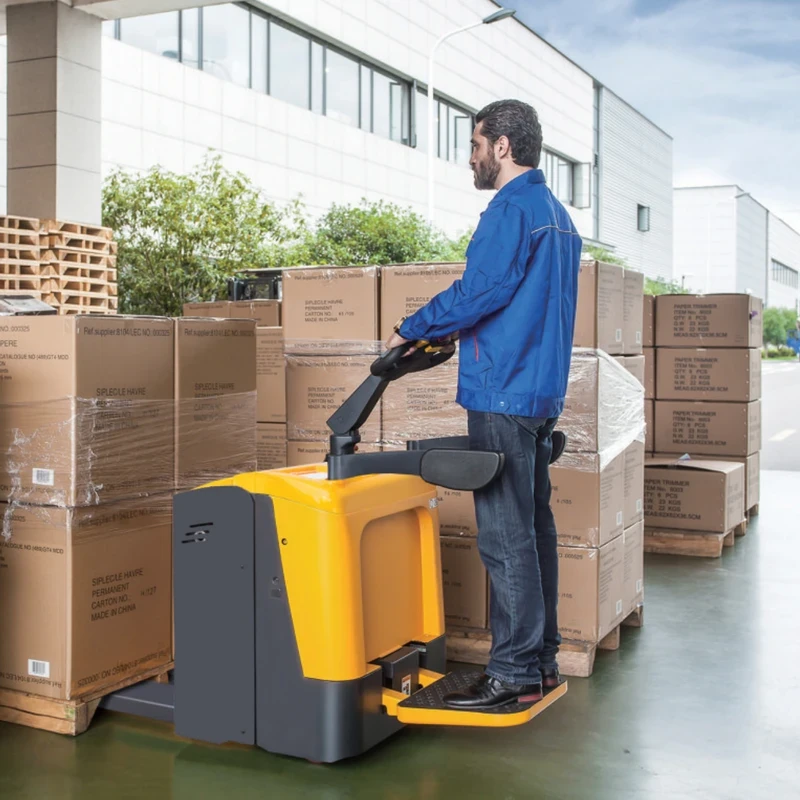

Stand-on platform rider pallet truck with 2000-2500 kg capacity, brushless AC motor, emergency stop and belly-button reversing, BDI display and speed-sensing platform — for medium-distance transport in large warehouses.
Key features
- Folding stand-on platform with speed sensor

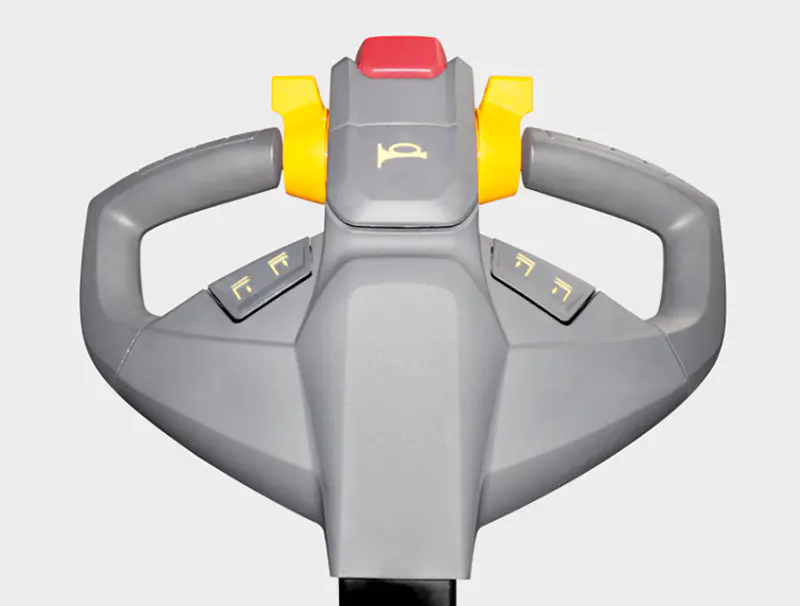

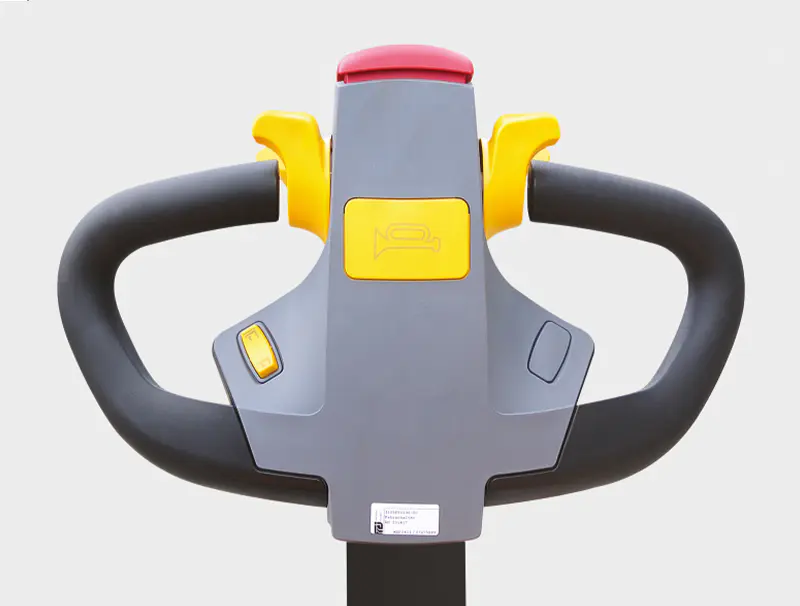

- Emergency stop and belly-button switch for safe operation
- BDI and hour meter included
- Brushless AC motor needs very little maintenance
- Stabilising casters and vertical drive motor
- Side-way battery change with built-out charger
- Options: load backrest, built-in charger, cold-storage rubber drive wheel, EPS

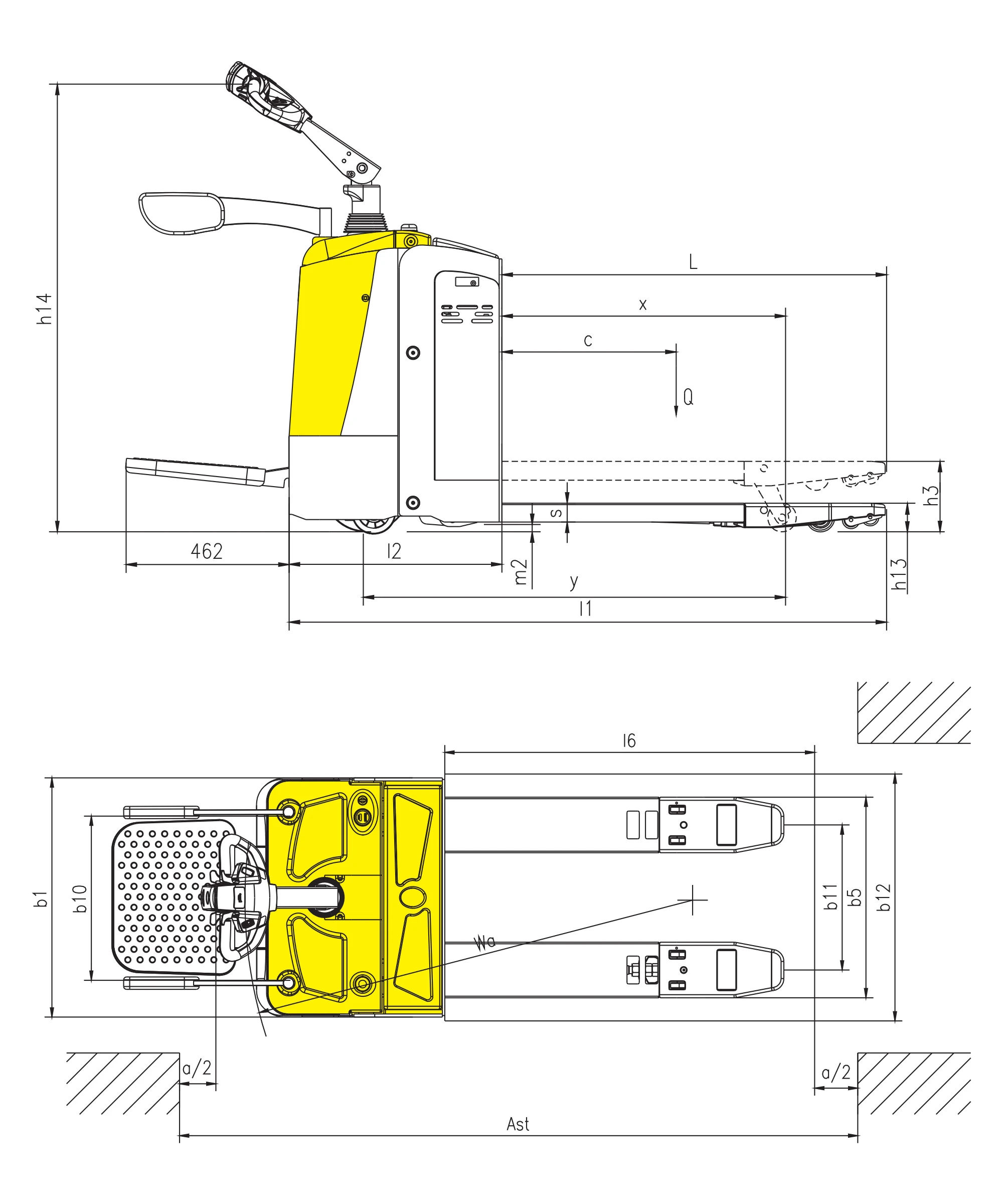

Technical overview
- Model / SKU: EPV20-P_EPV25-P
- Product family: Electric Pallet Trucks
- Load capacity: 2000 kg, 2500 kg
- Engine type: AC
- Load center: 600 mm
- Load distance, center of drive axle to fork: 914/965/1034mm
- Fork height, lowered: 82 mm
- Tyre size, front: 250x70mm
- Tyre size, rear: 82x126(98)mm
- Additional wheels (dimensions): 127x57mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/2(4)
- Max. lift height: 202 mm
- Height of tiller min/max: 1150/1430mm
- Overall length: 1710/1760/1830mm
- Length to face of forks: 610 mm
- Overall width: 775 mm
- Fork dimensions: 53x180x1100mm (1150/1220)
- Width overall forks: 520/550/650/685mm
- Aisle width for pallets 1000x1200mm: 2360/2405/2475mm
- Aisle width for pallets 800x1200mm: 2245/2270/2305mm
- Turning radius: 1550/1600/1670mm
- Travel speed, laden/unladen: 7.0/7.1km/h
- Initial lift: no
- Folding platform: yes
- Electric power steering: option
- Battery type/voltage/capacity: LA/24/210, LA/24/240, LFP/24/125, LFP/24/225
- Battery weight: 195 kg, 200 kg
- Battery dimensions (I/W/H): 750x170x534mm, 750x170x570mm
- Service weight (with battery): 720 kg, 750 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 2000 kg, 2500 kg |
|---|---|
| Battery type/voltage/capacity | 24v-125ah, 24v-210ah, 24v-225ah, 24v-240ah |
| Engine type | AC |
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 914/965/1034mm |
| Fork height, lowered | 82 mm |
| Tyre size, front | 250x70mm |
| Tyre size, rear | 82x126(98)mm |
| Additional wheels (dimensions) | 127x57mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/2(4) |
| Max. lift height | 202 mm |
| Height of tiller min/max | 1150/1430mm |
| Overall length | 1710/1760/1830mm |
| Length to face of forks | 610 mm |
| Overall width | 775 mm |
| Fork dimensions | 53x180x1100mm (1150/1220) |
| Width overall forks | 520/550/650/685mm |
| Aisle width for pallets 1000x1200mm | 2360/2405/2475mm |
| Aisle width for pallets 800x1200mm | 2245/2270/2305mm |
| Turning radius | 1550/1600/1670mm |
| Travel speed, laden/unladen | 7.0/7.1km/h |
| Initial lift | no |
| Folding platform | yes |
| Electric power steering | option |
| Battery weight | 195 kg, 200 kg |
| Battery dimensions (I/W/H) | 750x170x534mm, 750x170x570mm |
| Service weight (with battery) | 720 kg, 750 kg |
