Single Scissor Lift Table (JHS1000) 1000 kg
Price
From 1.380,00 EUR
From 1.240,00 EUR
Sale
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Low-Lift Hydraulic Tables
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Industrial single scissor hydraulic lift table rated at 1000 kg, built for intensive duty with platform sizes from 1300x820 mm to 2000x850 mm.

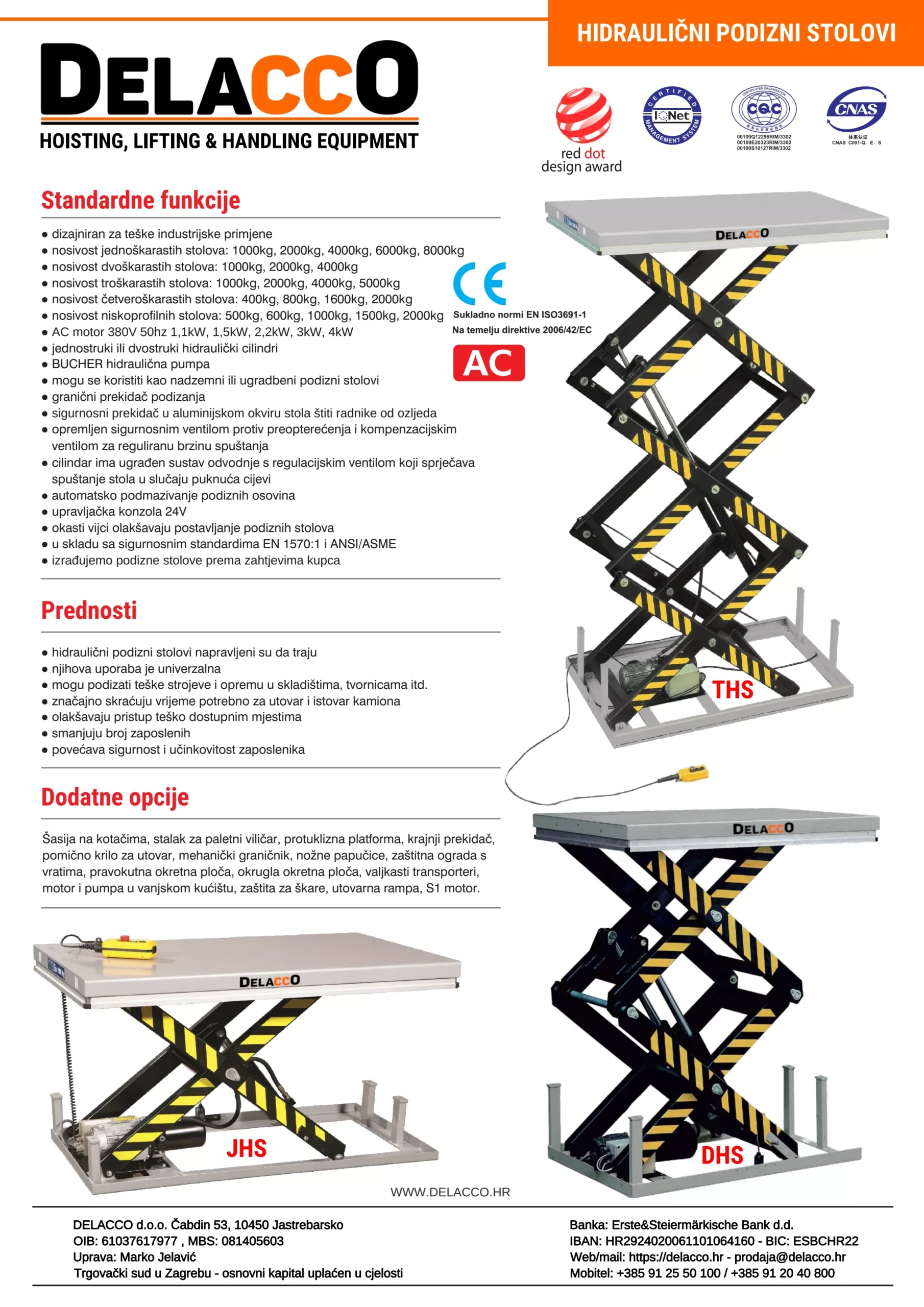

Key features
- Industrial lift tables designed for intensive use
- Series complies with EN 1570:1 and ANSI/ASME safety standards
- Can be installed above ground or recessed into a floor pit
- Aluminium safety contacts on the lower platform edge prevent injuries during lowering
- 24 V control box
- Internal power pack with overload relief valve and compensated valve for regulated lowering speed
- Cylinder-integrated drain system with a check valve that stops lowering in case of hose failure
- Automatic lubrication of the lifting points
- Eye bolts make installation easier
- AC motor drive
- Lift tables can also be manufactured to customer-specific requirements

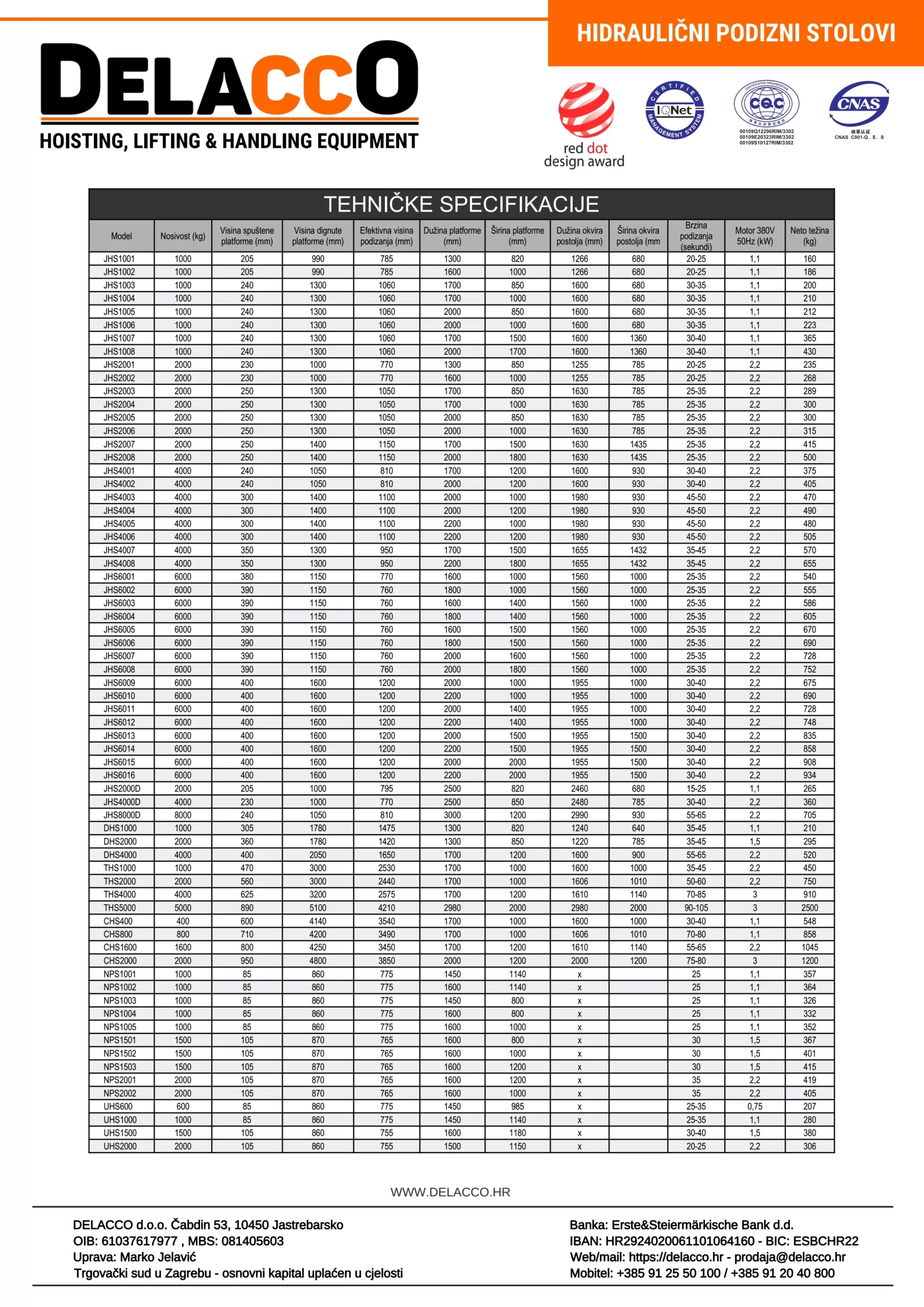

Technical overview
- Model / SKU: JHS1000
- Product family: Low-Lift Hydraulic Tables
- Load capacity: 1000 kg
- Platform length: 1300 mm, 1600 mm, 1700 mm, 2000 mm
- Platform width: 1000 mm, 1500 mm, 1700 mm, 820 mm, 850 mm
- Lowered height: 205 mm, 240 mm
- Lift height: 1300 mm, 990 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Platform length | 1300 mm, 1600 mm, 1700 mm, 2000 mm |
|---|---|
| Platform width | 820 mm, 850 mm, 1000 mm, 1500 mm, 1700 mm |
| Lowered height | 205 mm, 240 mm |
| Lift height | 990 mm, 1300 mm |
| Load capacity | 1000 kg |
