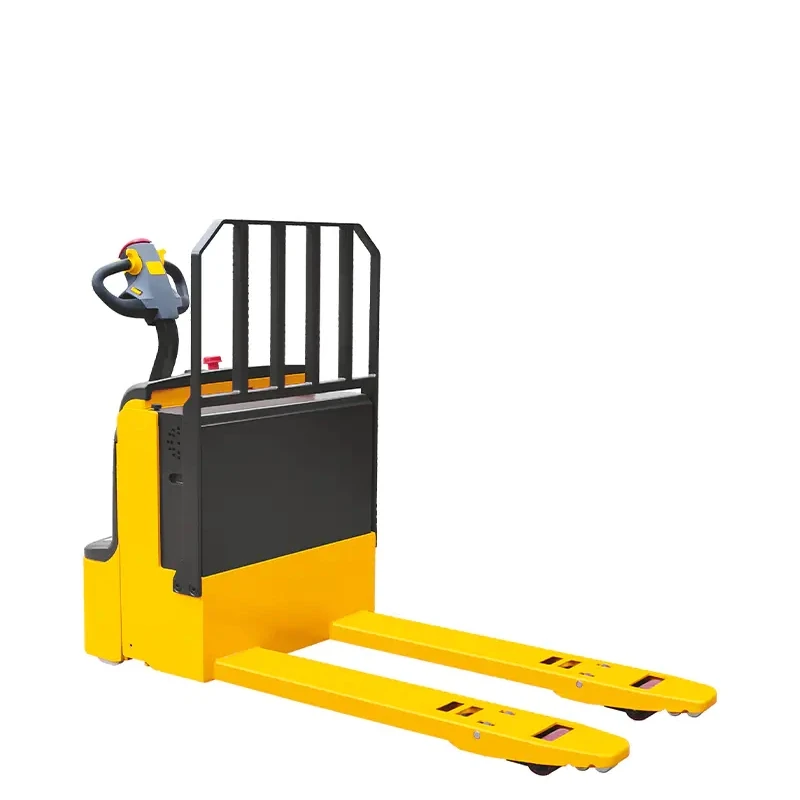

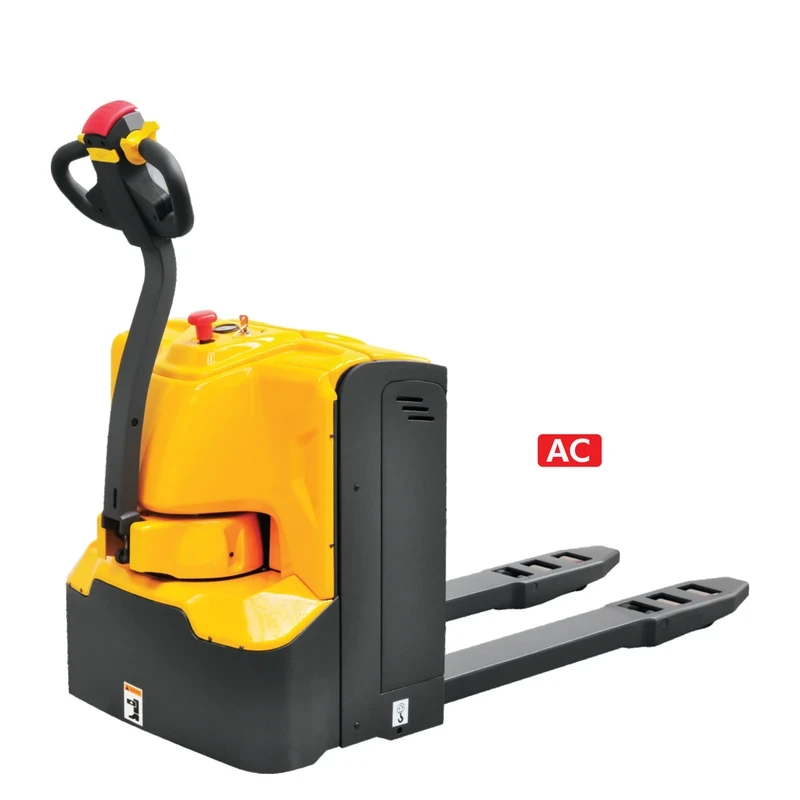

Electric Walkie Pallet Jack (EPV18PM/EPV20PM/EPV20PMO) 1800-2000 kg
Price
From 5.830,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Super-light electric walkie pallet jack with 1800-2000 kg capacity, low-profile chassis, AC control with regenerative braking and roll-out side battery — for narrow spaces and mid-distance transport.
Key features
- Modern AC control — no motor brushes or directional contactors
- Intelligent regenerative braking extends battery charge intervals
- Side-way battery with roll-out system (EPV20PM) for quick swaps
- Emergency reversing device and emergency power disconnect
- Built-in pressure relief valve protects against overload
- Long handle tube for flexible, labour-saving operation
- Low-speed switch in the handle

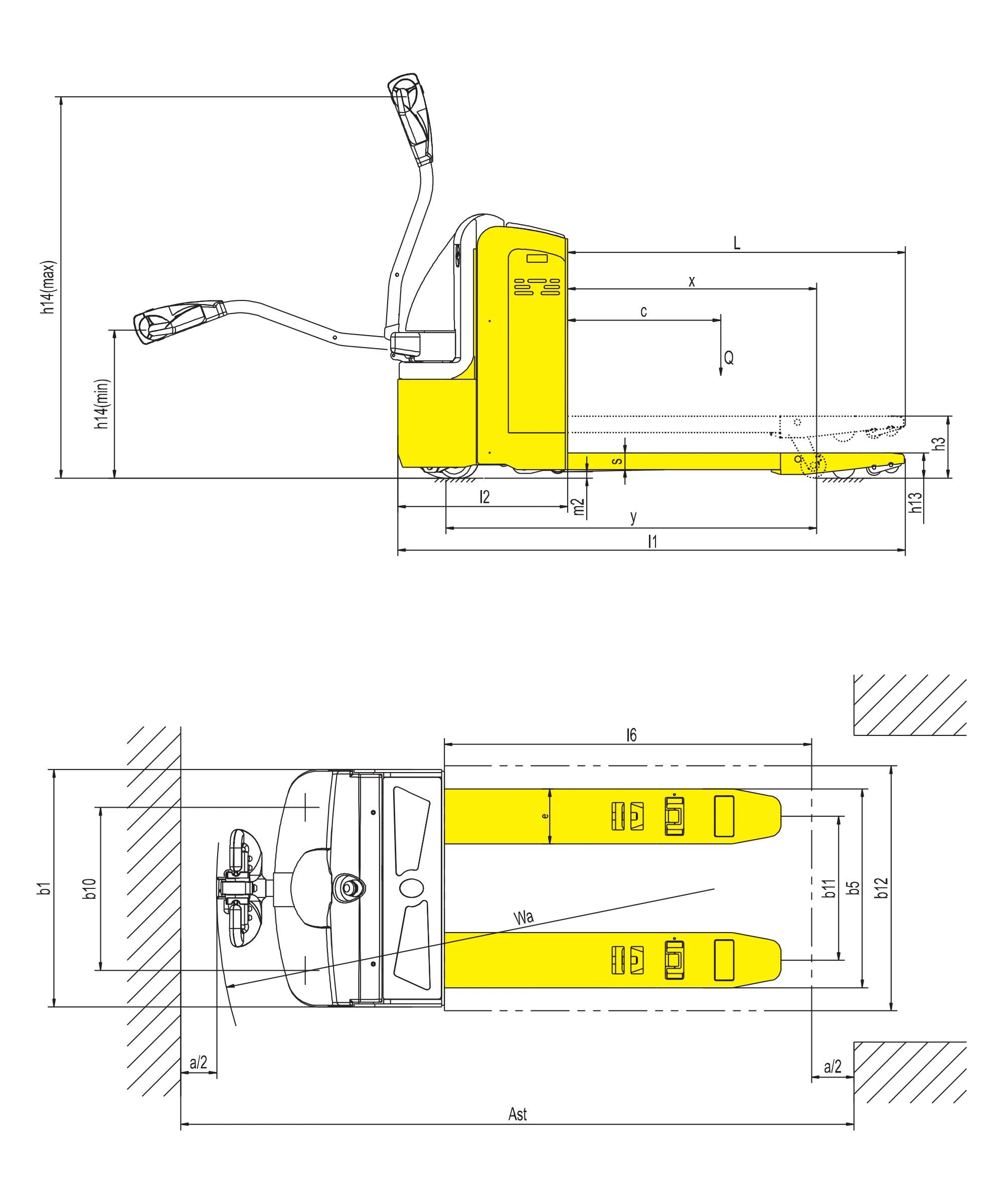

Technical overview
- Model / SKU: EPV18PM_EPV20PM_EPV20PMO
- Product family: Electric Pallet Trucks
- Load capacity: 1800 kg, 2000 kg
- Engine type: AC
- Load center: 600 mm
- Load distance, center of drive axle to fork: 1034 mm, 856 mm, 914/965/1034mm
- Fork height, lowered: 82 mm, 84 mm
- Tyre size, front: 250x70mm
- Tyre size, rear: 80x70mm, 82x126(98)mm
- Additional wheels (dimensions): 114x60mm, 127x57mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/2(4), 1X+2/4
- Max. lift height: 202 mm, 204 mm
- Height of tiller min/max: 530/1230mm
- Overall length: 1651 mm, 1655/1705/1775mm, 1805 mm
- Length to face of forks: 500 mm, 555 mm, 585 mm
- Overall width: 550/685mm, 775 mm
- Fork dimensions: 54x150x1150mm, 54x180x1100mm (1150/1220), 54x180x1220mm
- Width overall forks: 520/550/650/685mm, 550/685mm
- Aisle width for pallets 1000x1200mm: 2230 mm, 2275/2320/2385mm, 2415 mm
- Aisle width for pallets 800x1200mm: 2110 mm, 2160/2180/2220mm, 2250 mm
- Turning radius: 1430 mm, 1470/1520/1590mm, 1620 mm
- Travel speed, laden/unladen: 5.5/5.6km/h
- Initial lift: no
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LFP/24/100, LFP/24/125
- Battery weight: 128 kg, 160 kg, 195 kg
- Battery dimensions (I/W/H): 245x190x252mmx4, 645x148x560mm, 750x170x534mm
- Service weight (with battery): 535 kg, 580-585 kg, 640-645 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1800 kg, 2000 kg |
|---|---|
| Battery type/voltage/capacity | 24v-100ah, 24v-125ah |
| Engine type | AC |
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 1034 mm, 856 mm, 914/965/1034mm |
| Fork height, lowered | 82 mm, 84 mm |
| Tyre size, front | 250x70mm |
| Tyre size, rear | 80x70mm, 82x126(98)mm |
| Additional wheels (dimensions) | 114x60mm, 127x57mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/2(4), 1X+2/4 |
| Max. lift height | 202 mm, 204 mm |
| Height of tiller min/max | 530/1230mm |
| Overall length | 1651 mm, 1655/1705/1775mm, 1805 mm |
| Length to face of forks | 500 mm, 555 mm, 585 mm |
| Overall width | 550/685mm, 775 mm |
| Fork dimensions | 54x150x1150mm, 54x180x1100mm (1150/1220), 54x180x1220mm |
| Width overall forks | 520/550/650/685mm, 550/685mm |
| Aisle width for pallets 1000x1200mm | 2230 mm, 2275/2320/2385mm, 2415 mm |
| Aisle width for pallets 800x1200mm | 2110 mm, 2160/2180/2220mm, 2250 mm |
| Turning radius | 1430 mm, 1470/1520/1590mm, 1620 mm |
| Travel speed, laden/unladen | 5.5/5.6km/h |
| Initial lift | no |
| Folding platform | no |
| Electric power steering | no |
| Battery weight | 128 kg, 160 kg, 195 kg |
| Battery dimensions (I/W/H) | 245x190x252mmx4, 645x148x560mm, 750x170x534mm |
| Service weight (with battery) | 535 kg, 580-585 kg, 640-645 kg |
