Electric Walkie Pallet Truck (EPV15H/EPV18H/EPV20H) 1500-2000 kg
Price
From 3.220,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.

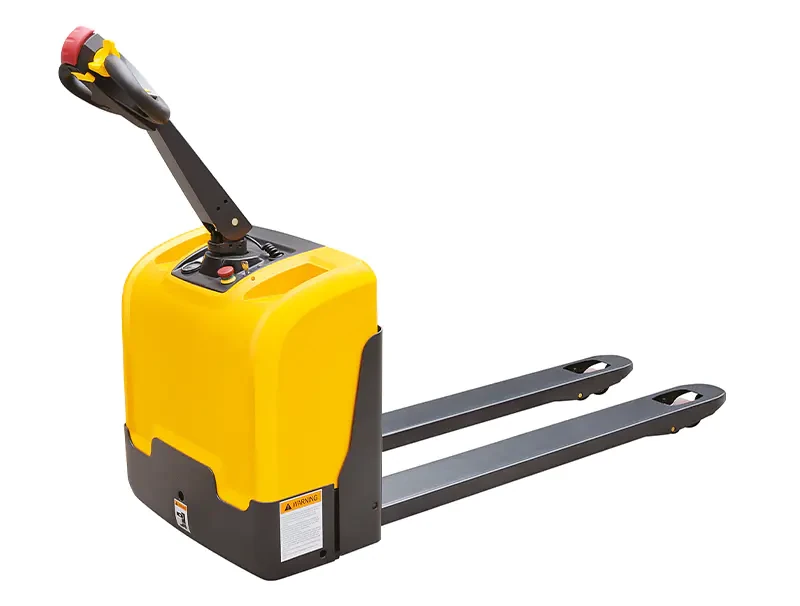

Mini full electric walkie pallet truck with 1500-2000 kg capacity, maintenance-free DC brushless motor, sealed batteries and a minimum turning radius from 1320 mm — sized like a manual pallet truck.
Key features
- Minimum turning radius 1320-1389 mm at manual-pallet-truck size
- Maintenance-free DC brushless motor with high efficiency
- Completely sealed maintenance-free batteries
- Low-speed mode with upright handle reduces turning space (Frei handle option)
- Travel speeds up to 5.3-5.8 km/h boost productivity
- Floating balance wheel with automatic height adjustment
- Horizontal drive wheel protects the motor from dirt and water

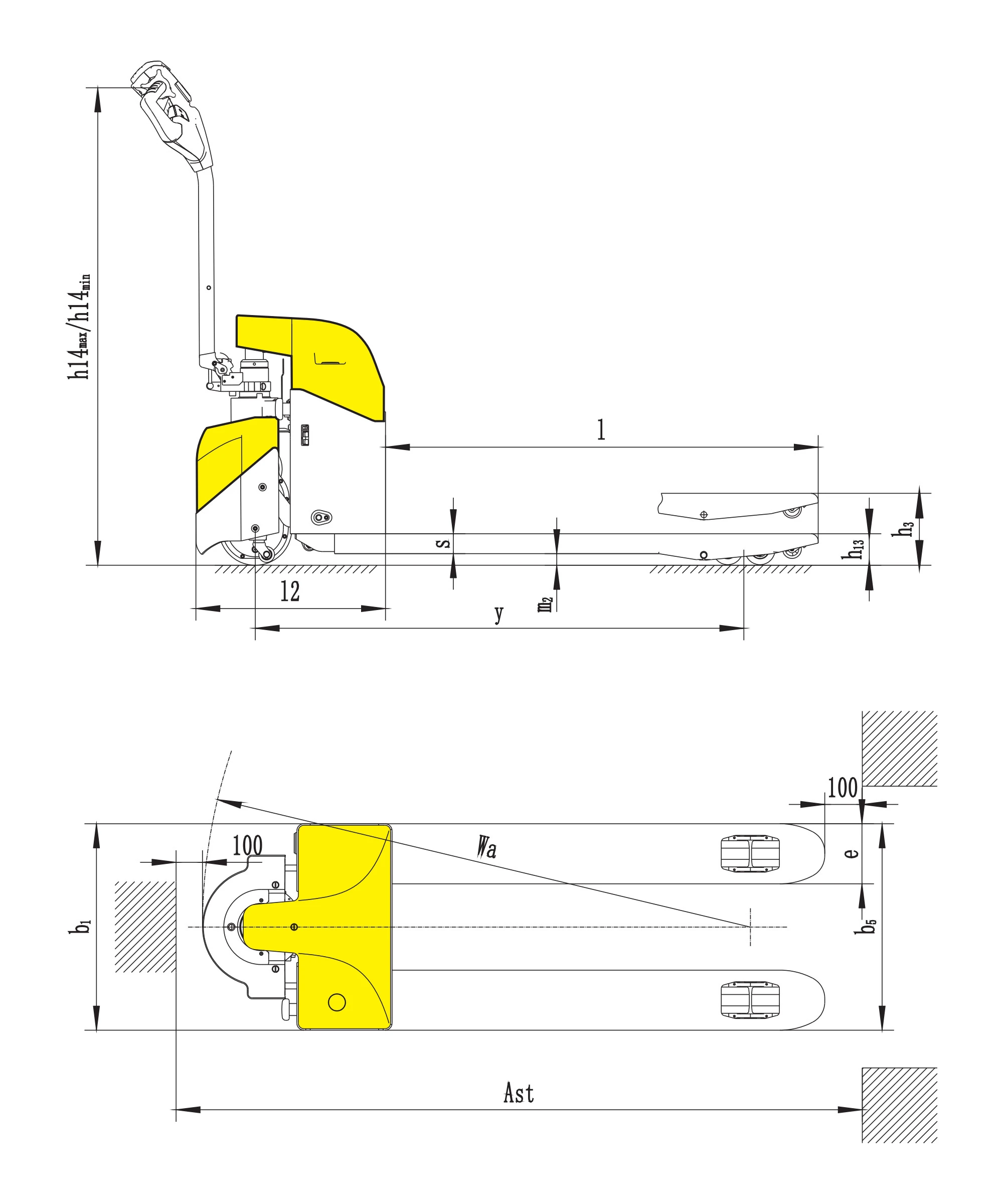

Technical overview
- Model / SKU: EPV15H_EPV18H_EPV20H
- Product family: Electric Pallet Trucks
- Load capacity: 1500 kg, 1800 kg, 2000 kg
- Engine type: DC
- Load center: 600 mm
- Fork height, lowered: 75 mm, 85 mm
- Tyre size, front: 195x70mm
- Rear wheel size (single): 80x93mm/74x93mm
- Rear wheel size (double): 80x70mm/74x70mm
- Number of wheels, front/rear (x=driving) Φ: 1x2(4)
- Max. lift height: 190/180mm
- Height of tiller min/max: 950/1310mm
- Overall length: 1525/1595mm
- Length to face of forks: 375 mm
- Overall width: 685 mm
- Fork dimensions: 53x160x1150mm (1220), 60x160x1150mm (1220)
- Width overall forks: 520/550/685mm
- Aisle width for pallets 1000x1200mm: 2102/2164mm, 2102/2184mm
- Aisle width for pallets 800x1200mm: 2005/2035mm
- Turning radius: 1347/1415mm
- Travel speed, laden/unladen: 4.5/5.0km/h, 5.3/5.8km/h
- Initial lift: no
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: GEL/24/105
- Battery dimensions (I/W/H): 260x169x215mm
- Battery weight: 49 kg
- Service weight (with battery): 240 kg, 250 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1500 kg, 1800 kg, 2000 kg |
|---|---|
| Engine type | DC |
| Load center | 600 mm |
| Fork height, lowered | 75 mm, 85 mm |
| Tyre size, front | 195x70mm |
| Rear wheel size (single) | 80x93mm/74x93mm |
| Rear wheel size (double) | 80x70mm/74x70mm |
| Number of wheels, front/rear (x=driving) Φ | 1x2(4) |
| Max. lift height | 190/180mm |
| Height of tiller min/max | 950/1310mm |
| Overall length | 1525/1595mm |
| Length to face of forks | 375 mm |
| Overall width | 685 mm |
| Fork dimensions | 53x160x1150mm (1220), 60x160x1150mm (1220) |
| Width overall forks | 520/550/685mm |
| Aisle width for pallets 1000x1200mm | 2102/2164mm, 2102/2184mm |
| Aisle width for pallets 800x1200mm | 2005/2035mm |
| Turning radius | 1347/1415mm |
| Travel speed, laden/unladen | 4.5/5.0km/h, 5.3/5.8km/h |
| Initial lift | no |
| Folding platform | no |
| Electric power steering | no |
| Battery type/voltage/capacity | GEL/24/105 |
| Battery dimensions (I/W/H) | 260x169x215mm |
| Battery weight | 49 kg |
| Service weight (with battery) | 240 kg, 250 kg |
