Push Beam Trolley (M-TROLLEY) 500-5000 kg
Price
From 70,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Manual Trolley Hoists
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Push (plain) beam trolley — a movable suspension point for chain and other hoists on supporting I-beams, for working load limits from 500 to 5,000 kg. Standard flange range 55–220 mm (by capacity). Moved by hand along the beam, with a wheel track adjustment mechanism that centres the hoist on the flange.
Key features
- Push type — moved by hand along the beam, no chain
- Suspension point for hoists on a wide range of I-beams (INP, IPE, IPB)
- Wheel track adjustment mechanism centres the hoist on the flange
- Wheels with bearings for excellent rolling; for running-surface slopes up to 20%
- Working load limit (WLL): 500 – 5,000 kg
- Complies with the Machinery Directive 2006/42/EC; made to the harmonized standard EN 13155
- Marked with manufacturer's mark, CE mark, capacity, factory number and year of production
Technical overview
- Model / SKU: M-TROLLEY
- Product family: Manual Trolley Hoists
- Load capacity: 500 kg, 1000 kg, 2000 kg, 3000 kg, 5000 kg
- Flange width range: 55–220 mm
Add the product to the quote list for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 500 kg, 1000 kg, 2000 kg, 3000 kg, 5000 kg |
|---|---|
| Brand | DELACCO |
| Compliance | {"harmonized_standard": "EN 13155", "machinery_directive": "2006/42/EC"} |
| Flange Kind | Standard flange |
| Code | WLL [kg] | Flange width M [mm] | A [mm] | B [mm] | C [mm] | D [mm] | G [mm] | H [mm] | S [mm] | Mass [kg] |
|---|---|---|---|---|---|---|---|---|---|---|
| M-TROLLEY-500 | 500 | 55–220 | 285 | 198 | 158 | 25 | 30 | 74 | 32 | 5 |
| M-TROLLEY-1000 | 1,000 | 58–220 | 300 | 238 | 183 | 30 | 36 | 95 | 36 | 8.8 |
| M-TROLLEY-2000 | 2,000 | 66–220 | 300 | 277 | 208 | 35 | 48 | 106 | 38 | 14 |
| M-TROLLEY-3000 | 3,000 | 74–220 | 328 | 324 | 249 | 46 | 58 | 121 | 40 | 23 |
| M-TROLLEY-5000 | 5,000 | 90–220 | 354 | 373 | 297 | 50 | 58 | 136 | 40 | 40 |

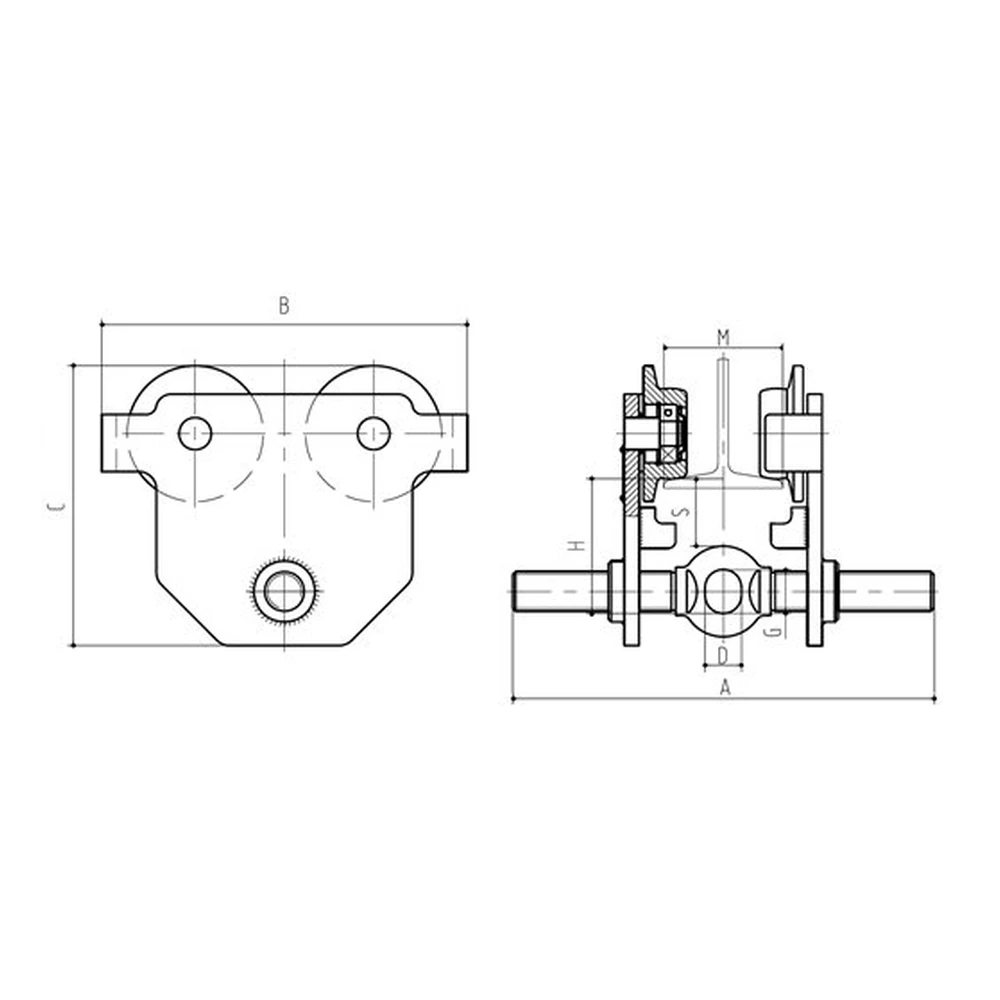

Dimensions A, B, C, D, G, H and S per the dimensional drawing; M is the recommended beam flange width.
