Semi-Electric Order Picker (PEKV400) 400 kg 3500-4500 mm
Price
On request
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Semi-electric order picker with 400 kg capacity and 3500-4500 mm lifting height, electric lifting with quiet operation, large working platform and self-locking safety gate.
Key features
- Large working platform with solid slip-resistant floor
- Self-locking gate provides maximum safety for aerial work
- Electric motor: smooth, quiet, zero-emission operation
- Ergonomic design prioritises operator safety and comfort
- 400 kg capacity with 3500-4500 mm lifting height
- Semi-electric drive — electric lifting with manual travel

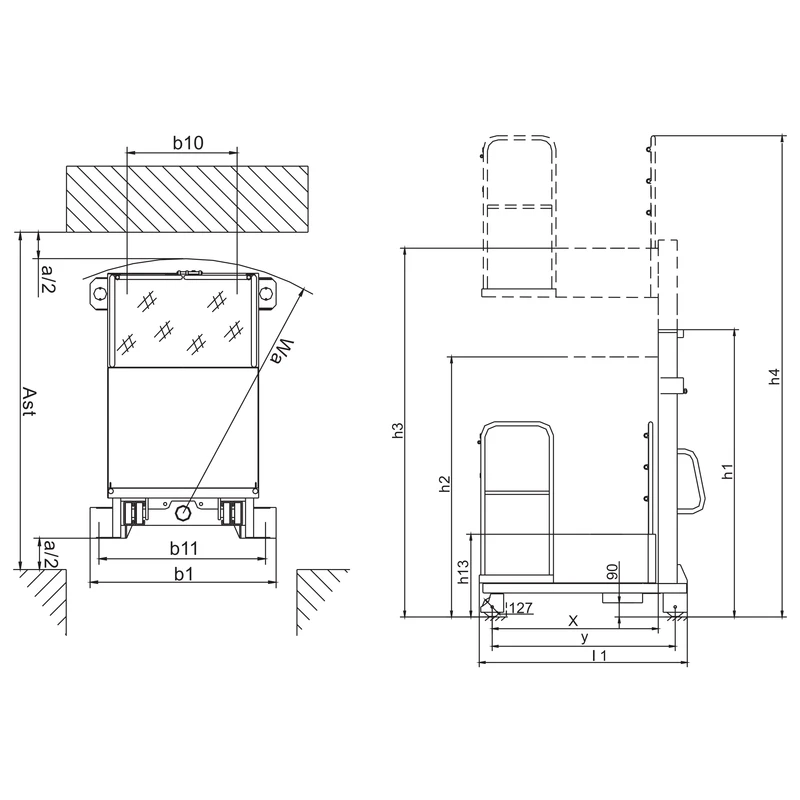

Technical overview
- Model / SKU: PEKV400
- Product family: Order Pickers
- Load capacity: 400 kg
- Load distance, center of drive axle to fork: 1052 mm
- Fork height, lowered: 524 mm
- Wheelbase: 1160 mm
- Tread, front: 522 mm
- Tread, rear: 868 mm
- Height, mast lowered: 2250/2500/2750mm
- Max. lift height: 3500/4000/4500mm
- Height, mast extended: 3500/4000/4500mm
- Overall length: 1520 mm
- Overall width: 1174 mm
- Aisle width for pallets 1000x1200mm: 1760 mm
- Turning radius: 1460 mm
- Lifting speed laden/unladen: 0.08/0.10m/s
- Lowering speed laden/unladen: 0.14/0.12m/s
- Lift motor rating at S3 15%: 1.5kW
- Battery type/voltage/capacity: LA/12/200
- Battery weight: 60 kg
- Battery dimensions (I/W/H): 250x190x295mm
- Service weight (with battery): 420/450/480kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 400 kg |
|---|---|
| Load distance, center of drive axle to fork | 1052 mm |
| Fork height, lowered | 524 mm |
| Wheelbase | 1160 mm |
| Tread, front | 522 mm |
| Tread, rear | 868 mm |
| Height, mast lowered | 2250/2500/2750mm |
| Max. lift height | 3500/4000/4500mm |
| Height, mast extended | 3500/4000/4500mm |
| Overall length | 1520 mm |
| Overall width | 1174 mm |
| Aisle width for pallets 1000x1200mm | 1760 mm |
| Turning radius | 1460 mm |
| Lifting speed laden/unladen | 0.08/0.10m/s |
| Lowering speed laden/unladen | 0.14/0.12m/s |
| Lift motor rating at S3 15% | 1.5kW |
| Battery type/voltage/capacity | LA/12/200 |
| Battery weight | 60 kg |
| Battery dimensions (I/W/H) | 250x190x295mm |
| Service weight (with battery) | 420/450/480kg |
