Double Decker Pallet Truck (EVP20-IP) 2000 kg 1600-2500 mm
Price
From 10.490,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Double decker rider pallet truck with initial lift, 2000 kg capacity (1000 kg mast fork + 2000 kg lower forks) and 1600-2500 mm mast options — carries two pallets at the same time.
Key features
- Carries two pallets simultaneously: 1000 kg mast fork + 2000 kg lower forks
- Initial lift raises the legs 120 mm for ramps and bridging plates
- Modern AC control — minimal maintenance, regenerative braking
- Side guards protect the operator at high speed
- Speed sensor under the platform adjusts driving speed automatically
- Emergency reversing device and emergency power disconnect
- Built-in pressure relief valve protects against overload

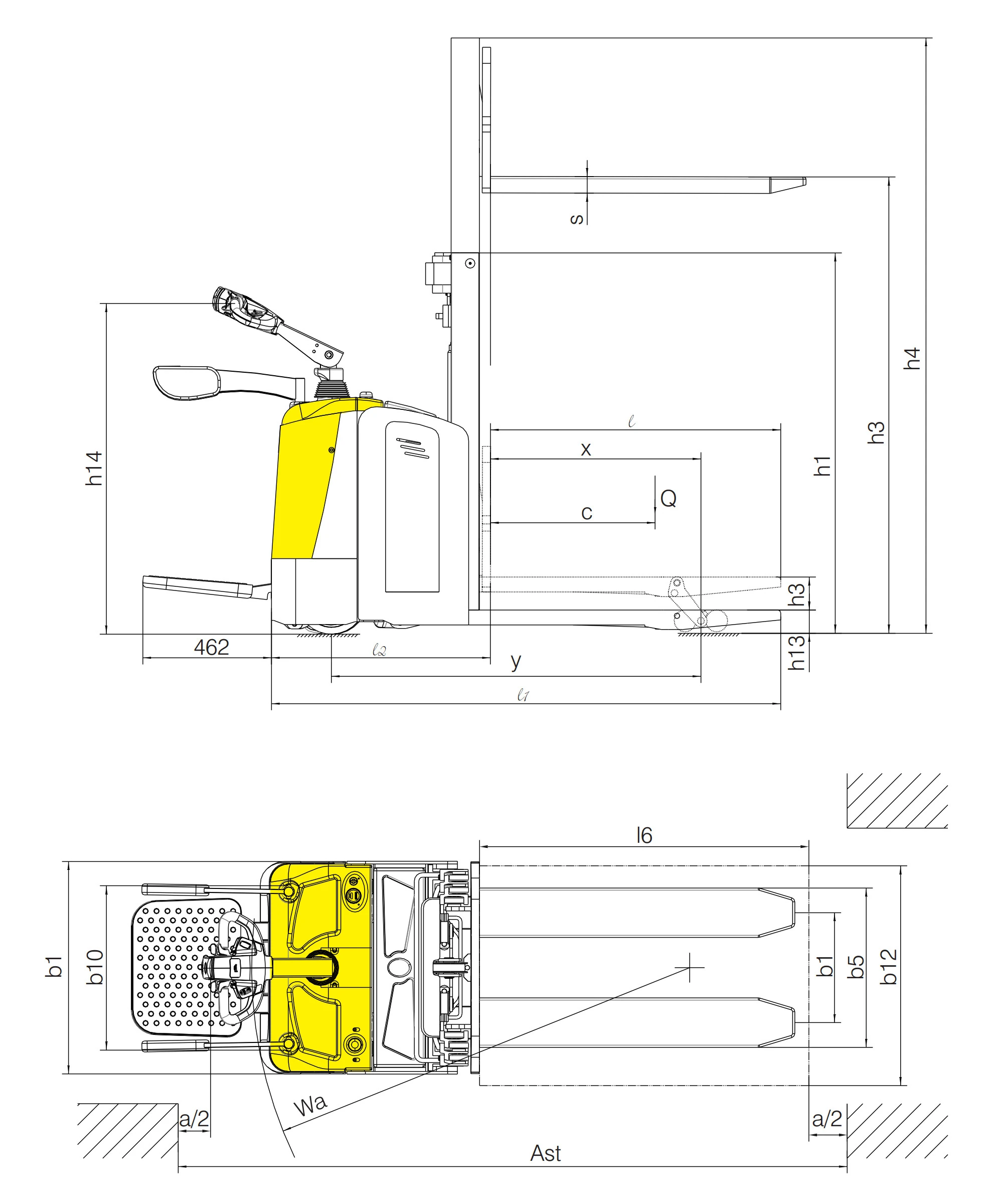

Technical overview
- Model / SKU: EVP20-IP
- Product family: Electric Pallet Trucks
- Operate type: standing
- Load capacity: 2000 kg
- Engine type: AC
- Load capacity - mast fork: 1000 kg
- Load capacity - lower fork: 2000 kg
- Load center: 600 mm
- Load distance, center of drive axle to fork: 767 mm
- Tyre size, front: 250x80mm
- Tyre size, rear: 80x70mm
- Additional wheels (dimensions): 127x57mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/4
- Max. lift height: 1600 mm, 2000 mm, 2500 mm
- Height, mast lowered: 1082/1212/1382mm
- Height, mast extended: 2118/2508/3018mm
- Initial lift: yes
- Height of tiller min/max: 1150/1430mm
- Fork height, lowered: 90 mm
- Overall length: 1898/1948mm
- Length to face of forks: 798 mm
- Overall width: 775 mm
- Fork dimensions: 54x180x1100mm (1150)
- Width overall forks: 570/650mm
- Aisle width for pallets 1000x1200mm: 2098/2148mm
- Aisle width for pallets 800x1200mm: 2198 mm
- Turning radius: 1600 mm
- Travel speed, laden/unladen: 9.0/9.1km/h
- Lifting speed laden/unladen: 0.11/0.15m/s
- Lowering speed laden/unladen: 0.18/0.18m/s
- Folding platform: yes
- Electric power steering: yes
- Service brake: electromagnetic braking
- Battery type/voltage/capacity: LA/24/240, LFP/24/125
- Battery weight: 235 kg
- Battery dimensions (I/W/H): 750x170x570mm
- Service weight (with battery): 1130 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Max. lift height | 1600 mm, 2000 mm, 2500 mm |
|---|---|
| Battery type/voltage/capacity | 24v-125ah, 24v-240ah |
| Operate type | standing |
| Load capacity | 2000 kg |
| Engine type | AC |
| Load capacity - mast fork | 1000 kg |
| Load capacity - lower fork | 2000 kg |
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 767 mm |
| Tyre size, front | 250x80mm |
| Tyre size, rear | 80x70mm |
| Additional wheels (dimensions) | 127x57mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/4 |
| Height, mast lowered | 1082/1212/1382mm |
| Height, mast extended | 2118/2508/3018mm |
| Initial lift | yes |
| Height of tiller min/max | 1150/1430mm |
| Fork height, lowered | 90 mm |
| Overall length | 1898/1948mm |
| Length to face of forks | 798 mm |
| Overall width | 775 mm |
| Fork dimensions | 54x180x1100mm (1150) |
| Width overall forks | 570/650mm |
| Aisle width for pallets 1000x1200mm | 2098/2148mm |
| Aisle width for pallets 800x1200mm | 2198 mm |
| Turning radius | 1600 mm |
| Travel speed, laden/unladen | 9.0/9.1km/h |
| Lifting speed laden/unladen | 0.11/0.15m/s |
| Lowering speed laden/unladen | 0.18/0.18m/s |
| Folding platform | yes |
| Electric power steering | yes |
| Service brake | electromagnetic braking |
| Battery weight | 235 kg |
| Battery dimensions (I/W/H) | 750x170x570mm |
| Service weight (with battery) | 1130 kg |
