Pillar Jib Crane (NSD) 270° 150-2000 kg 2-7 m

Name: Pillar Jib Crane (NSD) 270° 150-2000 kg 2-7 m
Brand: Delacco
SKU: NSD
Availability: InStock

SKU root: NSD | Market: EN | Locale: en

Price Configure your crane below — live price, weight and shipping update as you choose.

Brochure (PDF)

Categories: Pillar Jib Cranes

Volume pricing — save up to 12% Discount is calculated automatically on the cart subtotal.

Quantity	Discount
1 unit	—
2	−3%
3–4	−5%
5–9	−8%
10+	−12%

+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.

Configure your crane

Select capacity, span and options. Price, weight and shipping update live.

1 Max capacity — kg

2 Span — m

Height under beam (HSF)

Standard height under beam = 3 m. Adjustable in 0.1 m steps up to 4 m; each extra 0.1 m is priced per model. Above 4 m: consult us.

Floor fixation

We strongly recommend one of our anchoring kits; we cannot be held liable for any other attachment system. The cast-in template + anchor rods are embedded in a new concrete foundation; the splitable base plate bolts onto an existing slab of sufficient depth via a chemical-anchor kit.

Chain hoist

Add a manual or electric chain hoist to the quote, or supply your own. The hoist must be operated strictly within the crane's rated SWL.

Manual hoist capacity

Manual hoist lift

GIS GP electric chain hoist

Electric chain hoist — configuration

Every option in this panel belongs to the GIS GP electric chain hoist bundled with your jib crane. It is produced and invoiced as a separate item; the jib-crane options stay outside this panel.

Electric hoist — intensity of use

How will you use the electric hoist?

Each duty class has its own capacity envelope: the heavier the use, the lower the rated weight, so a heavier class may pull a larger GP sub-model. Selecting a class lighter than your real-world use voids the manufacturer warranty and risks motor failure.

GIS GP electric hoist capacity

GIS GP electric hoist lift height

Rotation locking

Mechanical lock to fix the boom in a position.

Beam trolley (manual / own hoist)

Push-travel or hand-chain geared trolley for the I-beam, rated to the crane's capacity.

Hoist power supply (feeding line)

Galvanised rail with flat cable on trolleys that powers an electric chain hoist along the whole span — whether you buy the hoist here or supply your own. The mobile-pendant version adds two separate parallel rails so the 4-button control pendant travels independently of the hoist.

Rotation stops (270°)

Mechanical end stops that limit the boom's 270° swing. Weld-on stops are fixed at assembly; adjustable stops are repositionable and priced by the mounting offset (cote a).

Hoist adjustable bumpers

Adjustable bumpers for 2 beam ends (beam width 91-300 mm).

Rotation slowing device

Damper to slow boom swing — installs without welding.

Lockable main switch

20A lockable main switch under enclosure (price TBD pending Comege catalog page).

Cover for the lockable switch

Weather cover for the lockable main switch (outdoor use).

Rigging ring

Welded rigging ring under the I-beam for the hoist.

Paint system

Standard finish is 60 µm C2 polyester powder, RAL 1028 yellow. C3 systems (120 µm on epoxy primer) are for outdoor service.

Packaging

Standard packing is shrink film for road transport. Wooden support is required for sea freight.

Structural calculation note

Optional engineering document (note de calcul) certifying the structural reactions of your specific configuration. Required by some inspectors and insurers when commissioning the crane.

Delivery option

Express options shorten production by 1 or 2 weeks at a price premium.

Configuration —

Net price —

Quantity

Volume pricing — save up to 12 %

Quantity	Discount

Bundle promo: extra 3 % off when this order combines items from at least two product categories (e.g. a hoist + a jib crane).

Price breakdown

Net total (excl. VAT)	—

Estimated weight —
Lead time —
Mounting kit level —

Shipping estimate

Delivery country

—

Enter your delivery country above to see an indicative freight estimate.

Request quote

Share your project details and we will get back with a tailored quote.

Full name

Phone

Company

Estimated quantity

Project details

The NSD (Comege PFI) is a 270° partial-rotation pillar jib crane: a self-standing column anchored to the floor, carrying an underbraced steel I-beam boom that swings 270° for wide coverage of a workstation. It is built for both indoor and outdoor use and is manual-slewing only.

Key features

270° partial rotation on a floor-anchored pillar with an underbraced (reverse-jib) steel I-beam boom
Capacity 150-2000 kg; spans 2-7 m; standard height under beam 3 m, adjustable in 0.1 m steps up to 4 m (above 4 m on request)
Manual slewing only — this crane type cannot be motorized
Floor fixation by cast-in installation template + anchor rods, or a bolt-down splitable base plate with a chemical-anchor kit
Manual or GP electric chain hoist with a beam trolley can be added in the configurator and bundled into the quote
Grinding SA 2.5 + 60 µm C2 polyester powder paint, RAL 1028 yellow finish; outdoor C3 paint systems available
Theoretical deflection under nominal load ≈ 1/250 of (span + height); max hoisting speed 16 m/min
Complies with the Machinery Directive 2006/42/EC

Technical overview

Model / SKU: NSD (Comege PFI)
Product family: Pillar Jib Cranes
Load capacity: 150 / 250 / 500 / 1000 / 1600 / 2000 kg
Span: 2-7 m (0.5 m increments)
Rotation: 270° partial rotation (manual)
Height under beam: 3 m standard, adjustable to 4 m
Finish: RAL 1028 yellow (C2 indoor; C3 outdoor available)

Configure capacity, span, height under beam, fixation, hoist and finish, then add the product to the quote list for delivery terms and customer-specific configurations.

Attributes

Load capacity	150 kg, 250 kg, 500 kg, 1000 kg, 1600 kg, 2000 kg
Span	2 m, 3 m, 4 m, 5 m, 6 m, 7 m
Rotation	270° partial rotation
Brand	DELACCO
Comege Model	PFI
Compliance	{"machinery_directive": "2006/42/EC"}

Capacity [kg]	Spans [m]	I-beam	Base price [€]
150	2-7	180-240	1 413-2 892
250	2-7	180-300	1 414-3 869
500	2-7	180-360	1 637-4 938
1000	2-6	240-360	2 423-5 712
1600	2-5	300-360	3 225-5 537
2000	2-5	300-450	3 226-6 789

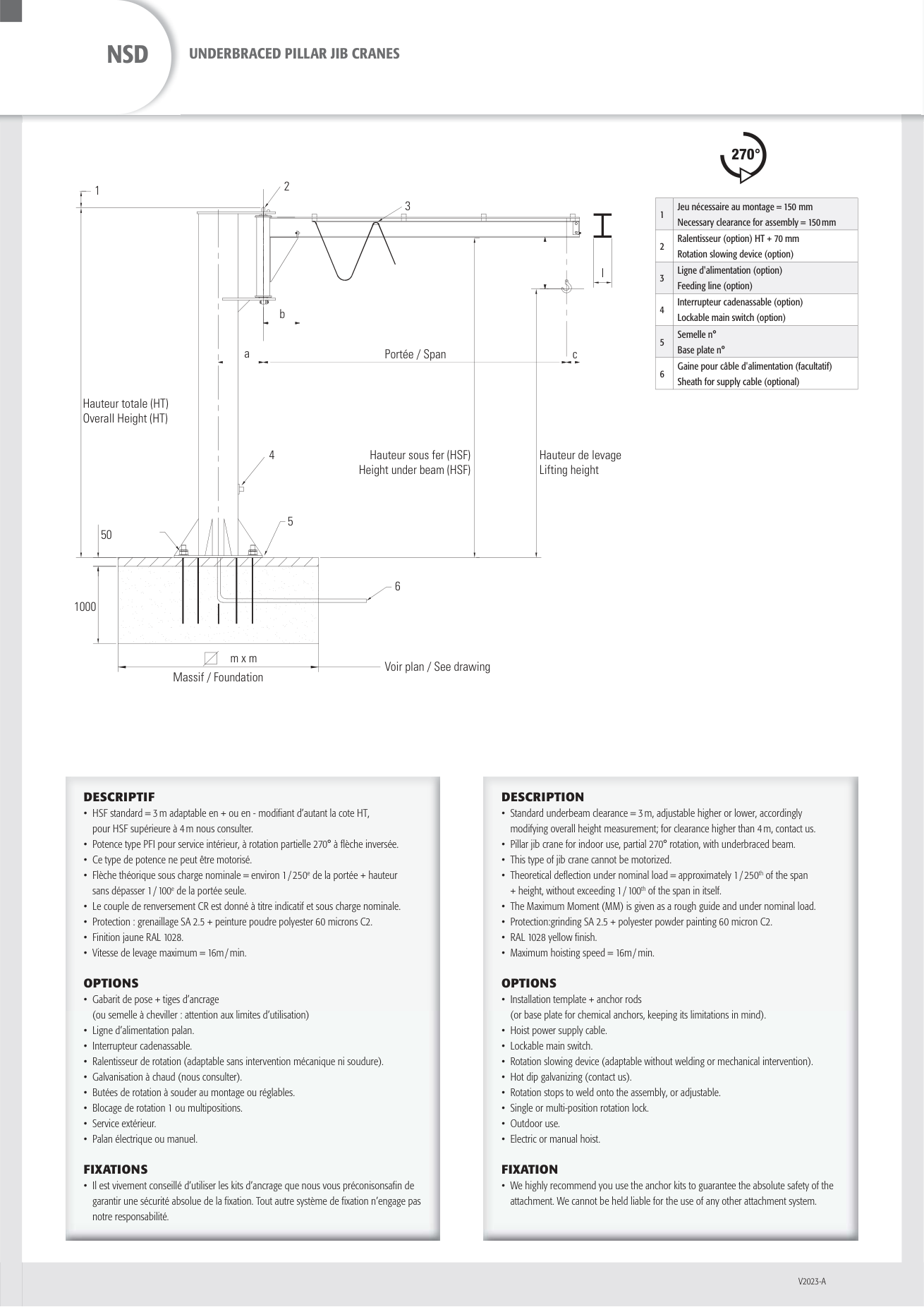

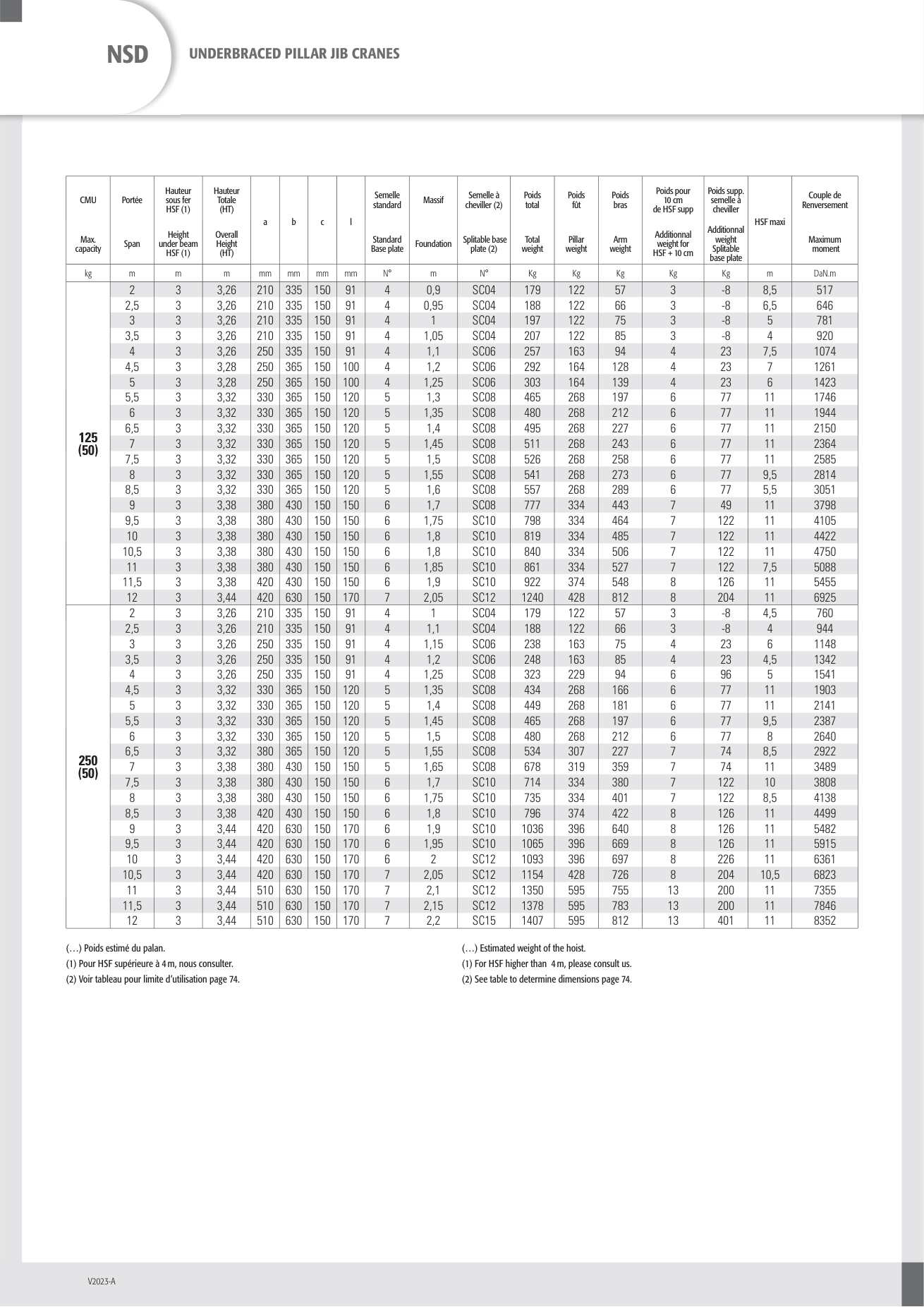

Base price is for the standard 3 m height under beam; each extra 0.1 m of height, fixation, hoist and finish are priced in the configurator. This crane is manual-slewing (270°) and cannot be motorized. Per-span dimensions, weights and reactions follow the V2023-A datasheet.

Pillar Jib Crane (NSD) 270° 150-2000 kg 2-7 m From 1.413,00 EUR
