Low-Profile Wall Jib Crane with Trolley (NZDK) 50-100 kg 2-5 m

Name: Low-Profile Wall Jib Crane with Trolley (NZDK) 50-100 kg 2-5 m
Brand: Delacco
SKU: NZDK
Availability: InStock

SKU root: NZDK | Market: EN | Locale: en

Price Configure your crane below — live price, weight and shipping update as you choose.

Categories: Wall Jib Cranes

Volume pricing — save up to 12% Discount is calculated automatically on the cart subtotal.

Quantity	Discount
1 unit	—
2	−3%
3–4	−5%
5–9	−8%
10+	−12%

+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.

Configure your crane

Select capacity, span and options. Price, weight and shipping update live.

1 Max capacity — kg

2 Span — m

Mounting kit

Auto-suggested KF level depends on capacity and span. Type A = belts on IPE/HEA/HEB or concrete post. Type C = clamps on IPE/HEA/HEB. FCM = wall mount with chemical anchors.

Chain hoist

Add a chain hoist to the crane, or supply your own.

Manual hoist capacity

Pick the RLD model. Only models that match the crane SWL are shown.

Manual hoist lift

Load chain length (hand chain is always 1 m shorter).

Rotation locking

Mechanical lock to fix the boom in a position.

Rotation stops

Hard stops limiting boom rotation. Adjustable price depends on a-dimension.

GIS GP electric chain hoist

Electric chain hoist — configuration

Every option in this panel belongs to the GIS GP electric chain hoist bundled with your jib crane. It is produced and invoiced as a separate item; the jib-crane options stay outside this panel.

Electric hoist — intensity of use

How will you use the electric hoist?

Each duty class has its own capacity envelope: the heavier the use, the lower the rated weight, so a heavier class may pull a larger GP sub-model. Selecting a class lighter than your real-world use voids the manufacturer warranty and risks motor failure.

GP electric hoist capacity

GP electric hoist lift height

Hoist power supply (feeding line)

The COMEGYSTEME hollow profile has the power feed built in: cable trolleys and the hoist power-supply cable are included in the base price — also when you mount your own electric chain hoist.

Lockable main switch

20A lockable main switch under enclosure (price TBD pending Comege catalog page).

Standpipe (3 m)

3 m standpipe to host the main switch (price TBD).

Paint system

Standard finish is 60µm C2 polyester powder, RAL 1028 yellow (included).

Packaging

Standard packing is shrink film for road transport. Wooden support is required for sea freight.

Structural calculation note

Optional engineering document (note de calcul) certifying the structural reactions of your specific configuration. Required by some inspectors and insurers when commissioning the crane.

Delivery option

Express options shorten production by 1 or 2 weeks at a price premium.

Configuration —

Net price —

Quantity

Volume pricing — save up to 12 %

Quantity	Discount

Bundle promo: extra 3 % off when this order combines items from at least two product categories (e.g. a hoist + a jib crane).

Price breakdown

Net total (excl. VAT)	—

Estimated weight —
Lead time —
Mounting kit level —

Shipping estimate

Delivery country

—

Enter your delivery country above to see an indicative freight estimate.

Request quote

Share your project details and we will get back with a tailored quote.

Full name

Phone

Company

Estimated quantity

Project details

Low-profile wall jib crane with trolley where vertical clearance is constrained.

This equipment is manufactured to order and configured according to project-specific technical requirements.

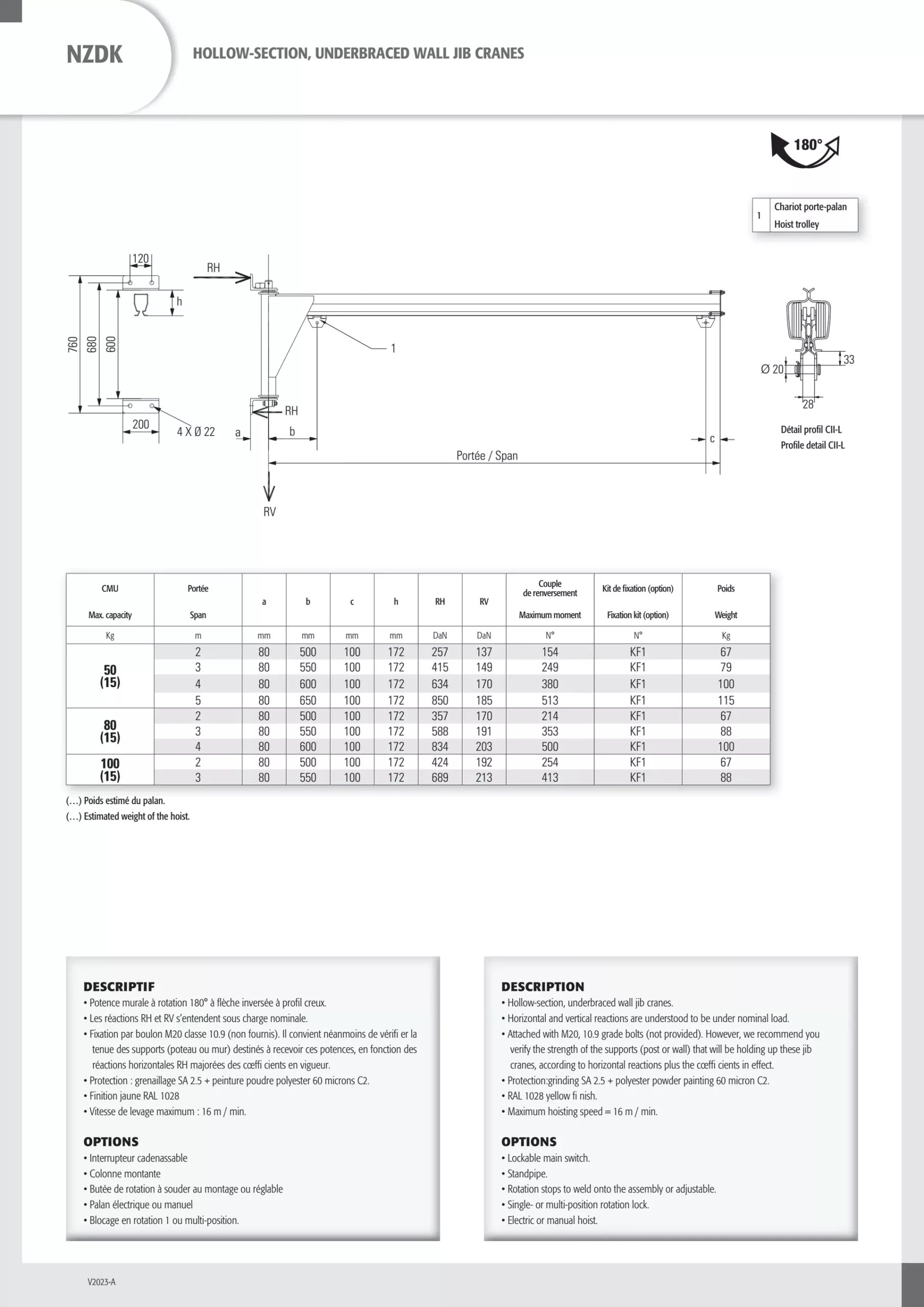

Technical overview

Model / SKU: NZDK
Product family: Wall Jib Cranes
Load capacity: 100kg, 50kg, 80kg
Span: 2000mm, 3000mm, 4000mm, 5000mm
Execution: Made to order
Project workflow: Quote-based engineering validation before production release

Send a quote request for final configuration, lead time and pricing.

Attributes

Load capacity	50kg, 80kg, 100kg
Span	2000mm, 3000mm, 4000mm, 5000mm

Low-Profile Wall Jib Crane with Trolley (NZDK) 50-100 kg 2-5 m From 807,00 EUR
