Geared Beam Trolley Wide Flange (MGW-TROLLEY) 1000-5000 kg
Price
From 150,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Manual Trolley Hoists
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Geared beam trolley with manual chain drive, wide-flange version — a movable suspension point moved along the beam by pulling the hand chain through a gear mechanism, for precise, controlled positioning on wide I-beams. Working load limits from 1,000 to 5,000 kg, flange range 160–305 mm. Standard maneuvering chain 2.5 m, extendable on request.
Key features
- Geared travel by hand chain via a gear mechanism — accurate, controlled positioning of heavy loads
- Standard maneuvering chain 2.5 m; extendable on request
- Suspension point for hoists on a wide range of I-beams (INP, IPE, IPB)
- Wheel track adjustment mechanism centres the hoist on the flange
- Wheels with bearings for excellent rolling; for running-surface slopes up to 20%
- Working load limit (WLL): 1,000 – 5,000 kg
- Complies with the Machinery Directive 2006/42/EC; made to the harmonized standard EN 13155
- Marked with manufacturer's mark, CE mark, capacity, factory number and year of production
Technical overview
- Model / SKU: MGW-TROLLEY
- Product family: Manual Trolley Hoists
- Load capacity: 1000 kg, 2000 kg, 3000 kg, 5000 kg
- Flange width range: 160–305 mm
- Hand chain length: 2.5 m standard, up to 10 m (extendable on request)
Add the product to the quote list for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1000 kg, 2000 kg, 3000 kg, 5000 kg |
|---|---|
| Hand chain length | 2.5 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m, 10 m |
| Brand | DELACCO |
| Compliance | {"harmonized_standard": "EN 13155", "machinery_directive": "2006/42/EC"} |
| Flange Kind | Wide flange |
| Standard Chain M | 2.5 |
| Code | WLL [kg] | Flange width M [mm] | A [mm] | B [mm] | C [mm] | D [mm] | F [mm] | G [mm] | H [mm] | S [mm] | Mass [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MGW-TROLLEY-1000 | 1,000 | 160–305 | 388 | 238 | 183 | 30 | 3 | 36 | 95 | 43 | 13 |
| MGW-TROLLEY-2000 | 2,000 | 160–305 | 400 | 277 | 208 | 35 | 3 | 48 | 106 | 38 | 19 |
| MGW-TROLLEY-3000 | 3,000 | 160–305 | 415 | 324 | 249 | 46 | 3 | 58 | 121 | 40 | 29 |
| MGW-TROLLEY-5000 | 5,000 | 160–305 | 432 | 373 | 297 | 50 | 3 | 65 | 136 | 42 | 46 |

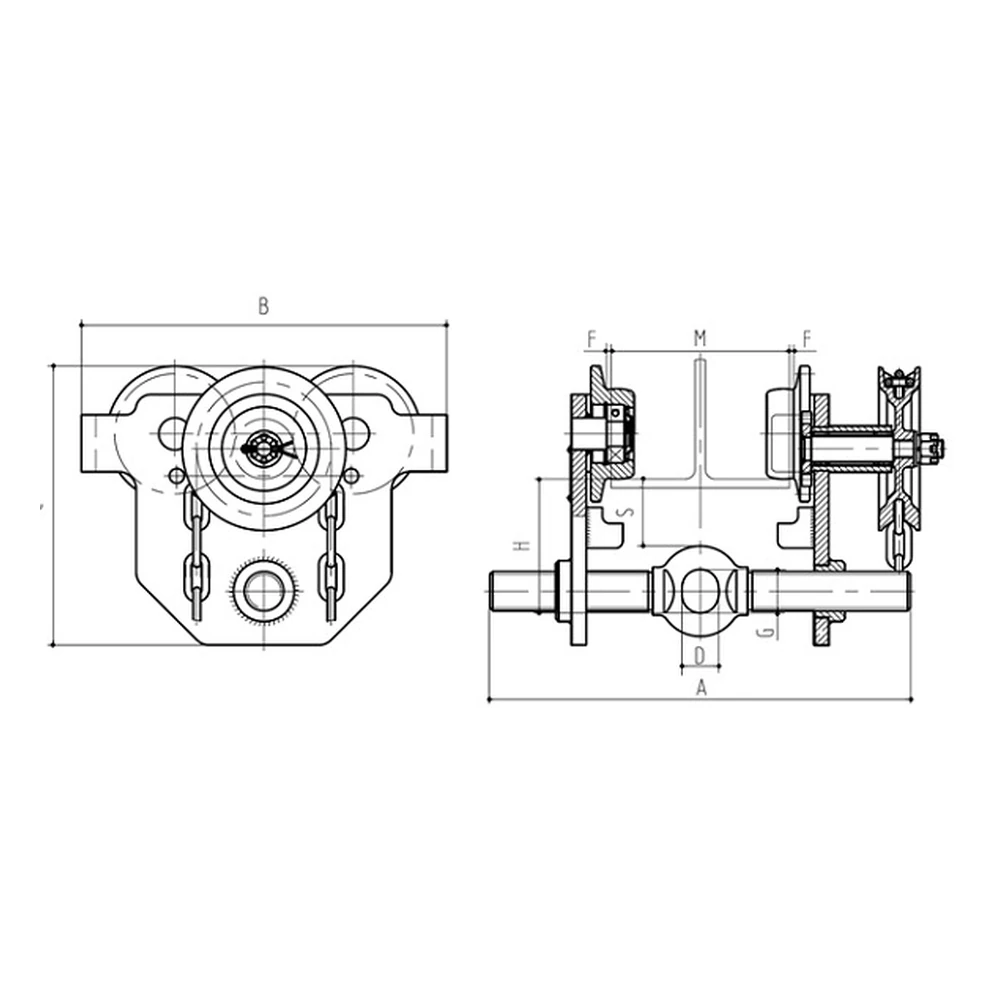

Standard maneuvering chain 2.5 m (extendable on request). Mass is given for the standard 2.5 m chain. Dimensions A, B, C, D, F, G, H and S per the dimensional drawing; M is the recommended beam flange width.
