Geared beam trolley with manual chain drive — a movable suspension point moved along the beam by pulling the hand chain through a gear mechanism, for precise, controlled positioning of heavy loads even on higher beams. Working load limits from 1,000 to 5,000 kg, standard flange range 58–220 mm. Standard maneuvering chain 2.5 m, extendable on request.
Key features
- Geared travel by hand chain via a gear mechanism — accurate, controlled positioning of heavy loads
- Standard maneuvering chain 2.5 m; extendable on request
- Suspension point for hoists on a wide range of I-beams (INP, IPE, IPB)
- Wheel track adjustment mechanism centres the hoist on the flange
- Wheels with bearings for excellent rolling; for running-surface slopes up to 20%
- Working load limit (WLL): 1,000 – 5,000 kg
- Complies with the Machinery Directive 2006/42/EC; made to the harmonized standard EN 13155
- Marked with manufacturer's mark, CE mark, capacity, factory number and year of production
Technical overview
- Model / SKU: MG-TROLLEY
- Product family: Manual Trolley Hoists
- Load capacity: 1000 kg, 2000 kg, 3000 kg, 5000 kg
- Flange width range: 58–220 mm
- Hand chain length: 2.5 m standard, up to 10 m (extendable on request)
Add the product to the quote list for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1000 kg, 2000 kg, 3000 kg, 5000 kg |
|---|---|
| Hand chain length | 2.5 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m, 10 m |
| Brand | DELACCO |
| Compliance | {"harmonized_standard": "EN 13155", "machinery_directive": "2006/42/EC"} |
| Flange Kind | Standard flange |
| Standard Chain M | 2.5 |
| Code | WLL [kg] | Flange width M [mm] | A [mm] | B [mm] | C [mm] | D [mm] | F [mm] | G [mm] | H [mm] | S [mm] | Mass [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MG-TROLLEY-1000 | 1,000 | 58–220 | 354 | 238 | 183 | 30 | 3 | 36 | 95 | 43 | 12.5 |
| MG-TROLLEY-2000 | 2,000 | 66–220 | 362 | 277 | 208 | 35 | 3 | 48 | 106 | 38 | 18 |
| MG-TROLLEY-3000 | 3,000 | 74–220 | 407 | 324 | 249 | 46 | 3 | 58 | 121 | 40 | 28 |
| MG-TROLLEY-5000 | 5,000 | 90–220 | 435 | 373 | 297 | 50 | 3 | 65 | 136 | 42 | 45 |

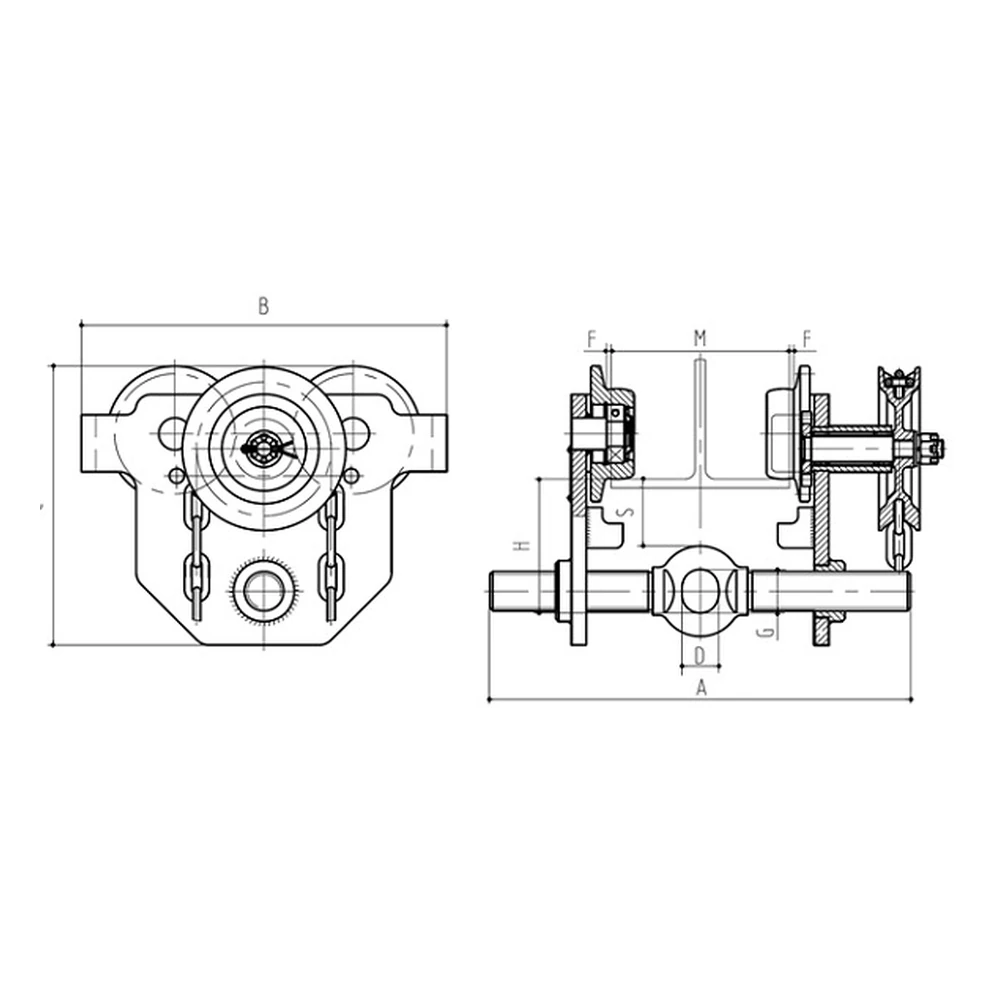

Standard maneuvering chain 2.5 m (extendable on request). Mass is given for the standard 2.5 m chain. Dimensions A, B, C, D, F, G, H and S per the dimensional drawing; M is the recommended beam flange width.
