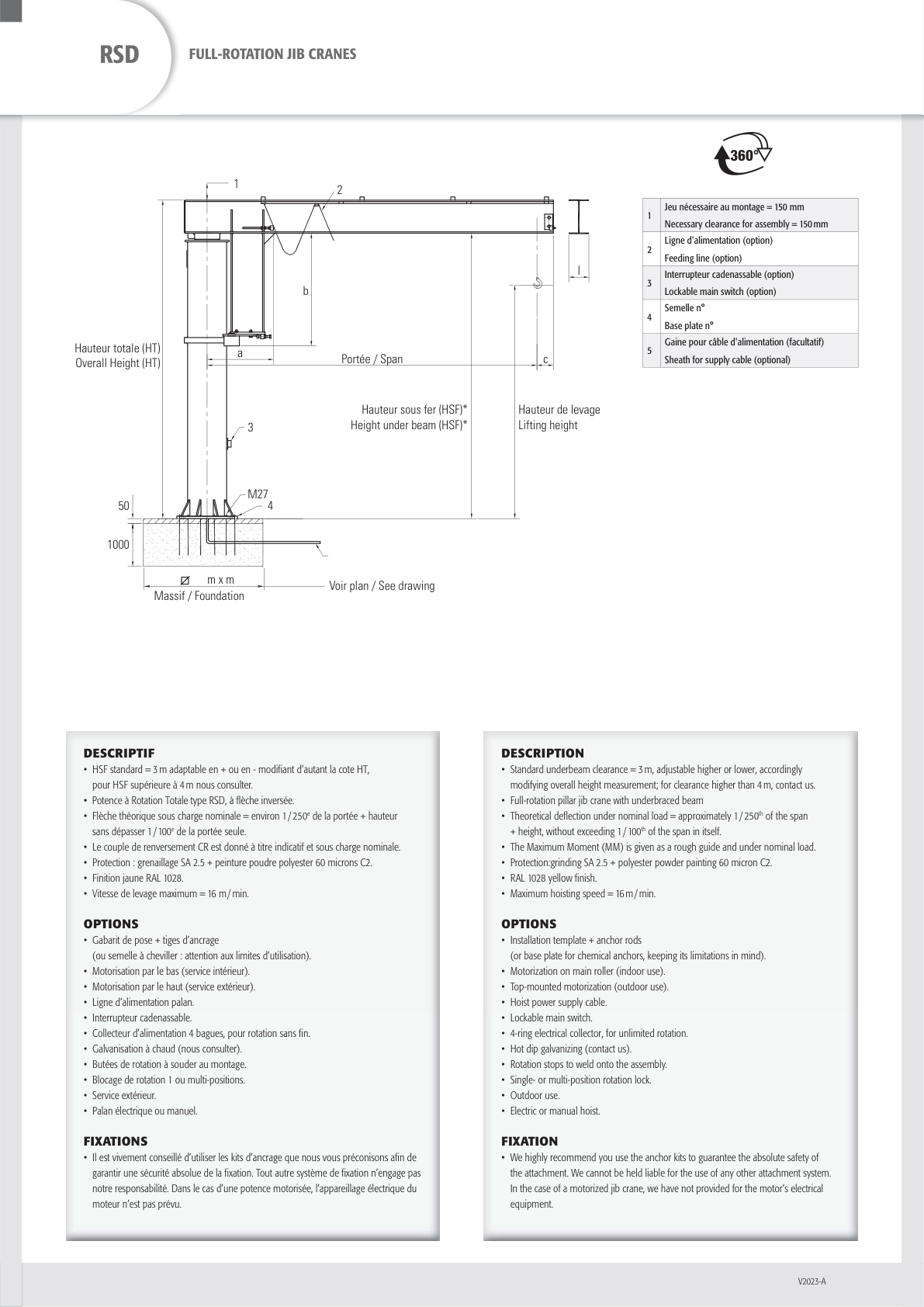

The RSD (Comege PRT) is a full-rotation pillar jib crane: a self-standing column anchored to the floor, carrying an underbraced steel I-beam boom that swings a full 360° for complete circular coverage of a workstation. It is built for both indoor and outdoor use and is offered across a wide capacity and span range.
Key features
- Full 360° rotation on a floor-anchored pillar with an underbraced (reverse-jib) steel I-beam boom for unrestricted circular coverage
- Capacity 150-10000 kg; spans 2-12 m; standard height under beam 3 m, adjustable in 0.1 m steps up to 4 m (above 4 m on request)
- Optional slewing motorization — on the main roller (indoor use) or top-mounted (outdoor use)
- Floor fixation by cast-in installation template + anchor rods, or a bolt-down splitable base plate with a chemical-anchor kit
- Manual or GP electric chain hoist with a beam trolley can be added in the configurator and bundled into the quote
- Grinding SA 2.5 + 60 µm C2 polyester powder paint, RAL 1028 yellow finish; outdoor C3 paint systems available
- Theoretical deflection under nominal load ≈ 1/250 of (span + height); max hoisting speed 16 m/min
- Complies with the Machinery Directive 2006/42/EC
Technical overview
- Model / SKU: RSD (Comege PRT)
- Product family: Full Rotation Jib Cranes
- Load capacity: 150 / 250 / 500 / 1000 / 1600 / 2000 / 2500 / 3200 / 4000 / 5000 / 6300 / 8000 / 10000 kg
- Span: 2-12 m (0.5 m increments)
- Rotation: 360° full rotation
- Height under beam: 3 m standard, adjustable to 4 m
- Finish: RAL 1028 yellow (C2 indoor; C3 outdoor available)
Configure capacity, span, height under beam, motorization, fixation, hoist and finish, then add the product to the quote list for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 150 kg, 250 kg, 500 kg, 1000 kg, 1600 kg, 2000 kg, 2500 kg, 3200 kg, 4000 kg, 5000 kg, 6300 kg, 8000 kg, 10000 kg |
|---|---|
| Span | 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m, 10 m, 11 m, 12 m |
| Rotation | 360° full rotation |
| Brand | DELACCO |
| Comege Model | PRT |
| Compliance | {"machinery_directive": "2006/42/EC"} |
| Capacity [kg] | Spans [m] | I-beam | Base price [€] | On-roller motor | Top motor |
|---|---|---|---|---|---|
| 150 | 2-12 | 180-360 | 1 902-4 664 | yes | yes |
| 250 | 2-12 | 180-400 | 1 902-6 540 | yes | yes |
| 500 | 2-12 | 180-500 | 1 931-8 454 | yes | yes |
| 1000 | 2-12 | 240-600 | 2 741-12 026 | yes | yes |
| 1600 | 2-12 | 300-H600 | 2 954-14 866 | yes | yes |
| 2000 | 2-12 | 300-H600 | 2 964-20 358 | yes | yes |
| 2500 | 2-12 | 360-H650 | 3 425-24 039 | yes | yes |
| 3200 | 2-12 | 360-H700 | 3 552-27 342 | yes | yes |
| 4000 | 2-10 | 450-H700 | 5 295-23 026 | yes | yes |
| 5000 | 2-8 | H400-H600 | 5 924-18 101 | yes | yes |
| 6300 | 2-7 | H400-H600 | 6 590-17 553 | yes | yes |
| 8000 | 2-6 | H450-H600 | 7 049-16 983 | yes | yes |
| 10000 | 2-6 | H500-H700 | 10 098-23 060 | — | yes |

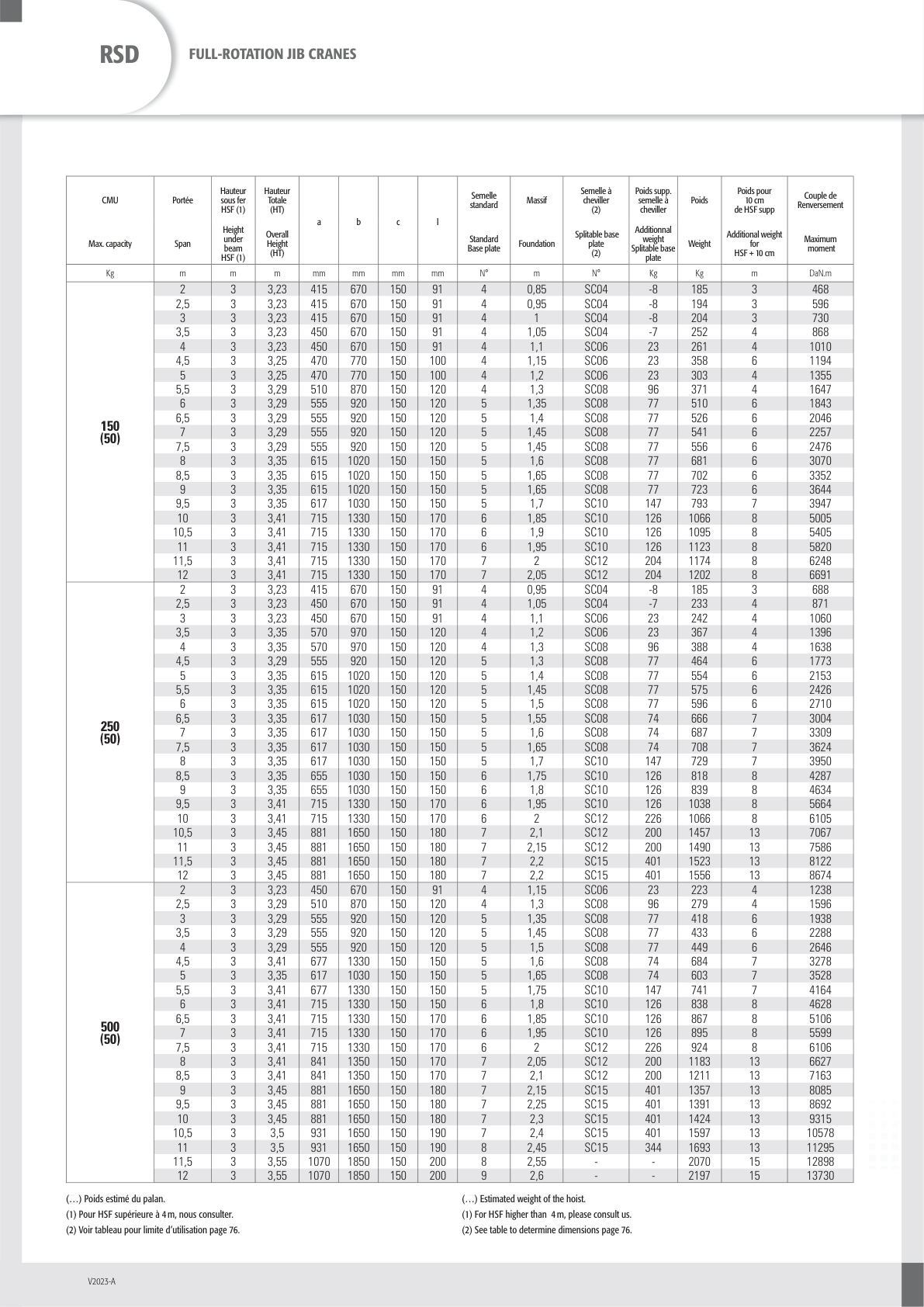

Base price is for the standard 3 m height under beam; each extra 0.1 m of height, motorization, fixation, hoist and finish are priced in the configurator. Heavier capacities use reconstituted H-beams (shown as “H…”). Per-span dimensions, weights and reactions follow the V2023-A datasheet.
