Li-Ion Powered Pallet Jack (EPV15) 1500 kg
Price
1.570,00 EUR
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.

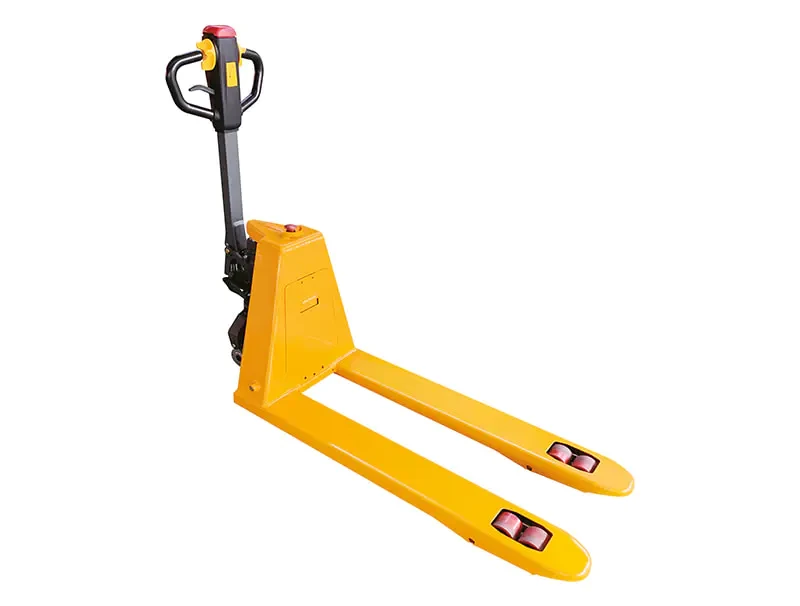

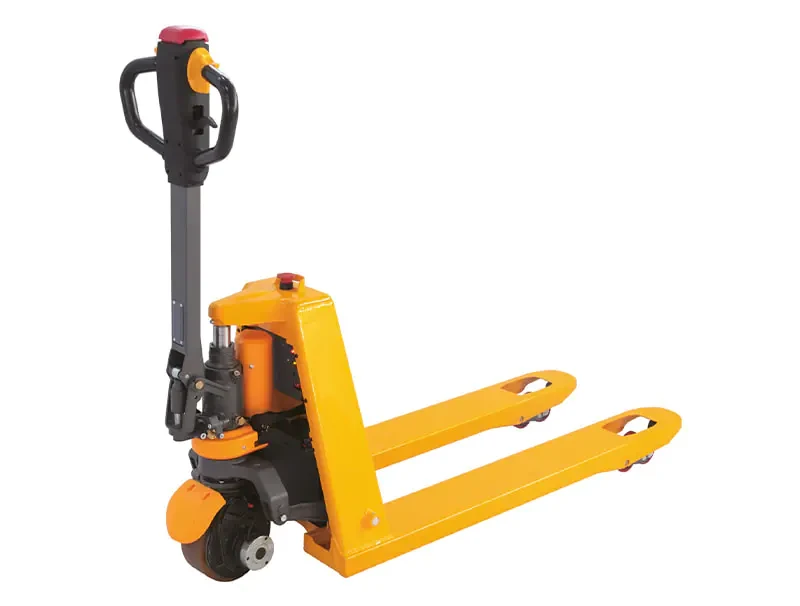

Indoor Li-ion powered pallet jack with 1500 kg capacity, manual pallet truck footprint and a small turning radius — super light and easy to operate, with an external-charging 24V/20Ah battery.
Key features
- Manual-pallet-truck footprint with a small turning radius
- Lithium battery 24V/20Ah; optional 24V/30Ah upgrade
- Ruyi handle with bully switch and high-quality emergency key switch
- Split rocker arm equalises stress for long service life

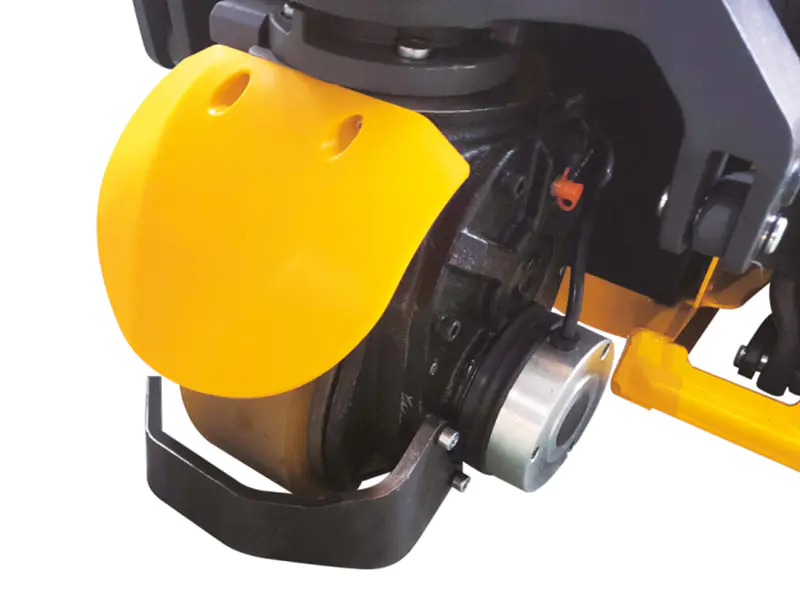

- Horizontal motor on the drive wheel simplifies maintenance

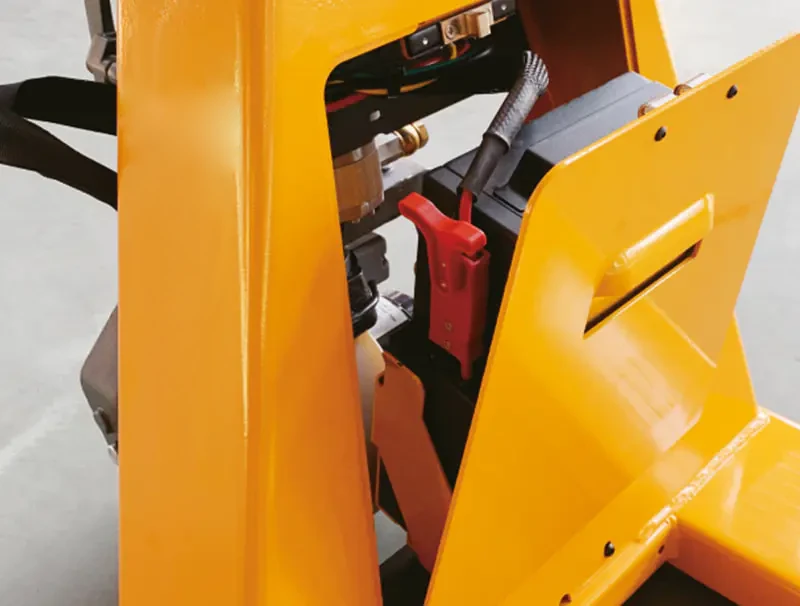

- External charger connector — recharge the battery separately

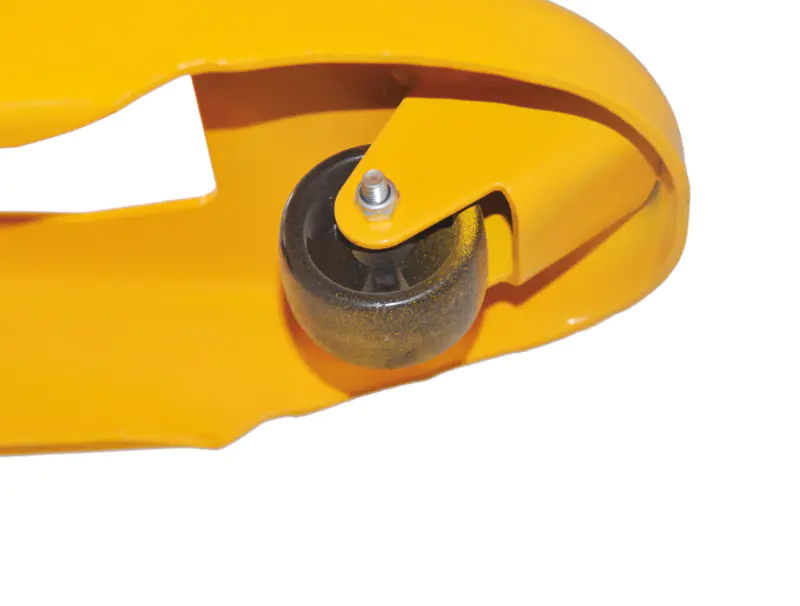

- Options: entry roller, double fork roller

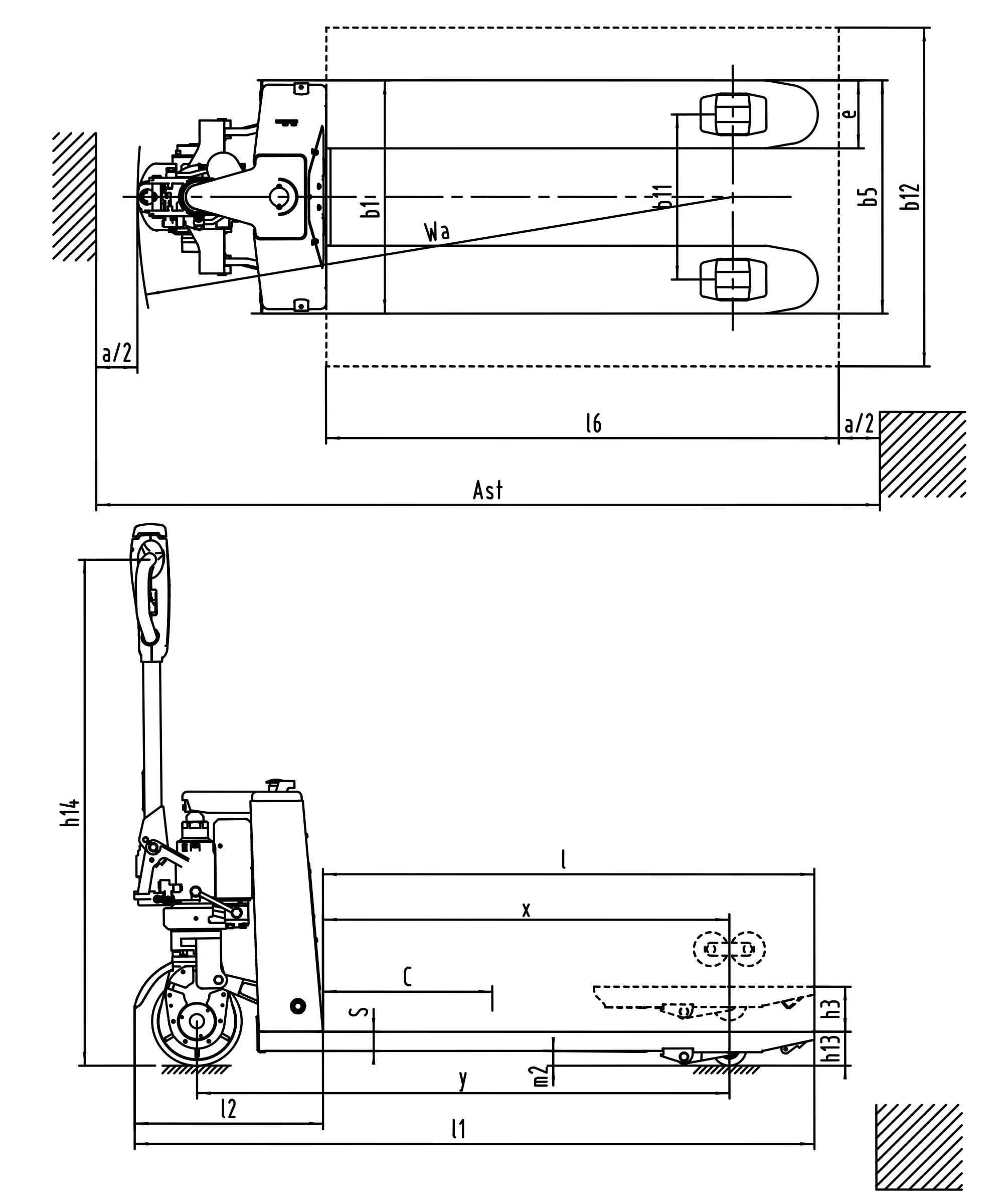

Technical overview
- Model / SKU: EPV15
- Product family: Electric Pallet Trucks
- Load capacity: 1500 kg
- Engine type: DC
- Load center: 600 mm
- Fork height, lowered: 80 mm
- Tyre size, front: 210x70mm
- Tyre size, rear: 80x70mm, 80x93mm
- Max. lift height: 110 mm
- Height of tiller min/max: 635/1200mm
- Overall length: 1580/1650mm
- Length to face of forks: 430 mm
- Overall width: 550/685mm
- Fork dimensions: 53x160x1150mm (1220)
- Width overall forks: 550/685mm
- Aisle width for pallets 1000x1200mm: 2180/2250mm
- Aisle width for pallets 800x1200mm: 2050/2085mm
- Turning radius: 1380/1450mm
- Travel speed, laden/unladen: 4.3/4.5km/h
- Initial lift: no
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LFP/24/20
- Battery weight: 5.5 kg
- Service weight (with battery): 114 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1500 kg |
|---|---|
| Engine type | DC |
| Load center | 600 mm |
| Fork height, lowered | 80 mm |
| Tyre size, front | 210x70mm |
| Tyre size, rear | 80x70mm, 80x93mm |
| Max. lift height | 110 mm |
| Height of tiller min/max | 635/1200mm |
| Overall length | 1580/1650mm |
| Length to face of forks | 430 mm |
| Overall width | 550/685mm |
| Fork dimensions | 53x160x1150mm (1220) |
| Width overall forks | 550/685mm |
| Aisle width for pallets 1000x1200mm | 2180/2250mm |
| Aisle width for pallets 800x1200mm | 2050/2085mm |
| Turning radius | 1380/1450mm |
| Travel speed, laden/unladen | 4.3/4.5km/h |
| Initial lift | no |
| Folding platform | no |
| Electric power steering | no |
| Battery type/voltage/capacity | LFP/24/20 |
| Battery weight | 5.5 kg |
| Service weight (with battery) | 114 kg |
