Electric Low Level Order Picker (NKV10/NKV12) 1000-1200 kg
Price
On request
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.

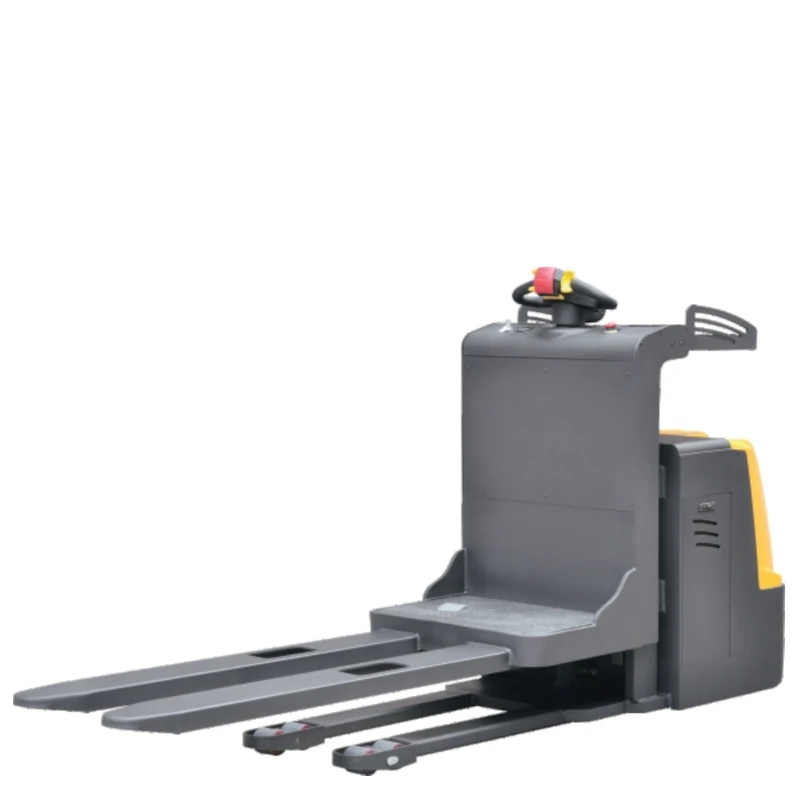

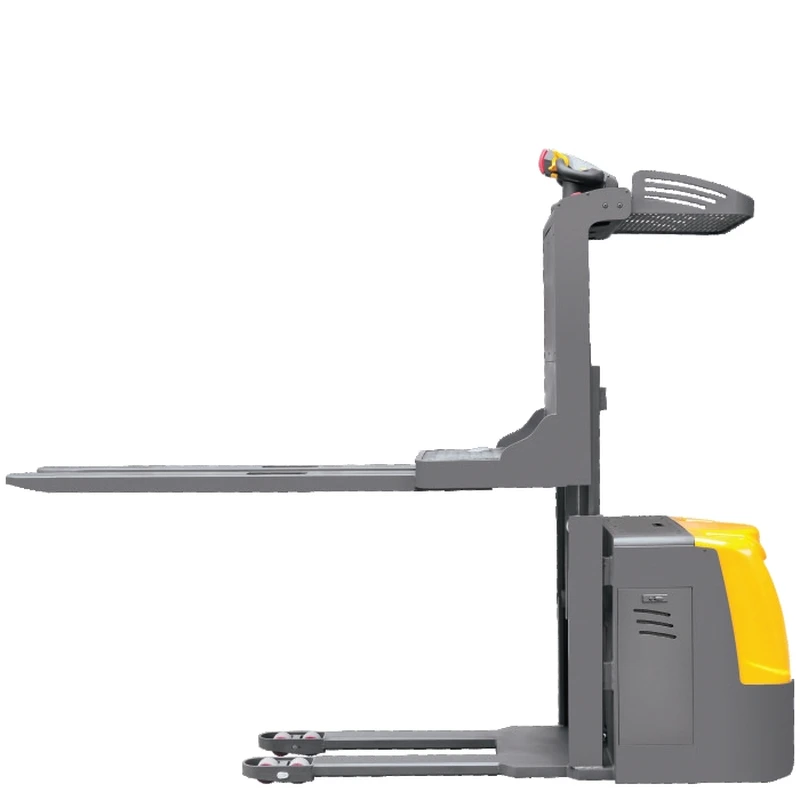

Electric low level order picker with 1000-1200 kg capacity, 1.2 m platform lift and a 60 kg storage compartment, with EPS power steering and combined regenerative and electromagnetic braking.
Key features
- 1000-1200 kg capacity with 1.2 m max platform lift
- 60 kg storage compartment in front of the operator
- EPS power steering handle for effortless manoeuvrability
- Ergonomic human-engineering design for comfortable operation
- Combined regenerative and electromagnetic braking

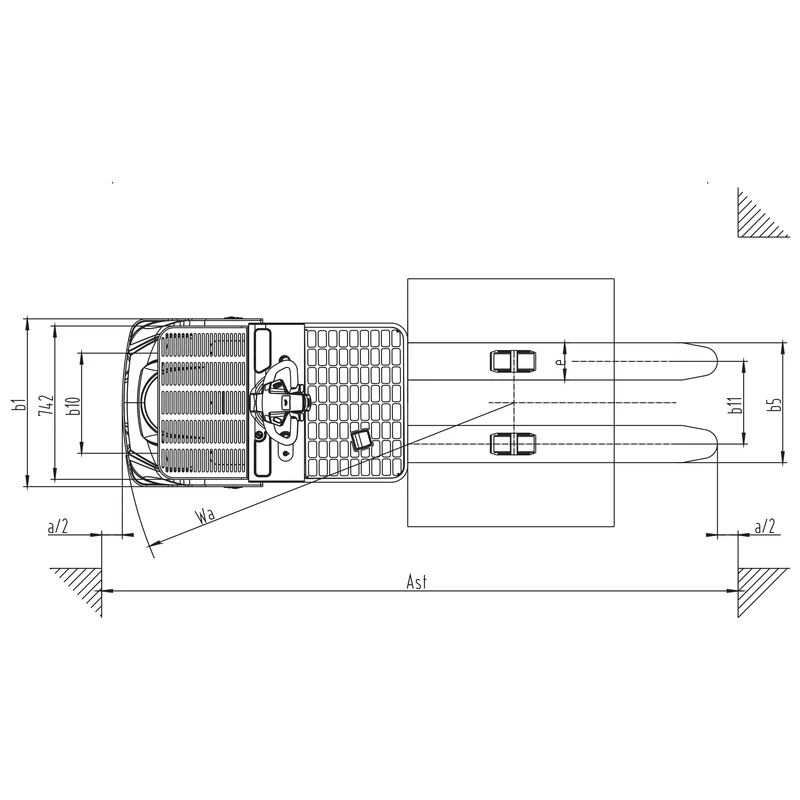

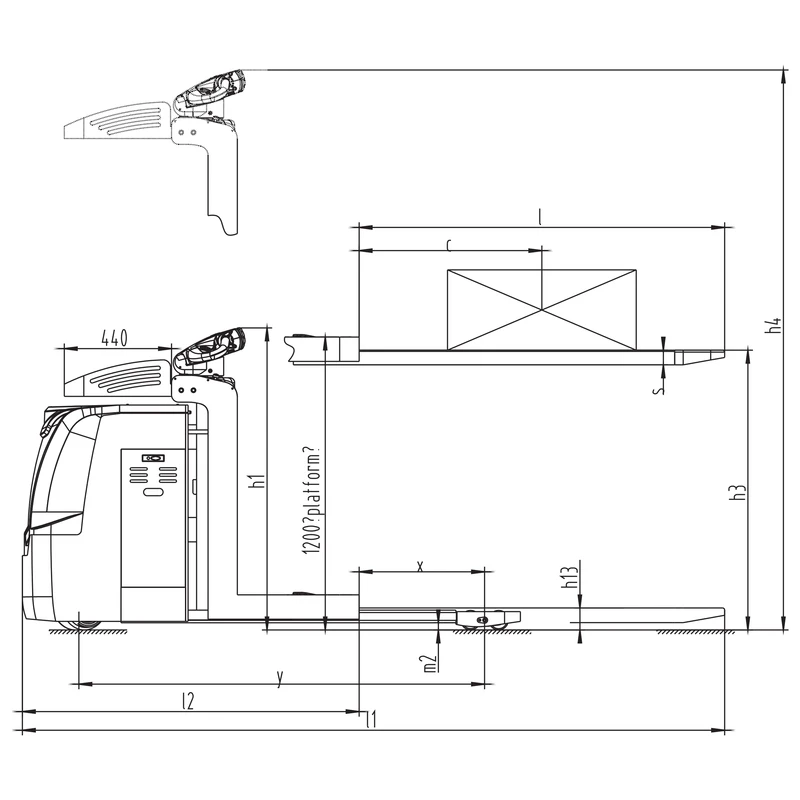

Technical overview
- Model / SKU: NKV10_NKV12
- Product family: Order Pickers

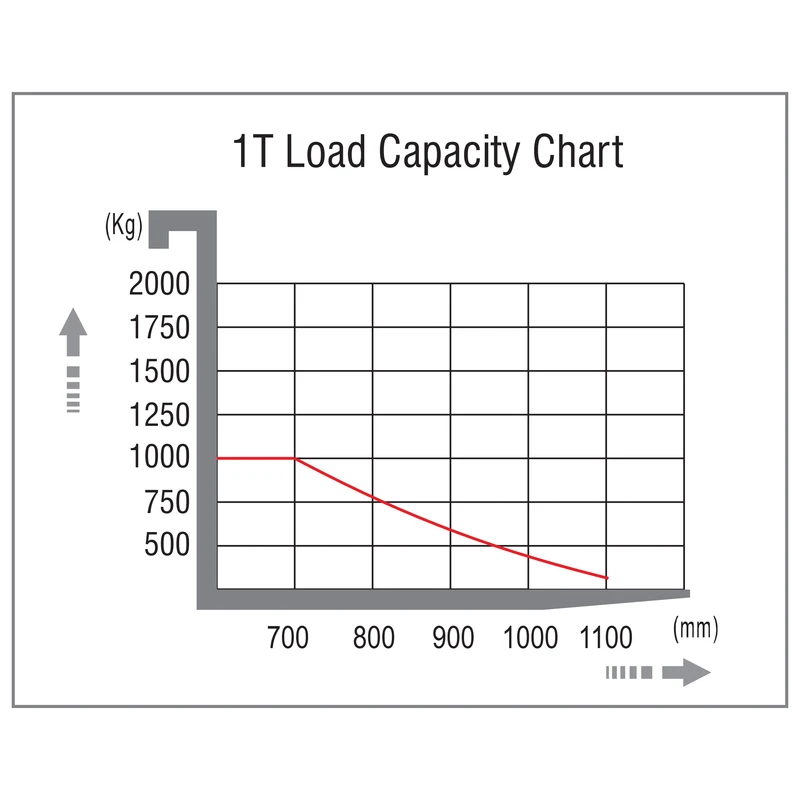

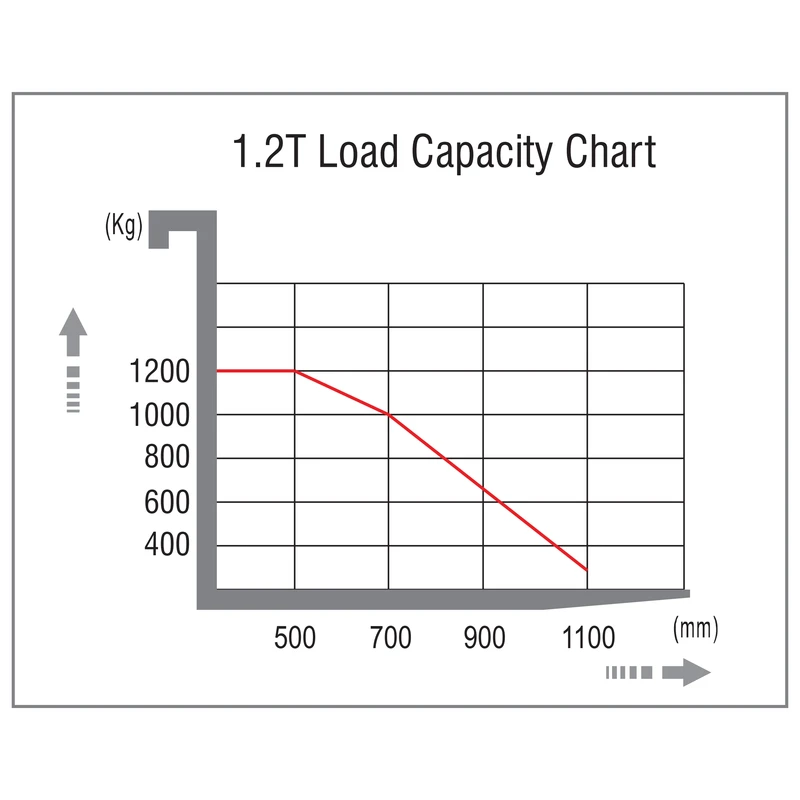

- Load capacity: 1000 kg, 1200 kg
- Load center: 500 mm, 700 mm
- Load distance, center of drive axle to fork: 515 mm
- Tyre size, front: 250x80mm
- Rear wheel size (double): 80x84mm
- Additional wheels: Φ150×60mm
- Number of wheels, front/rear (x=driving) Φ: 1X+1/4
- Height, mast lowered: 1275 mm
- Max. lift height: 1140 mm
- Height, mast extended: 2335 mm
- Fork height, lowered: 90 mm
- Overall length: 2455 mm, 2885 mm
- Coupling height: 1383 mm
- Overall width: 812 mm
- Fork dimensions: 60x180x1500mm
- Width overall forks: 580 mm
- Ground clearance: 29 mm
- Aisle width for pallets 1000x1200mm: 2904 mm
- Aisle width for pallets 800x1200mm: 2904 mm
- Turning radius: 1897 mm
- Travel speed, laden/unladen: 7.0/7.1km/h
- Lifting speed laden/unladen: 0.1/0.14m/s
- Lowering speed laden/unladen: 0.10/0.10m/s
- Battery type/voltage/capacity: LA/24/240
- Battery dimensions (I/W/H): 654x440x254mm
- Service weight (with battery): 1195 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1000 kg, 1200 kg |
|---|---|
| Load center | 500 mm, 700 mm |
| Load distance, center of drive axle to fork | 515 mm |
| Tyre size, front | 250x80mm |
| Rear wheel size (double) | 80x84mm |
| Additional wheels | Φ150×60mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+1/4 |
| Height, mast lowered | 1275 mm |
| Max. lift height | 1140 mm |
| Height, mast extended | 2335 mm |
| Fork height, lowered | 90 mm |
| Overall length | 2455 mm, 2885 mm |
| Coupling height | 1383 mm |
| Overall width | 812 mm |
| Fork dimensions | 60x180x1500mm |
| Width overall forks | 580 mm |
| Ground clearance | 29 mm |
| Aisle width for pallets 1000x1200mm | 2904 mm |
| Aisle width for pallets 800x1200mm | 2904 mm |
| Turning radius | 1897 mm |
| Travel speed, laden/unladen | 7.0/7.1km/h |
| Lifting speed laden/unladen | 0.1/0.14m/s |
| Lowering speed laden/unladen | 0.10/0.10m/s |
| Battery type/voltage/capacity | LA/24/240 |
| Battery dimensions (I/W/H) | 654x440x254mm |
| Service weight (with battery) | 1195 kg |
