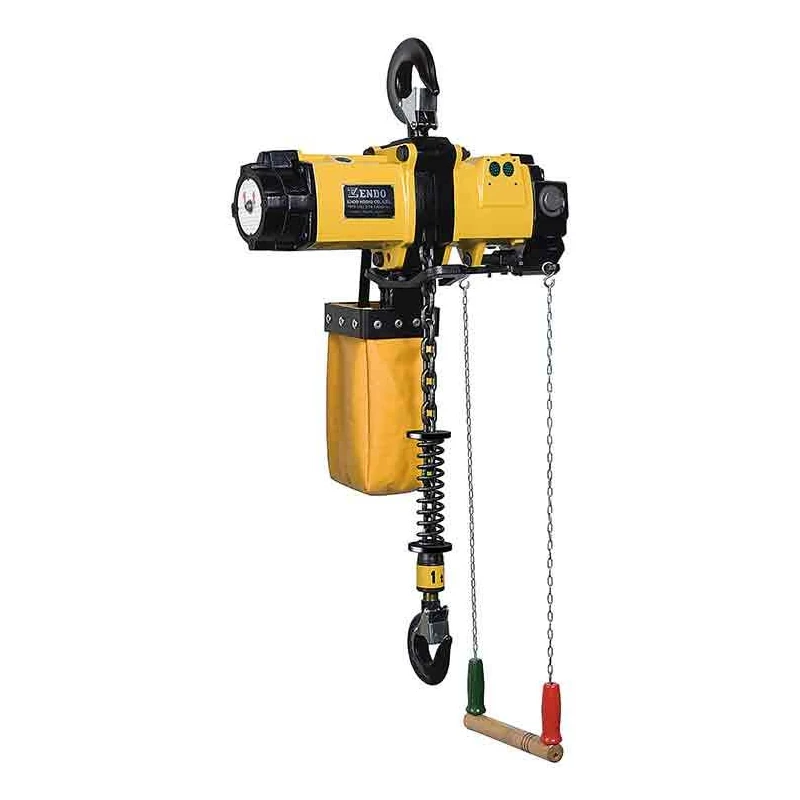

ENDO ATEX Pneumatic Chain Hoist (EHL-TS Series) 250-3000 kg
Price
From 4.310,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Pneumatic Chain Hoists
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Japanese-made ATEX pneumatic chain hoist EHL-TS series (EHL-025TS to EHL-3TS) for 250 to 3000 kg loads with stepless pull-chain speed control or optional pendant push-button control, automatic friction brake and a 3 m grade-DAT alloy load chain extendable up to 20 m.
Key features
- Capacities 250, 500, 1000 and 3000 kg (EHL-025TS to EHL-3TS)
- Standard pull-chain control handle — speed follows the pulling force
- Optional pendant push-button control with safety STOP (PCS-2BV1/PCS-2BV2)
- Lifting speeds: 12/16/18 (250 kg) down to 2/2.6/3 m/min (3000 kg)
- Automatic friction brake with no adjustment needed
- Standard 3 m grade-DAT load chain, extendable up to 20 m
- Chain diameter 6.3 / 7.1 / 12.5 mm depending on model
- Air pressure 0.4/0.5/0.6 MPa; air inlet Rp 1/2 (EHL-3TS Rp 3/4)
- ATEX certified — safe for use in potentially explosive atmospheres
- Stepless variable speed control for precise load positioning
- Self-cooling air motor — unlimited lifts and duty hours, no overheating
- Alloy-steel load chain with excellent toughness and wear resistance
- Robust, compact and lightweight construction, made in Japan
- Compressed air must be filtered and lubricated; indoor use, -10 to 50 °C
Technical overview
- Model / SKU: ENDO-EHL-TS
- Product family: Pneumatic Chain Hoists
- Capacity: 1000 kg, 250 kg, 3000 kg, 500 kg
- Chain length: 3 m
- Control type: Pull-chain control handle, Pendant push-button control
- Chain diameter: 12,5 mm, 6,3 mm, 7,1 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 250 kg, 500 kg, 1000 kg, 3000 kg |
|---|---|
| Control type | Pull-chain control handle, Pendant push-button control |
| Capacity | 1000 kg, 250 kg, 3000 kg, 500 kg |
| Chain length | 3 m |
| Chain diameter | 12,5 mm, 6,3 mm, 7,1 mm |
