Wall Jib Crane Reel Holder Adjustable (ZDAP-P) 50 kg 3-6 m
Price
Configure your crane below — live price, weight and shipping update as you choose.
Categories:
Wall Jib Cranes
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Configure your crane
Select capacity, span and options. Price, weight and shipping update live.
Save your configuration
Get a shareable link, email the PDF to yourself, and we will save the configuration on our side.
Reset configuration?
All option selections (duty class, capacity, lift speed, trolley, options…) will return to their defaults. Your current quantity and delivery address will be kept. This cannot be undone.
Request quote
Share your project details and we will get back with a tailored quote.
Wall jib crane reel holder (dévidoir) for indoor use — an articulated jib whose two hollow arms route welding-cable bundles and suction hoses, with a pivot and cablofil between the arms for clean cable passage. Main arm partial rotation 180°, secondary arm 290°, rotating on bearings for easy movement. An optional support arm + balancer suspends a welding torch (2–4 kg) at mid-arm. It carries no hoist and is non-motorizable. Single 50 kg capacity, spans 3–6 m, anthracite grey RAL 7016 finish (C2). The adjustable version is fitted with a hydraulic cylinder and manual pump for height regulation (the jib folds and unfolds).
Key features
- Hydraulic cylinder + manual pump for height regulation (folding / unfolding jib)
- Articulated reel holder: main arm partial rotation 180°, secondary arm 290°, rotating on bearings for easy movement
- Two hollow arms with a pivot and cablofil between them for clean passage of welding-cable bundles and suction hoses
- Optional support arm + balancer to suspend a welding torch (2–4 kg) at mid-arm
- For indoor use only; carries no hoist and is non-motorizable
- KF2 wall-fixing kit; grinding SA 2.5 + 60 µm C2 polyester powder paint, anthracite grey RAL 7016 finish
- Capacity 50 kg; spans 3 / 4 / 5 / 6 m
- Complies with the Machinery Directive 2006/42/EC
Technical overview
- Model / SKU: ZDAP-P (Comege PMSDR)
- Product family: Wall Jib Cranes — reel holder
- Load capacity: 50 kg
- Span: 3 / 4 / 5 / 6 m
- Rotation: main arm 180°, secondary arm 290°
- Finish: anthracite grey RAL 7016 (C2, indoor)
Add the product to the quote list for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 50 kg |
|---|---|
| Span | 3 m, 4 m, 5 m, 6 m |
| Brand | DELACCO |
| Comege Model | PMSDR |
| Compliance | {"machinery_directive": "2006/42/EC"} |
| Code | Span [m] | Capacity [kg] | Span unfolded [mm] | Span folded [mm] | a [mm] | b [mm] | c [mm] | Total length [mm] | RH [daN] | RV [daN] | Max moment [daN·m] | Total weight [kg] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZDAP-P 3M | 3 | 50 | 2508 | 1116 | 2000 | 1000 | 155 | 4331 | 365 | 178 | 307 | 103 |
| ZDAP-P 4M | 4 | 50 | 3358 | 1532 | 2500 | 1500 | 155 | 5331 | 530 | 177 | 445 | 142 |
| ZDAP-P 5M | 5 | 50 | 4358 | 1532 | — | — | — | 6380 | 843 | 253 | 708 | 198 |
| ZDAP-P 6M | 6 | 50 | 5358 | 1532 | — | — | — | 7380 | 1181 | 300 | 992 | 245 |

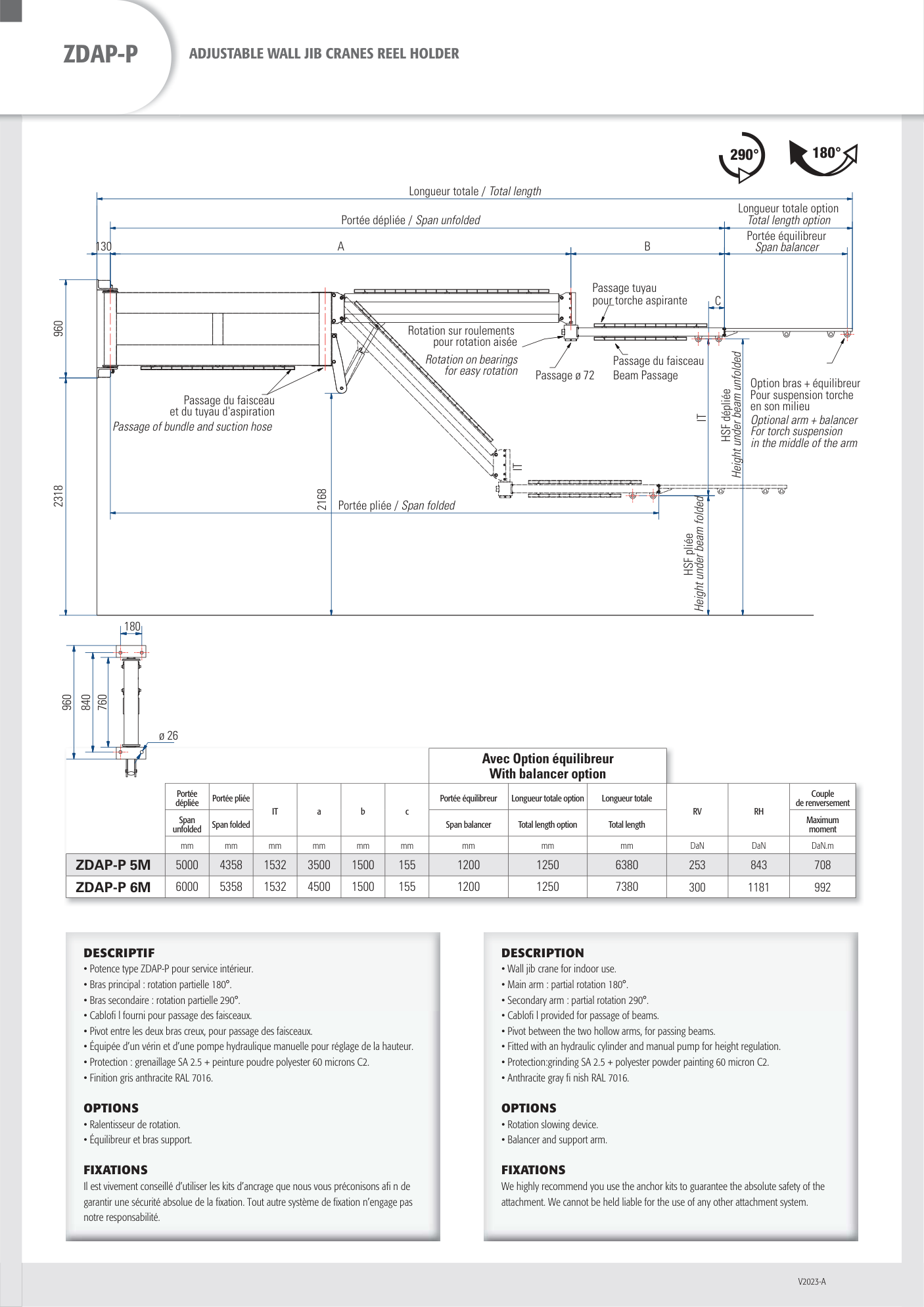

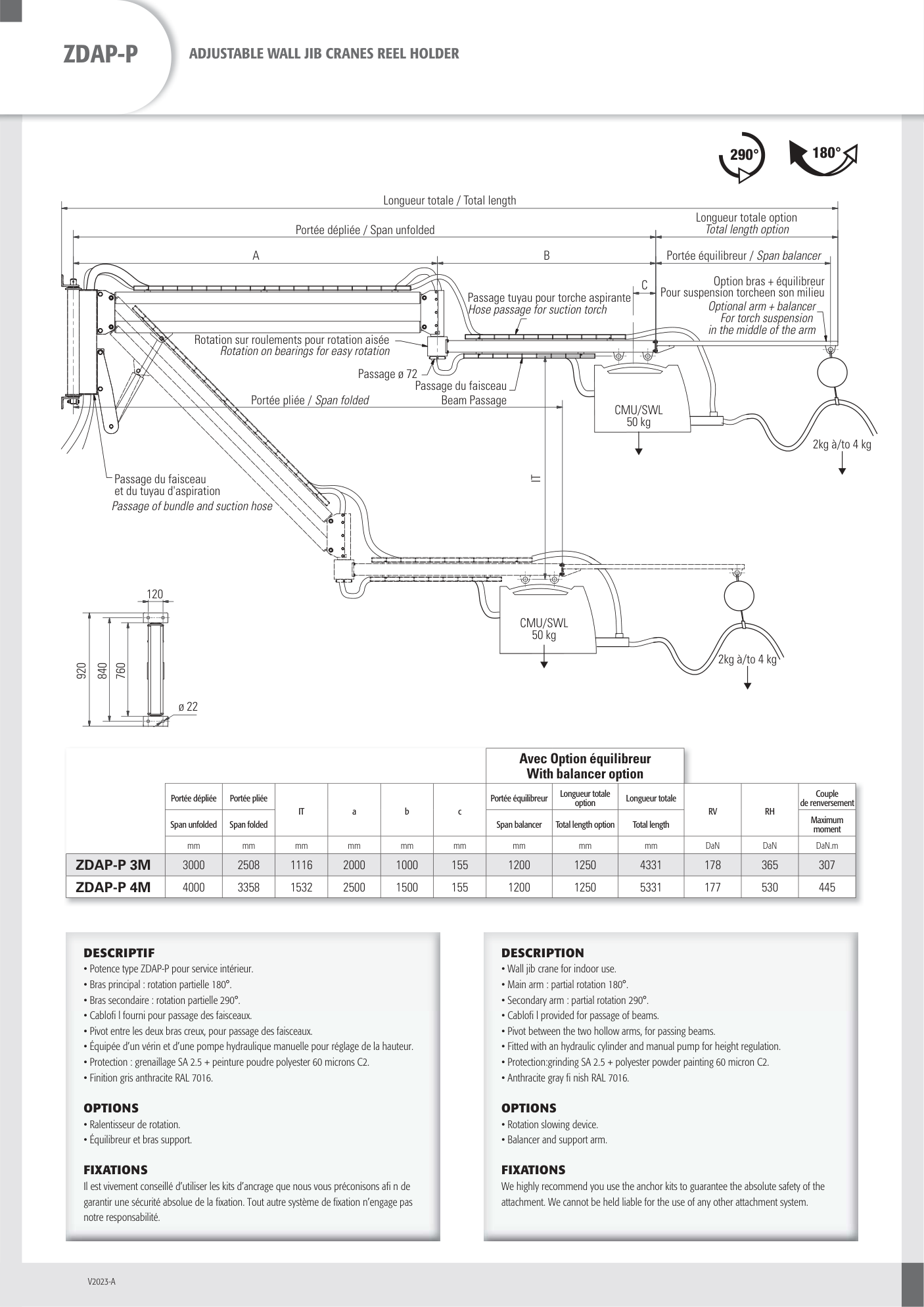

Dimensions a / b / c, total length, the RH / RV reactions, overturning moment and total weight are per the V2025-A datasheet; values shown as “—” are not tabulated for that span. Span unfolded / folded apply to the height-adjustable model.
