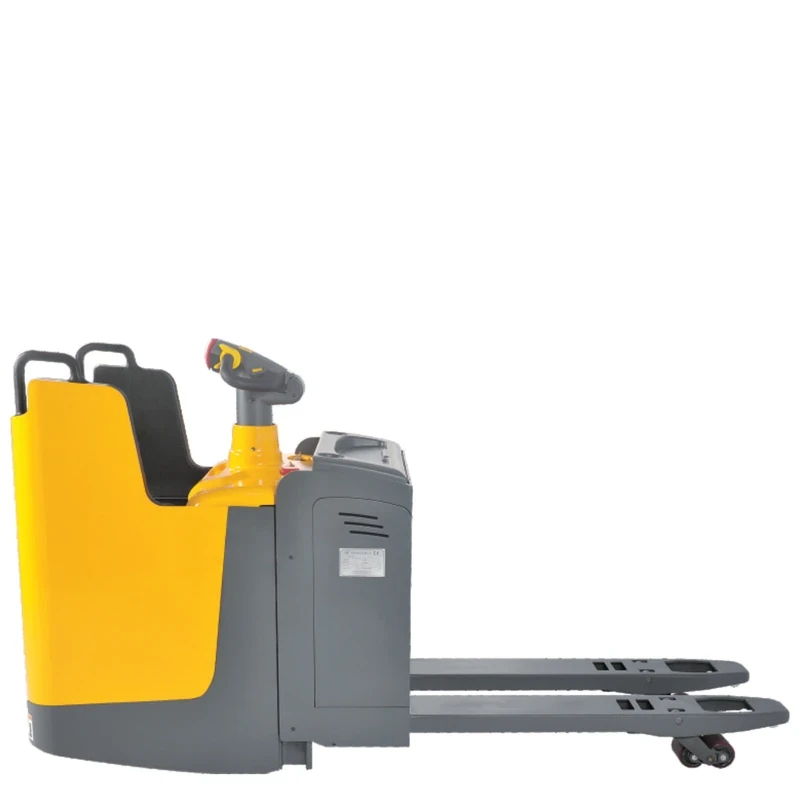

Electric Stand-On Pallet Truck (EPV20ST) 2000 kg
Price
From 8.840,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Heavy-duty stand-on pallet truck with fixed platform and closed protection arm, 2000 kg capacity, ergonomic backrest, electric power steering and up to 8/17% gradeability for long-distance transport.
Key features
- Fixed platform with closed protection arm — heavy-duty design
- Ergonomic symmetric backrest and handrail suit any operator
- Vibration-damped platform for operator comfort
- Safety power switch locks the truck when no operator is present
- Max gradeability 8/17% laden/unladen
- Two steel entry rollers for gentle pallet entry
- Electric power steering as standard

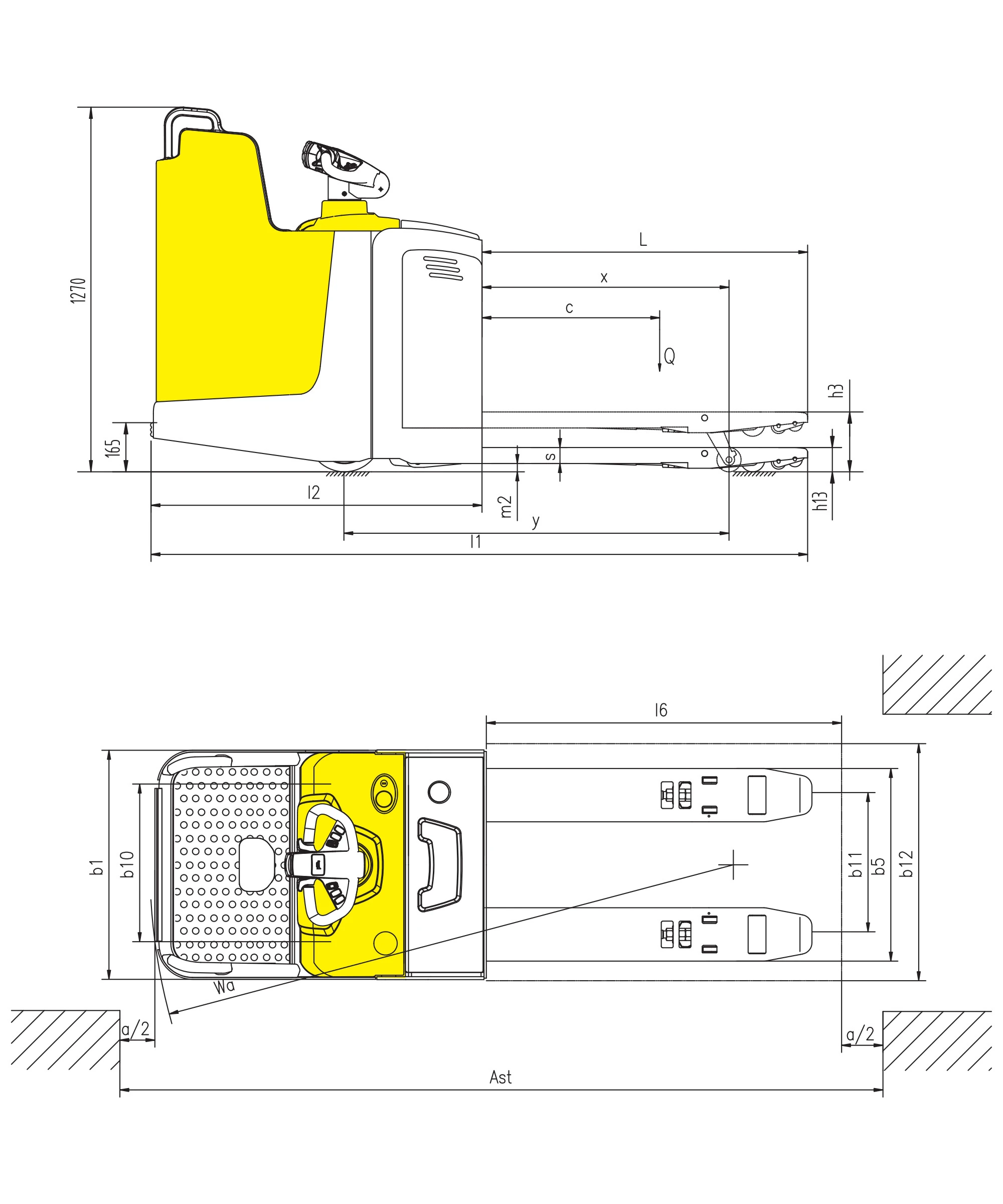

Technical overview
- Model / SKU: EPV20ST
- Product family: Electric Pallet Trucks
- Load capacity: 2000 kg
- Engine type: AC
- Load center: 600 mm
- Load distance, center of drive axle to fork: 815/865/935mm
- Fork height, lowered: 82 mm
- Tyre size, front: 250x80mm
- Tyre size, rear: 82x126(98)mm
- Additional wheels (dimensions): 127x57mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/2(4)
- Max. lift height: 202 mm
- Overall length: 2220/2270/2340mm
- Length to face of forks: 1120 mm
- Overall width: 773 mm
- Fork dimensions: 54x180x1100mm (1150/1220)
- Width overall forks: 520/550/650/685mm
- Aisle width for pallets 1000x1200mm: 2970/3020/3090mm
- Aisle width for pallets 800x1200mm: 2900/2930/2965mm
- Turning radius: 1970/2020/2090mm
- Travel speed, laden/unladen: 7.0/7.1km/h
- Initial lift: no
- Folding platform: stand-on
- Electric power steering: yes
- Battery type/voltage/capacity: LA/24/240, LFP/24/125, LFP/24/225
- Battery weight: 225 kg
- Battery dimensions (I/W/H): 650x249x504mm
- Service weight (with battery): 820 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Battery type/voltage/capacity | 24v-125ah, 24v-225ah, 24v-240ah |
|---|---|
| Load capacity | 2000 kg |
| Engine type | AC |
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 815/865/935mm |
| Fork height, lowered | 82 mm |
| Tyre size, front | 250x80mm |
| Tyre size, rear | 82x126(98)mm |
| Additional wheels (dimensions) | 127x57mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/2(4) |
| Max. lift height | 202 mm |
| Overall length | 2220/2270/2340mm |
| Length to face of forks | 1120 mm |
| Overall width | 773 mm |
| Fork dimensions | 54x180x1100mm (1150/1220) |
| Width overall forks | 520/550/650/685mm |
| Aisle width for pallets 1000x1200mm | 2970/3020/3090mm |
| Aisle width for pallets 800x1200mm | 2900/2930/2965mm |
| Turning radius | 1970/2020/2090mm |
| Travel speed, laden/unladen | 7.0/7.1km/h |
| Initial lift | no |
| Folding platform | stand-on |
| Electric power steering | yes |
| Battery weight | 225 kg |
| Battery dimensions (I/W/H) | 650x249x504mm |
| Service weight (with battery) | 820 kg |
