Fixed Spreader Beam (FNG) 1000-10000 kg, 1-6 m
Price
Configure your crane below — live price, weight and shipping update as you choose.
Categories:
Fixed Spreader Beams
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Configure your crane
Select capacity, span and options. Price, weight and shipping update live.
Save your configuration
Get a shareable link, email the PDF to yourself, and we will save the configuration on our side.
Reset configuration?
All option selections (duty class, capacity, lift speed, trolley, options…) will return to their defaults. Your current quantity and delivery address will be kept. This cannot be undone.
Request quote
Share your project details and we will get back with a tailored quote.

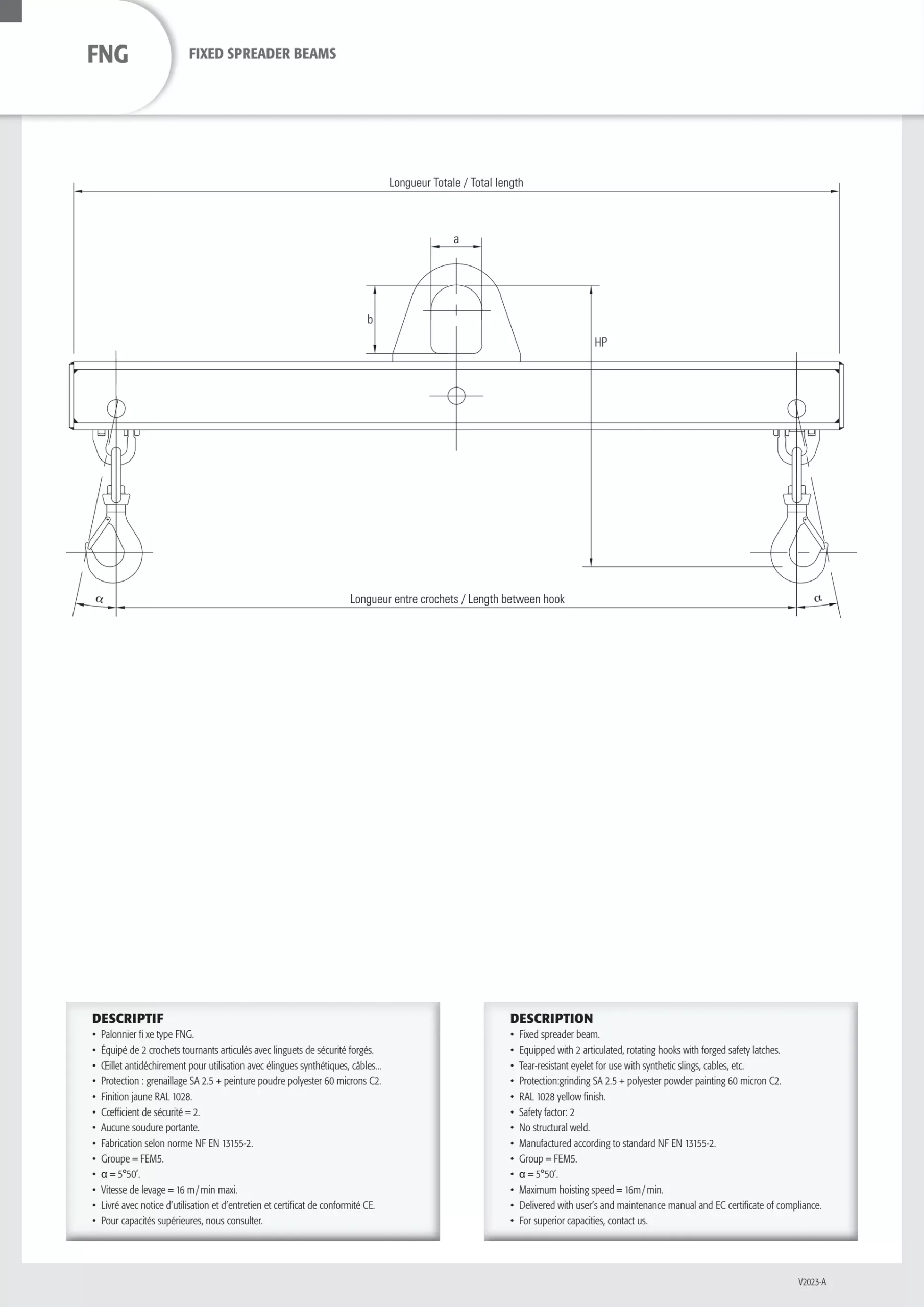

Fixed spreader beam (lifting beam) type FNG — a single-beam below-the-hook lifting device with two articulated rotating hooks and a tear-resistant eyelet. Manufactured to NF EN 13155 (FEM 5).
Key features
- Two articulated, rotating hooks with forged safety latches; hook positions adjustable for the load by removable axles
- Tear-resistant eyelet for use with synthetic slings, cables, etc.
- No structural weld; manufactured to NF EN 13155, group FEM 5
- Protection: grinding SA 2.5 + 60 µm C2 polyester powder paint, RAL 1028 yellow finish
- Optional finishes (specific RAL, outdoor C3, hot-dip galvanizing) available on request
- Delivered with user / maintenance manual and CE declaration of conformity
- Packed under shrink film for road transport (not suitable for sea freight)
Technical overview
- Model / SKU: FNG (Comege PALF)
- Product family: Spreader Beams — fixed steel monobeam
- Material: steel
- Load capacity: 1000–10000 kg
- Beam length: 1–6 m
- Standard: EN 13155 (group FEM 5)
- Finish: RAL 1028 yellow (C2)
Configure the capacity and length to get a price, then add the product to the quote list for delivery terms and customer-specific configurations.

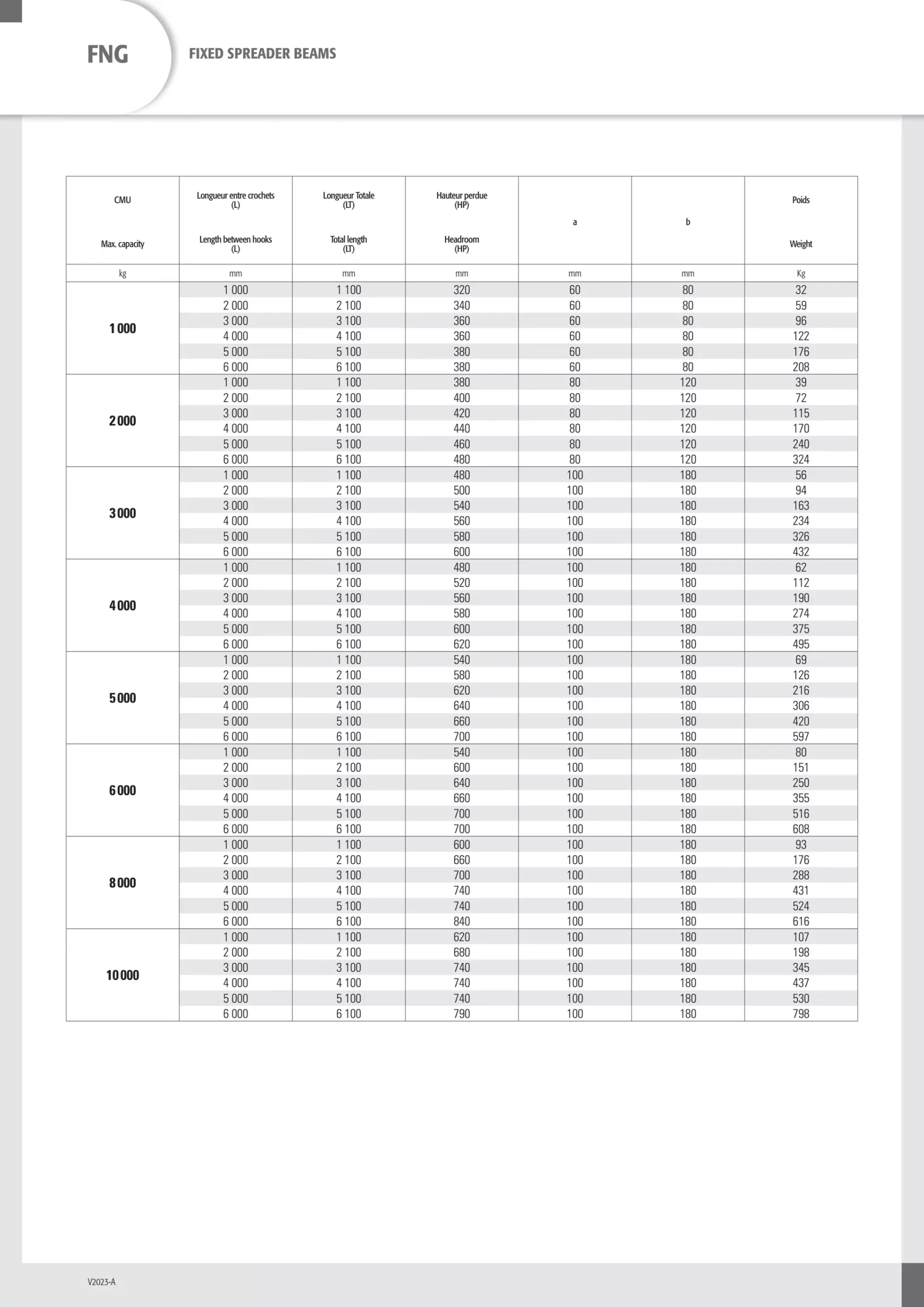

Attributes
| Load capacity | 1000 kg, 2000 kg, 3000 kg, 4000 kg, 5000 kg, 6000 kg, 8000 kg, 10000 kg |
|---|---|
| Beam length | 1 m, 2 m, 3 m, 4 m, 5 m, 6 m |
| Finish | RAL 1028 yellow (C2) |
| Beam Type | fixed steel monobeam |
| Brand | DELACCO |
| Comege Model | PALF |
| Compliance | {"group": "FEM 5", "standard": "EN 13155"} |
| Material | steel |
