Electric High Level Order Picker (VKV15) 1500 kg 5000-9000 mm
Price
On request
In stock — ships from local warehouse
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.

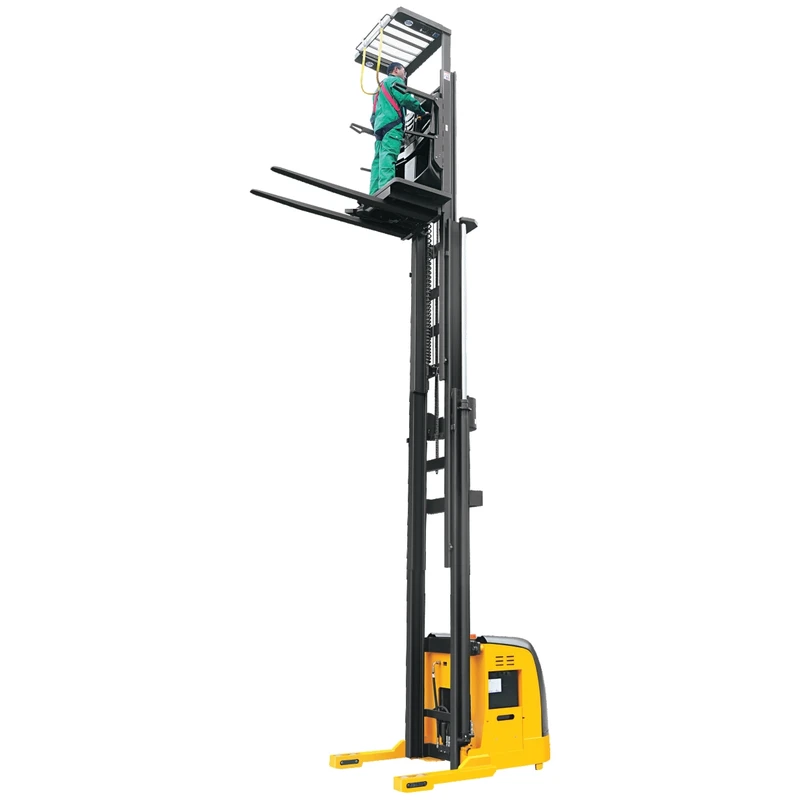

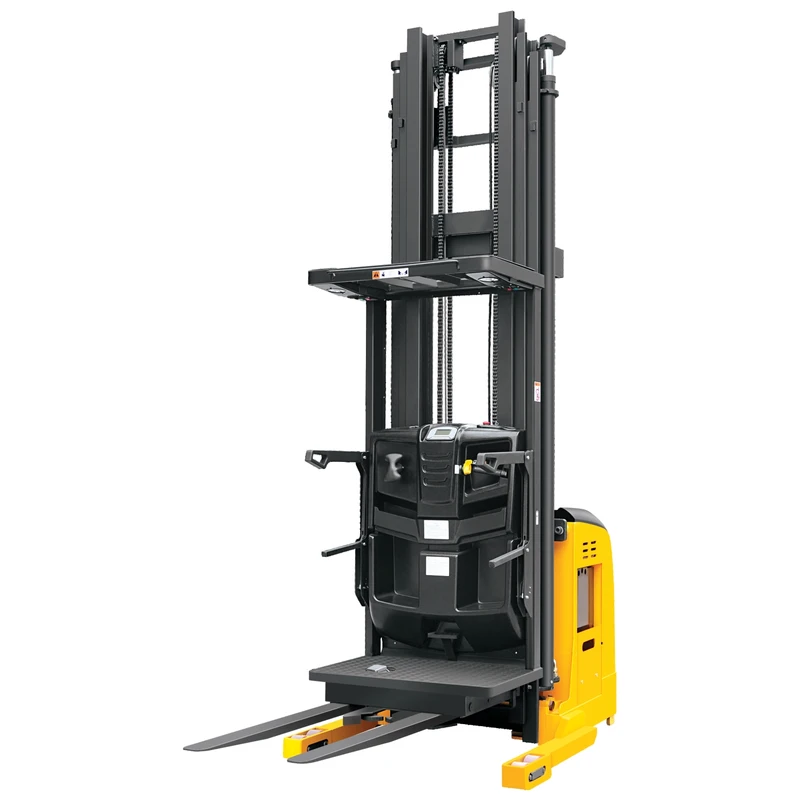

Electric high level order picker with 1500 kg capacity and lifting heights of 5000-9000 mm, joystick finger-tip control, stepless speed regulation and automatic deceleration at height — for high-racked warehouses.
Key features
- 1500 kg capacity with 5000-9000 mm lifting heights
- Low centre of gravity provides excellent stability
- EPS with auto reset, height display and high-level auto deceleration
- Finger-tip joystick control
- Stepless speed control for driving, lifting and lowering
- Oil cylinder buffer slows the mast near limits to avoid impacts
Technical overview
- Model / SKU: VKV15
- Product family: Order Pickers
- Load capacity: 1500 kg
- Load center: 600 mm
- Load distance, center of drive axle to fork: 206 mm
- Tyre size, front: 310x25mm
- Tyre size, rear: 128x73mm
- Additional wheels: Φ150x47mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/4
- Height, mast lowered: 2410/3080/3750mm
- Max. lift height: 5000/7000/9000mm
- Height, mast extended: 7230/9230/11230mm
- Platform height: 230 mm
- Fork height, lowered: 80 mm
- Overall length: 3200 mm
- Coupling height: 1975 mm
- Overall width: 1100/1352mm
- Fork dimensions: 45x100x1220mm
- Width overall forks: 530/715mm
- Height of overhead guard: 2290 mm
- Aisle width for pallets 1000x1200mm: 1400 mm
- Aisle width for pallets 800x1200mm: 1400 mm
- Turning radius: 1800 mm
- Travel speed, laden/unladen: 7.7/7.8km/h
- Lifting speed laden/unladen: 0-0.15/0-0.28m/s
- Lowering speed laden/unladen: 0-0.28/0-0.30m/s
- Battery type/voltage/capacity: LA/24/770
- Battery weight: 610kg (850kg)
- Battery dimensions (I/W/H): 982x397x561mm
- Service weight (with battery): 3870 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1500 kg |
|---|---|
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 206 mm |
| Tyre size, front | 310x25mm |
| Tyre size, rear | 128x73mm |
| Additional wheels | Φ150x47mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/4 |
| Height, mast lowered | 2410/3080/3750mm |
| Max. lift height | 5000/7000/9000mm |
| Height, mast extended | 7230/9230/11230mm |
| Platform height | 230 mm |
| Fork height, lowered | 80 mm |
| Overall length | 3200 mm |
| Coupling height | 1975 mm |
| Overall width | 1100/1352mm |
| Fork dimensions | 45x100x1220mm |
| Width overall forks | 530/715mm |
| Height of overhead guard | 2290 mm |
| Aisle width for pallets 1000x1200mm | 1400 mm |
| Aisle width for pallets 800x1200mm | 1400 mm |
| Turning radius | 1800 mm |
| Travel speed, laden/unladen | 7.7/7.8km/h |
| Lifting speed laden/unladen | 0-0.15/0-0.28m/s |
| Lowering speed laden/unladen | 0-0.28/0-0.30m/s |
| Battery type/voltage/capacity | LA/24/770 |
| Battery weight | 610kg (850kg) |
| Battery dimensions (I/W/H) | 982x397x561mm |
| Service weight (with battery) | 3870 kg |
