Electric End Control Pallet Truck (EPV25EC/EPV30EC) 2500-3000 kg
Price
From 11.280,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Heavy-duty end-control rider pallet truck with 2500-3000 kg capacity, side-standing operation with safety handle bar, electric power steering and high-capacity batteries for long shifts.
Key features
- Heavy-duty rider truck for 2500-3000 kg loads
- Side-standing operation with safety handle bar
- Electric power steering (EPS)
- Multi-function display: hour meter, fault code, slow mode, battery status
- Armrest switch controls for lifting, lowering, slow running and horn
- High-capacity battery and powerful drive motor for long shifts
- Adjustable-speed AC motor with excellent ramp performance

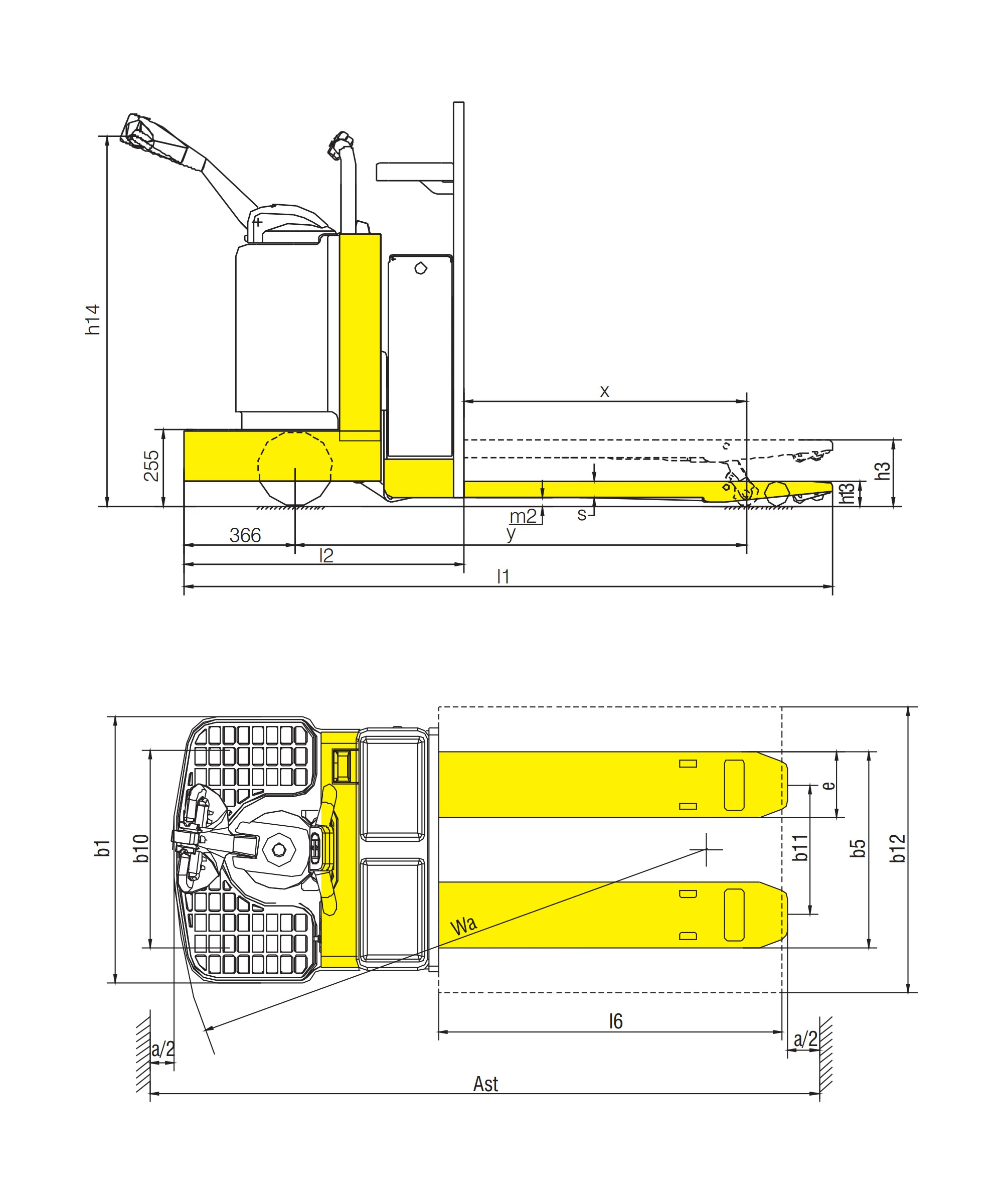

Technical overview
- Model / SKU: EPV25EC_EPV30EC
- Product family: Electric Pallet Trucks
- Load capacity: 2500 kg, 3000 kg
- Engine type: AC
- Load center: 600 mm
- Load distance, center of drive axle to fork: 933 mm
- Fork height, lowered: 82 mm
- Tyre size, front: 250x80mm
- Tyre size, rear: 82x173mm
- Additional wheels (dimensions): 127x57mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/2
- Max. lift height: 217 mm
- Height of tiller min/max: 1041/1374mm
- Overall length: 2143 mm
- Length to face of forks: 923 mm
- Overall width: 936 mm
- Fork dimensions: 55x230x1220mm
- Width overall forks: 685 mm
- Aisle width for pallets 1000x1200mm: 2343 mm, 2665 mm
- Aisle width for pallets 800x1200mm: 2343 mm, 2540 mm
- Turning radius: 1860 mm
- Travel speed, laden/unladen: 6.0/6.5km/h, 7.5/8.0km/h
- Initial lift: no
- Folding platform: stand-on
- Electric power steering: yes
- Battery type/voltage/capacity: LA/24/300, LFP/24/225
- Battery weight: 300 kg
- Battery dimensions (I/W/H): 810x212x665mm
- Service weight (with battery): 860 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 2500 kg, 3000 kg |
|---|---|
| Battery type/voltage/capacity | 24v-225ah, 24v-300ah |
| Engine type | AC |
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 933 mm |
| Fork height, lowered | 82 mm |
| Tyre size, front | 250x80mm |
| Tyre size, rear | 82x173mm |
| Additional wheels (dimensions) | 127x57mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/2 |
| Max. lift height | 217 mm |
| Height of tiller min/max | 1041/1374mm |
| Overall length | 2143 mm |
| Length to face of forks | 923 mm |
| Overall width | 936 mm |
| Fork dimensions | 55x230x1220mm |
| Width overall forks | 685 mm |
| Aisle width for pallets 1000x1200mm | 2343 mm, 2665 mm |
| Aisle width for pallets 800x1200mm | 2343 mm, 2540 mm |
| Turning radius | 1860 mm |
| Travel speed, laden/unladen | 6.0/6.5km/h, 7.5/8.0km/h |
| Initial lift | no |
| Folding platform | stand-on |
| Electric power steering | yes |
| Battery weight | 300 kg |
| Battery dimensions (I/W/H) | 810x212x665mm |
| Service weight (with battery) | 860 kg |
