Hand Electric Pallet Truck (EPV15HE/EPV20HE) 1500-2000 kg
Price
From 1.610,00 EUR
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Electric Pallet Trucks
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.
Mini hand electric pallet truck the same size as a manual pallet truck, 1500-2000 kg capacity, 24V 50Ah Li-ion battery and floating balancing wheels — made for narrow aisles, supermarkets and cargo containers.
Key features
- Same footprint as a hand pallet truck — narrow aisles and containers
- Lithium-ion (LFP) 24V 50Ah battery
- Floating balancing wheels reduce side swing; smooth anti-vibration travel
- Removable balancing wheel assembly makes maintenance simple
- One-piece rocker arm mechanism increases structural strength
- Horizontal drive-wheel structure keeps the motor away from mud and water
- Height limit switch fitted as standard

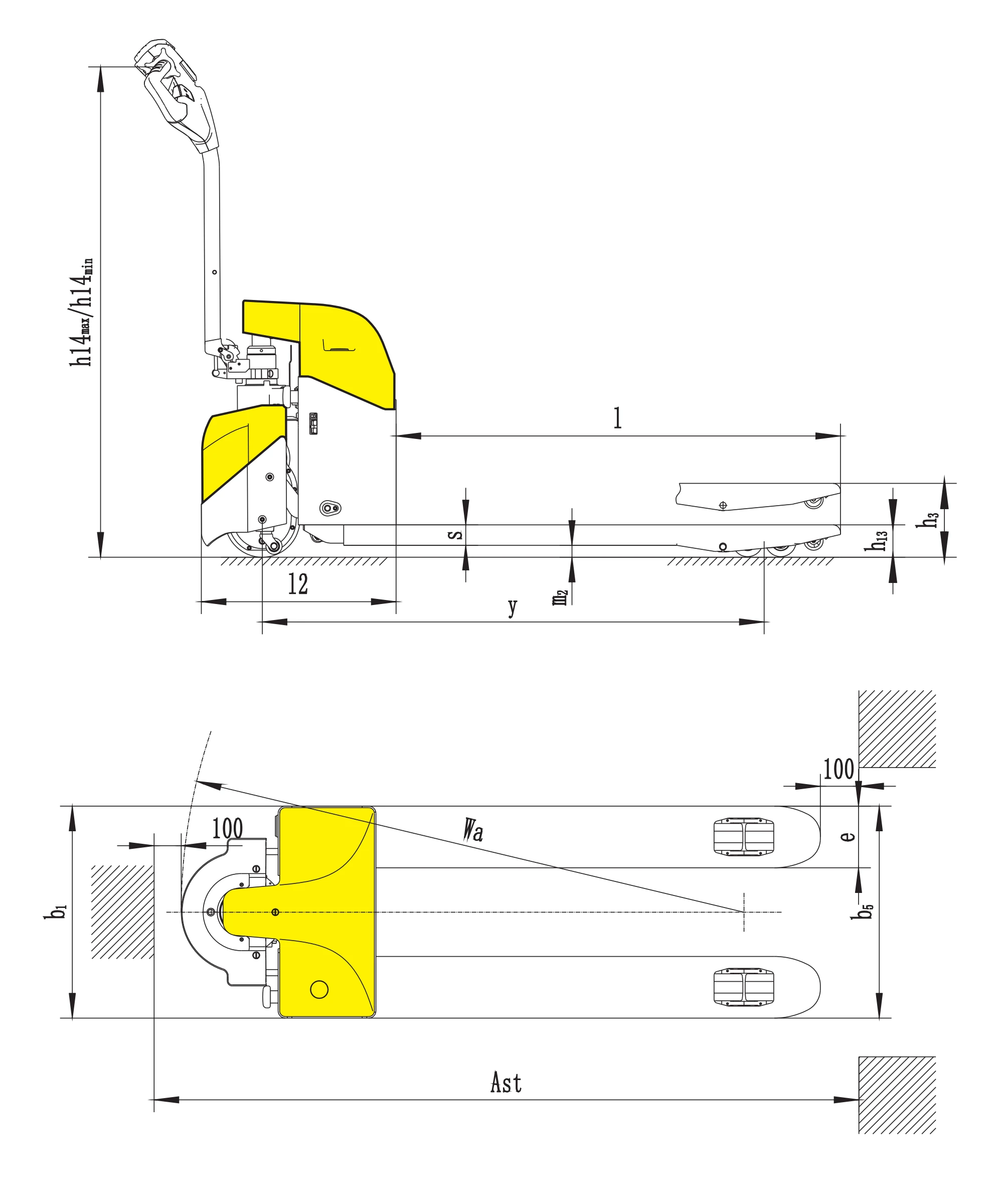

Technical overview
- Model / SKU: EPV15HE_EPV20HE
- Product family: Electric Pallet Trucks
- Load capacity: 1500 kg, 2000 kg
- Engine type: DC
- Load center: 600 mm
- Fork height, lowered: 75 mm, 85 mm
- Tyre size, front: 195x70mm
- Rear wheel size (single): 80x93mm/74x93mm
- Rear wheel size (double): 80x70mm/74x70mm
- Number of wheels, front/rear (x=driving) Φ: 1x2(4)
- Max. lift height: 190/180mm
- Height of tiller min/max: 700/1250mm
- Overall length: 1654/1724mm
- Length to face of forks: 504 mm
- Overall width: 685/562mm
- Fork dimensions: 53x160x1150mm (1220)
- Width overall forks: 520/550/685mm
- Aisle width for pallets 1000x1200mm: 2244/2310mm, 2260/2328mm
- Aisle width for pallets 800x1200mm: 2120/2155mm, 2128/2160mm
- Turning radius: 1440/1510mm, 1454/1524mm
- Travel speed, laden/unladen: 4.3/4.8km/h
- Initial lift: no
- Folding platform: no
- Electric power steering: no
- Battery type/voltage/capacity: LFP/24/50
- Battery dimensions (I/W/H): 228x138x214mm, 260x169x215mm
- Battery weight: 36 kg, 49 kg
- Service weight (with battery): 205 kg, 220 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1500 kg, 2000 kg |
|---|---|
| Engine type | DC |
| Load center | 600 mm |
| Fork height, lowered | 75 mm, 85 mm |
| Tyre size, front | 195x70mm |
| Rear wheel size (single) | 80x93mm/74x93mm |
| Rear wheel size (double) | 80x70mm/74x70mm |
| Number of wheels, front/rear (x=driving) Φ | 1x2(4) |
| Max. lift height | 190/180mm |
| Height of tiller min/max | 700/1250mm |
| Overall length | 1654/1724mm |
| Length to face of forks | 504 mm |
| Overall width | 685/562mm |
| Fork dimensions | 53x160x1150mm (1220) |
| Width overall forks | 520/550/685mm |
| Aisle width for pallets 1000x1200mm | 2244/2310mm, 2260/2328mm |
| Aisle width for pallets 800x1200mm | 2120/2155mm, 2128/2160mm |
| Turning radius | 1440/1510mm, 1454/1524mm |
| Travel speed, laden/unladen | 4.3/4.8km/h |
| Initial lift | no |
| Folding platform | no |
| Electric power steering | no |
| Battery type/voltage/capacity | LFP/24/50 |
| Battery dimensions (I/W/H) | 228x138x214mm, 260x169x215mm |
| Battery weight | 36 kg, 49 kg |
| Service weight (with battery) | 205 kg, 220 kg |
