Pillar Jib Crane with Trolley (SDSK) 270° 50-1000 kg 2-8 m
Back to catalog

Pillar Jib Crane with Trolley (SDSK) 270° 50-1000 kg 2-8 m

SKU root: SDSK | Market: EN | Locale: en
Price Configure your crane below — live price, weight and shipping update as you choose.
Brochure (PDF)
Categories: Pillar Jib Cranes
Volume pricing — save up to 12% Discount is calculated automatically on the cart subtotal.
QuantityDiscount
1 unit —
2 −3%
3–4 −5%
5–9 −8%
10+ −12%

+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.

Configure your crane

Select capacity, span and options. Price, weight and shipping update live.

1 Max capacity — kg
2 Span — m
Height under beam (HSF)

Standard height under beam = 2.5 m. Adjustable in 0.1 m steps up to 4 m; each extra 0.1 m is priced per model. Above 4 m: consult us.

Floor fixation

We strongly recommend one of our anchoring kits; we cannot be held liable for any other attachment system. The cast-in template + anchor rods are embedded in a new concrete foundation; the splitable base plate bolts onto an existing slab of sufficient depth via a chemical-anchor kit.

Chain hoist

The crane already includes an integrated manual push hoist trolley. Add a manual or electric chain hoist to the quote, or supply your own. The hoist must be operated strictly within the crane's rated SWL.

Manual hoist capacity
Manual hoist lift
Rotation locking

Mechanical lock to fix the boom in a position.

Hoist power supply (feeding line)

The COMEGYSTEME hollow profile has the power feed built in: cable trolleys and the hoist power-supply cable are included in the base price — also when you mount your own electric chain hoist.

Additional hoist trolley

The crane already ships with one integrated manual push hoist trolley. Add a second steel-rail trolley (e.g. to carry a second hoist or a load-positioning accessory).

Rotation stops (270°)

Mechanical end stops that limit the boom's 270° swing. The weld-on stop is fixed to the column; the adjustable stops are repositionable and priced by the mounting offset (cote a).

Rotation slowing device

Damper to slow boom swing — installs without welding.

Lockable main switch

20A lockable main switch under enclosure (price TBD pending Comege catalog page).

Paint system

Standard finish is 60 µm C2 polyester powder — all-yellow RAL 1028. A specific RAL colour is available. This crane is for indoor use only (no C3 outdoor system).

Packaging

Standard packing is shrink film for road transport. Wooden support is required for sea freight.

Structural calculation note

Optional engineering document (note de calcul) certifying the structural reactions of your specific configuration. Required by some inspectors and insurers when commissioning the crane.

Delivery option

Express options shorten production by 1 or 2 weeks at a price premium.

Request quote

Share your project details and we will get back with a tailored quote.

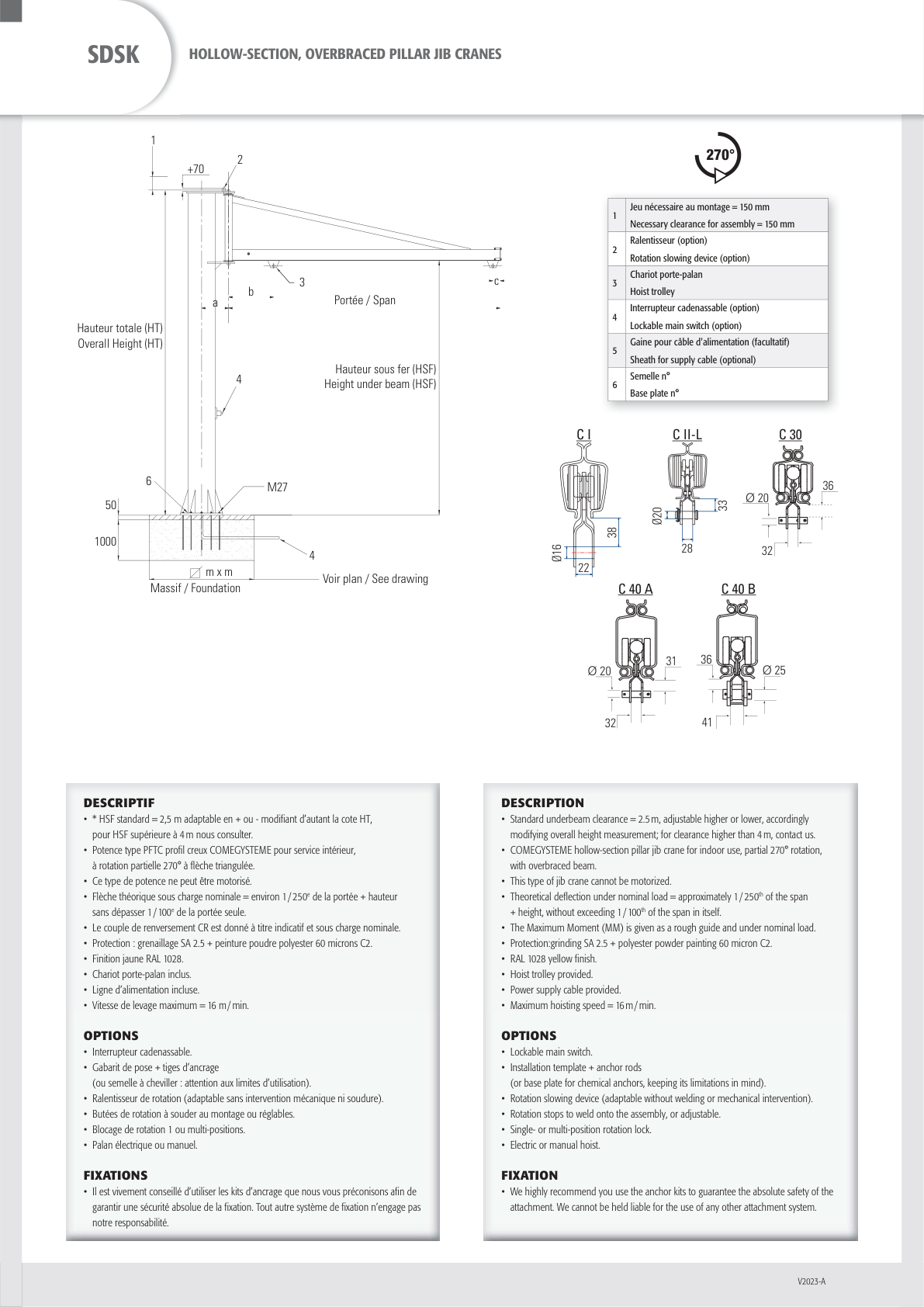

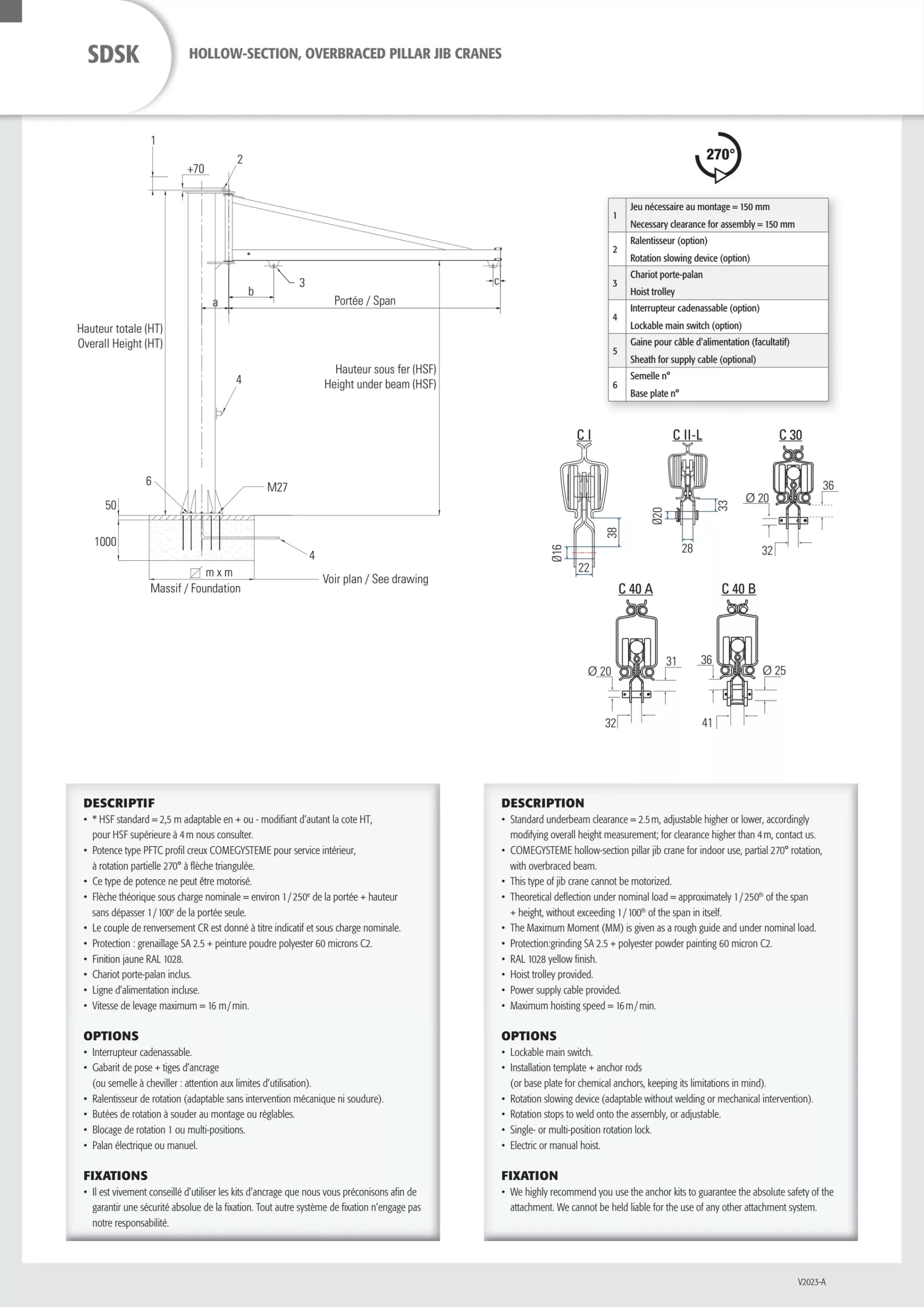

The SDSK (Comege PFTC) is a 270° partial-rotation steel pillar jib crane with an overbraced COMEGYSTEME hollow-section boom. A manual push hoist trolley is integrated into the profiled beam and included in the price. It is a compact, indoor, manual-slewing crane for fast, low-effort load positioning at a workstation.

Key features

  • 270° partial rotation on a floor-anchored pillar with an overbraced steel COMEGYSTEME hollow-section boom
  • Integrated manual push hoist trolley, cable pads and power cable are included in the price
  • Capacity 50-1000 kg; spans 2-8 m; standard height under beam 2.5 m, adjustable in 0.1 m steps up to 4 m (above 4 m on request)
  • Indoor use only; manual slewing only — this crane type cannot be motorized
  • Floor fixation by cast-in installation template + anchor rods, or a bolt-down splitable base plate with a chemical-anchor kit
  • Manual or GP electric chain hoist can be added in the configurator and bundled into the quote; an optional second hoist trolley is available
  • Grinding SA 2.5 + 60 µm C2 polyester powder paint, all-yellow RAL 1028 finish
  • Complies with the Machinery Directive 2006/42/EC

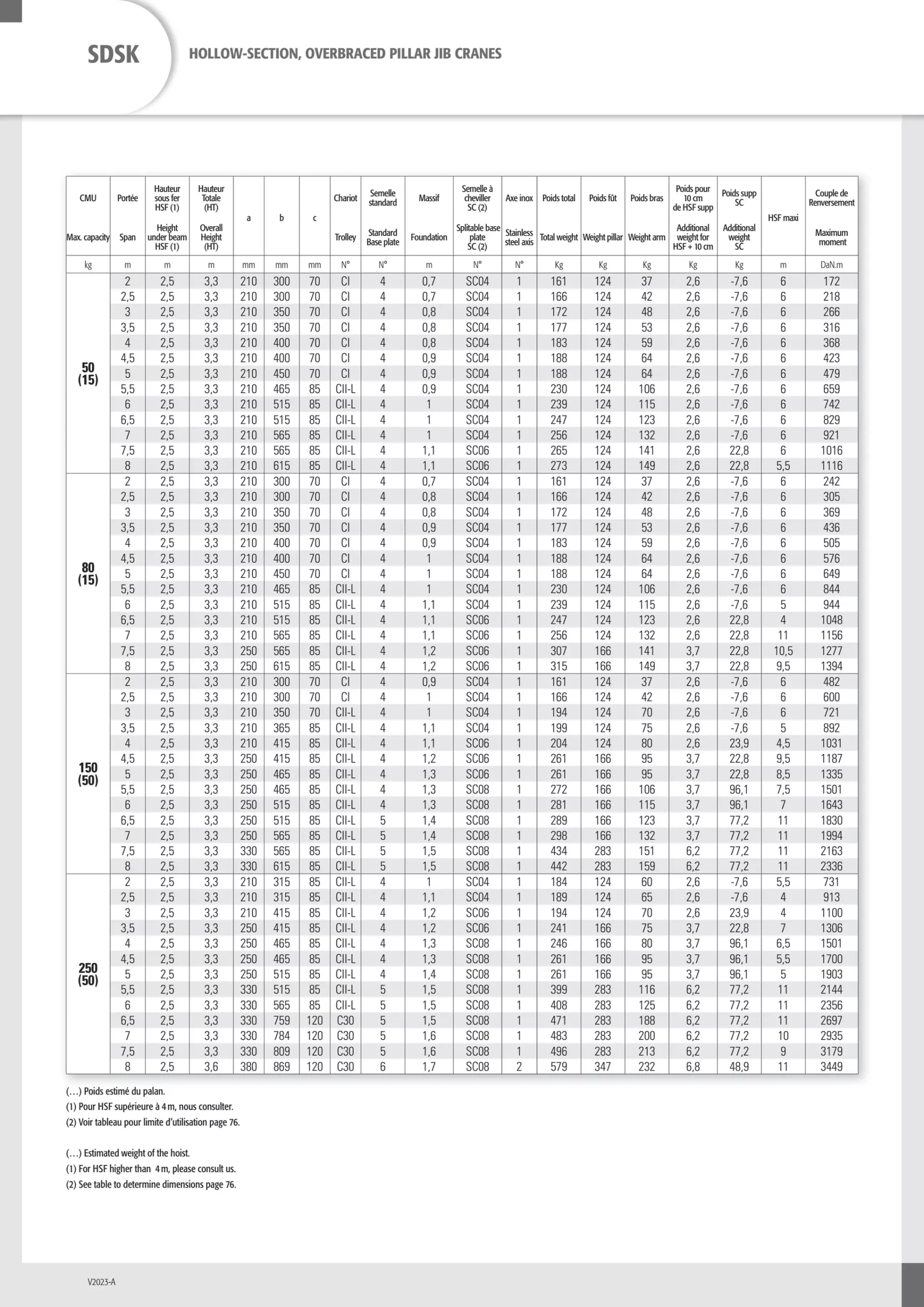

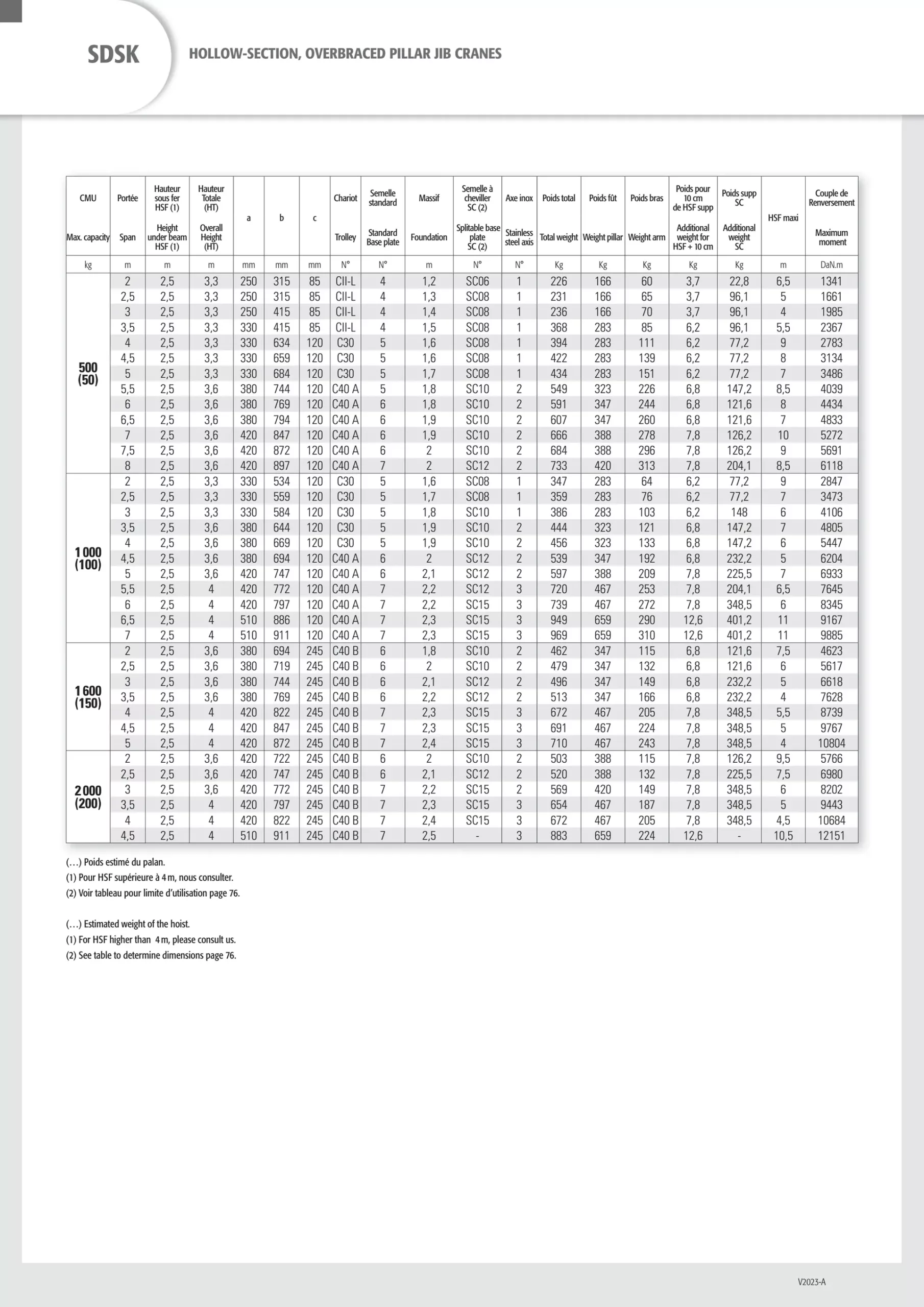

Technical overview

  • Model / SKU: SDSK (Comege PFTC)
  • Product family: Pillar Jib Cranes
  • Load capacity: 50 / 80 / 150 / 250 / 500 / 1000 kg
  • Span: 2-8 m (0.5 m increments)
  • Rotation: 270° partial rotation (manual)
  • Boom: steel COMEGYSTEME hollow section (overbraced)
  • Height under beam: 2.5 m standard, adjustable to 4 m
  • Service: indoor use only
  • Finish: all-yellow RAL 1028 (C2 indoor)

Configure capacity, span, height under beam, fixation, hoist and finish, then add the product to the quote list for delivery terms and customer-specific configurations.
