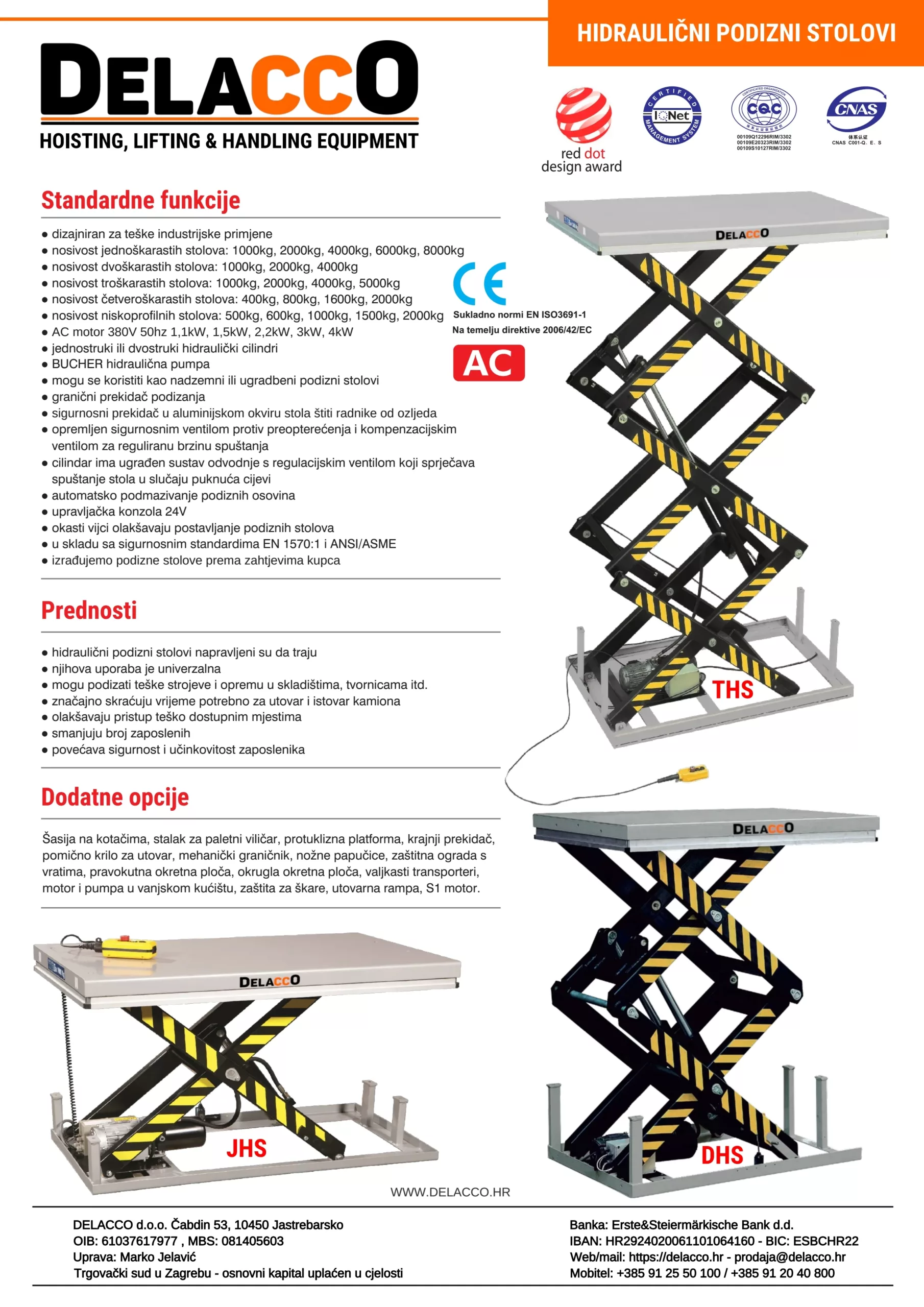

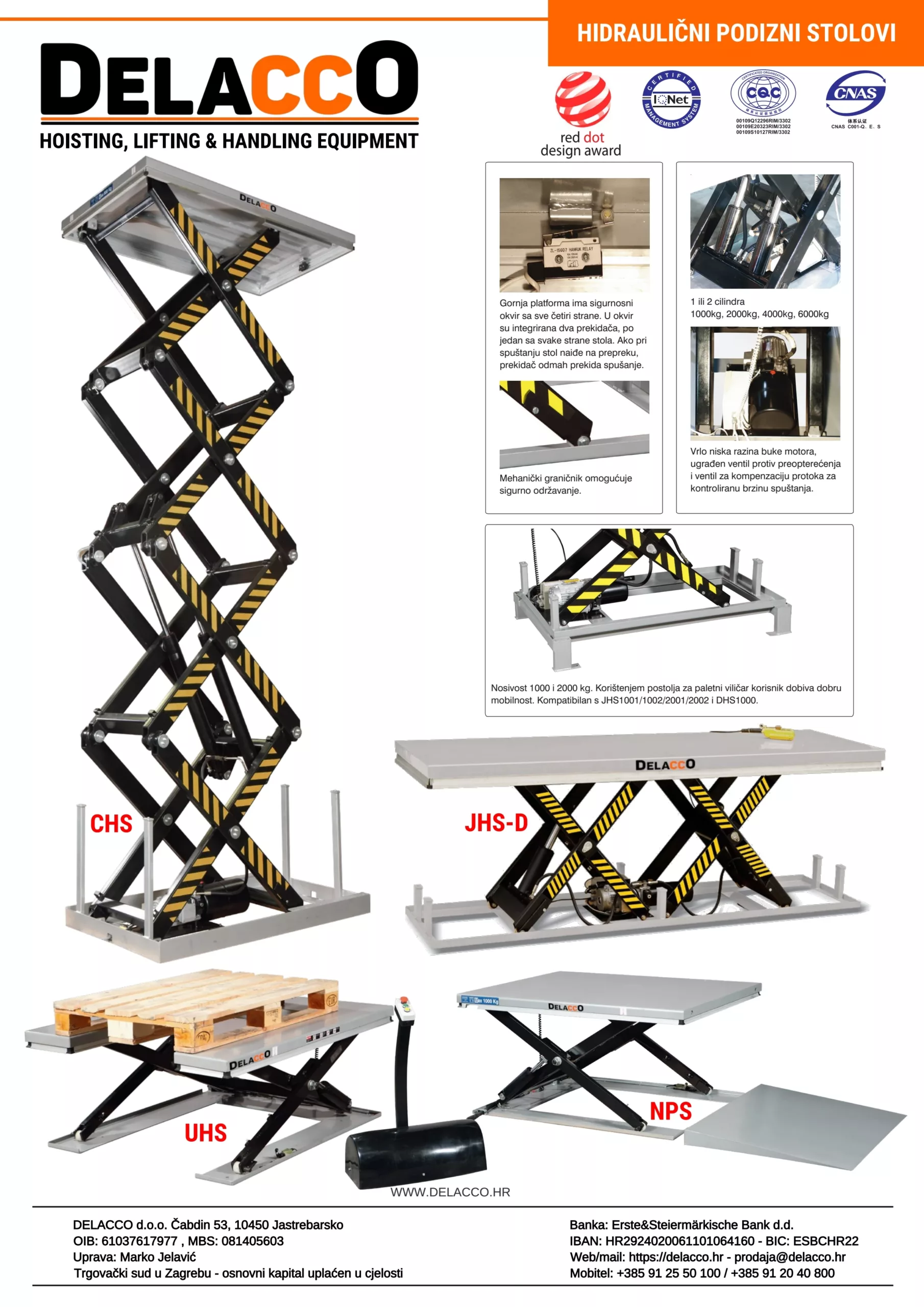

Double horizontal scissor hydraulic lift table series with 2000, 4000 and 8000 kg capacities and long platforms up to 3000 mm for oversized loads.
Key features
- Industrial lift tables designed for intensive use
- Series complies with EN 1570:1 and ANSI/ASME safety standards
- Can be installed above ground or recessed into a floor pit
- Aluminium safety contacts on the lower platform edge prevent injuries during lowering
- 24 V control box
- Internal power pack with overload relief valve and compensated valve for regulated lowering speed
- Cylinder-integrated drain system with a check valve that stops lowering in case of hose failure
- Automatic lubrication of the lifting points
- Eye bolts make installation easier
- AC motor drive
- Lift tables can also be manufactured to customer-specific requirements

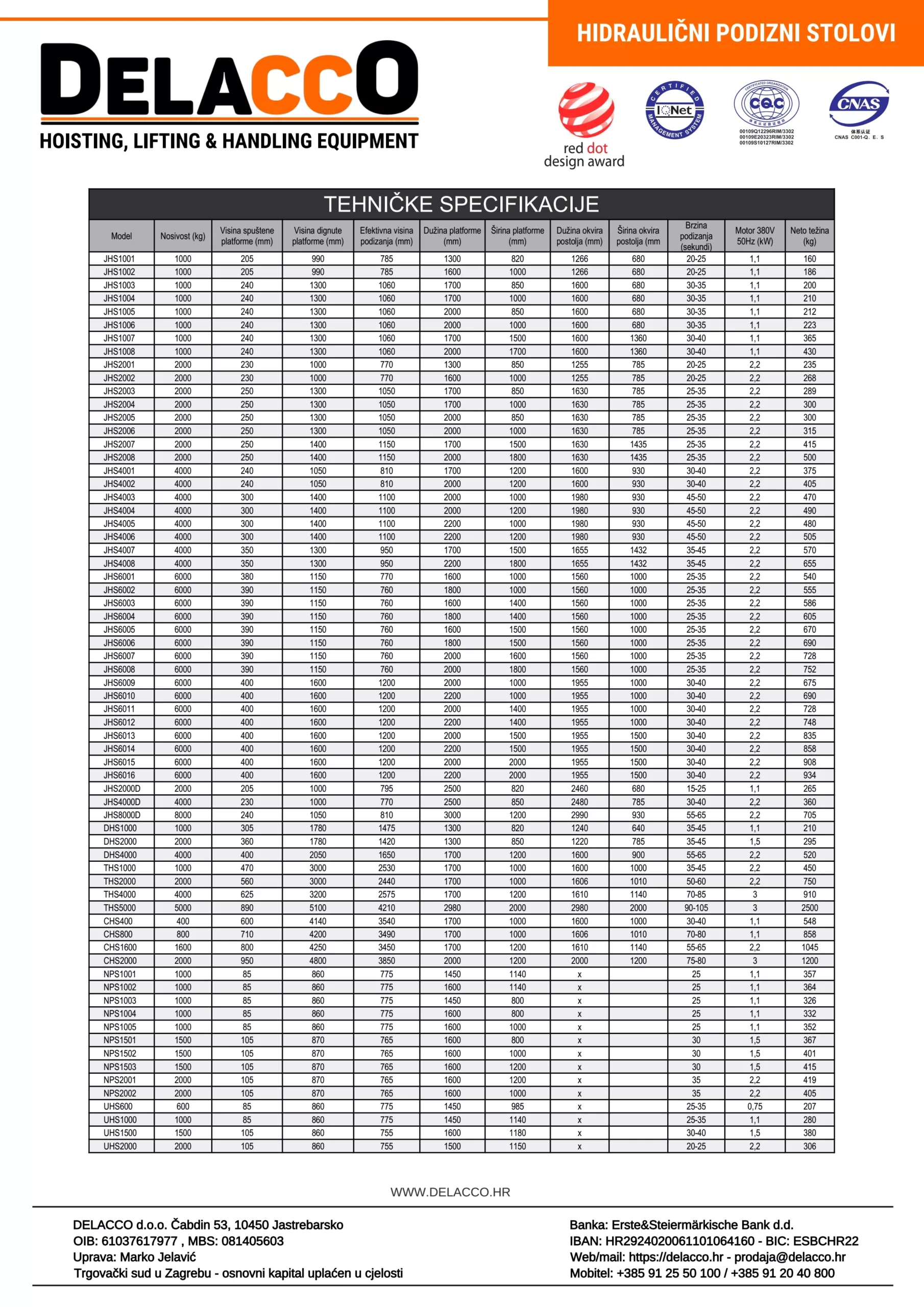

Technical overview
- Model / SKU: JHS-D
- Product family: Low-Lift Hydraulic Tables
- Load capacity: 2000 kg, 4000 kg, 8000 kg
- Platform length: 2500 mm, 3000 mm
- Platform width: 1200 mm, 820 mm, 850 mm
- Lowered height: 205 mm, 230 mm, 240 mm
- Lift height: 1000 mm
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 2000 kg, 4000 kg, 8000 kg |
|---|---|
| Platform length | 2500 mm, 3000 mm |
| Platform width | 1200 mm, 820 mm, 850 mm |
| Lowered height | 205 mm, 230 mm, 240 mm |
| Lift height | 1000 mm |
