Aluminium H-Beam Spreader (Adjustable) (PANHG) 125-2000 kg
Price
Configure your crane below — live price, weight and shipping update as you choose.
Categories:
Modular Spreader Beams (Traverses)
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Configure your crane
Select capacity, span and options. Price, weight and shipping update live.
Save your configuration
Get a shareable link, email the PDF to yourself, and we will save the configuration on our side.
Reset configuration?
All option selections (duty class, capacity, lift speed, trolley, options…) will return to their defaults. Your current quantity and delivery address will be kept. This cannot be undone.
Request quote
Share your project details and we will get back with a tailored quote.

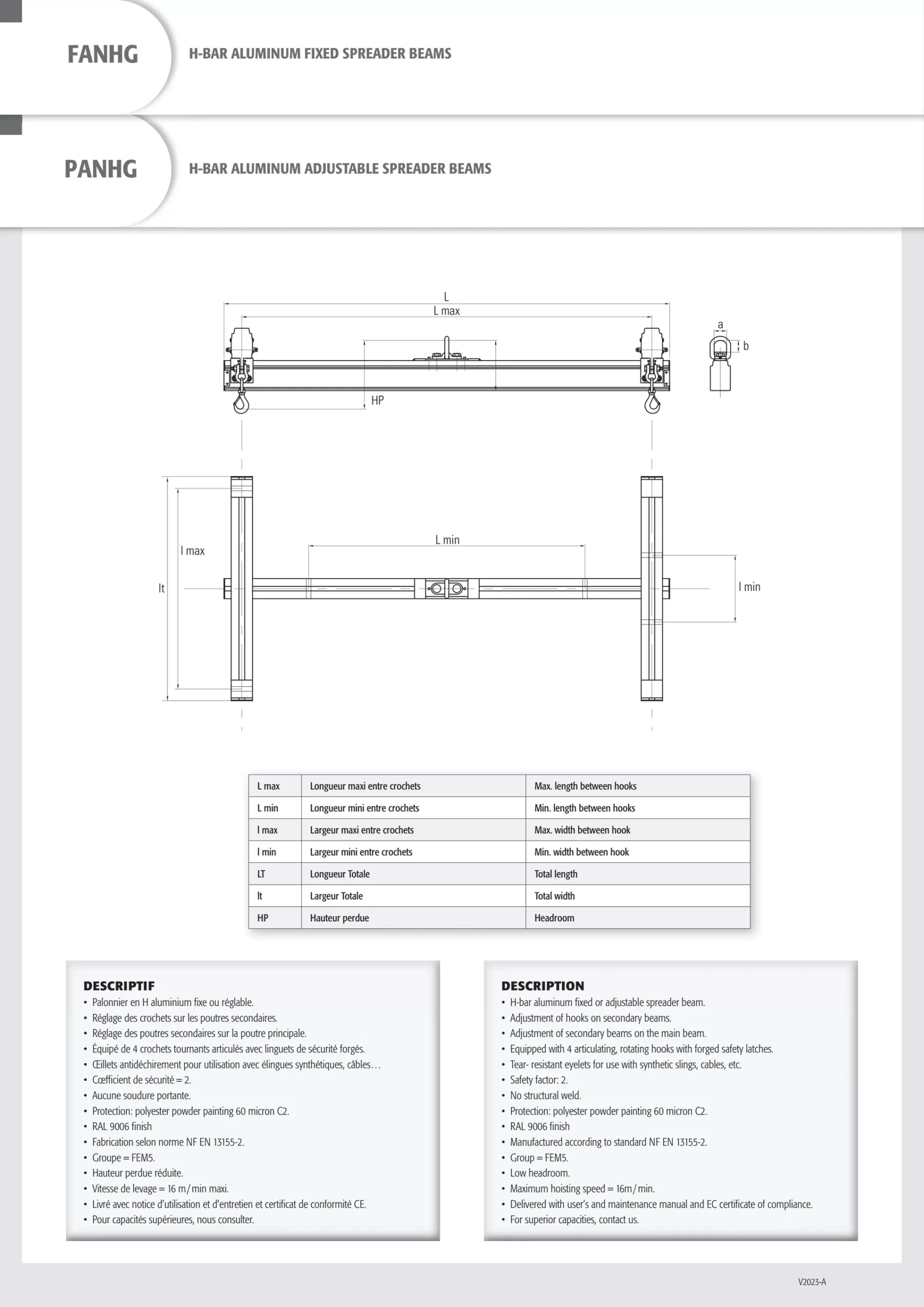

Aluminium adjustable H-beam spreader type PANHG — a lightweight cross/H frame with four articulated rotating hooks and adjustable secondary beams, for indoor use. Manufactured to NF EN 13155 (FEM 5).
Key features
- H-frame (cross) layout with four articulated rotating hooks and forged safety latches; reduced headroom
- Hooks and secondary beams adjustable for balanced multi-point pick-up
- Tear-resistant eyelet for use with synthetic slings, cables, etc.
- No structural weld; manufactured to NF EN 13155, group FEM 5
- Protection: 60 µm C2 polyester powder paint, RAL 9006 grey finish; indoor use
- Delivered with user / maintenance manual and CE declaration of conformity
- Packed on a pallet under shrink film
Technical overview
- Model / SKU: PANHG (Comege PALHR ALU)
- Product family: Spreader Beams — adjustable aluminium H-beam
- Material: aluminium
- Load capacity: 125–2000 kg
- Configurations: six beam layouts (1×1–4×2)
- Standard: EN 13155 (group FEM 5)
- Finish: RAL 9006 grey (C2)
Choose the capacity and beam configuration to get a price, then add the product to the quote list for delivery terms and customer-specific configurations.
Attributes

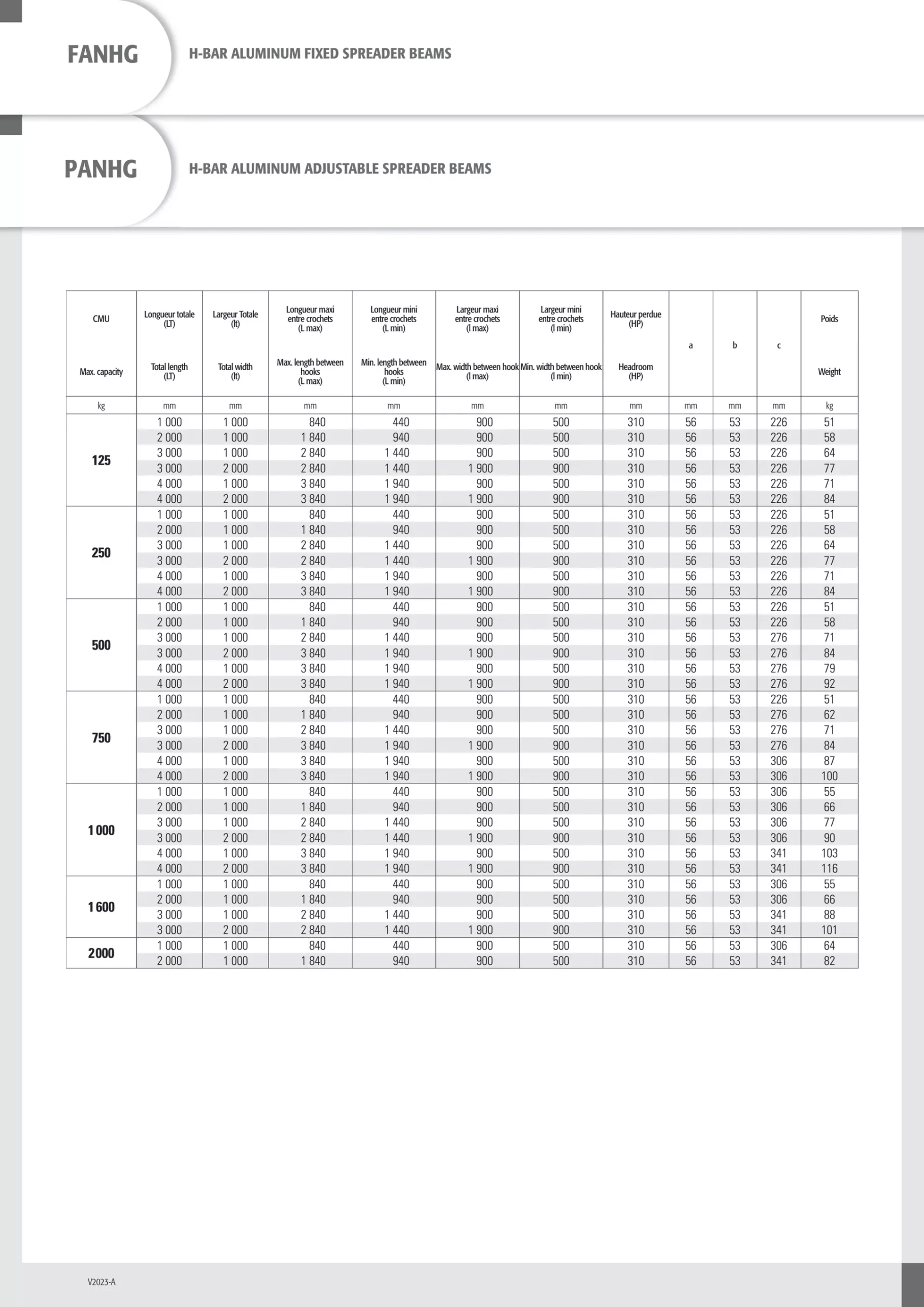

| Load capacity | 125 kg, 250 kg, 500 kg, 750 kg, 1000 kg, 1600 kg, 2000 kg |
|---|---|
| Configuration | 1×1, 2×1, 3×1, 3×2, 4×1, 4×2 |
| Finish | RAL 9006 grey (C2) |
| Beam Type | adjustable aluminium H-beam |
| Brand | DELACCO |
| Comege Model | PALHR ALU |
| Compliance | {"group": "FEM 5", "standard": "EN 13155"} |
| Material | aluminium |
