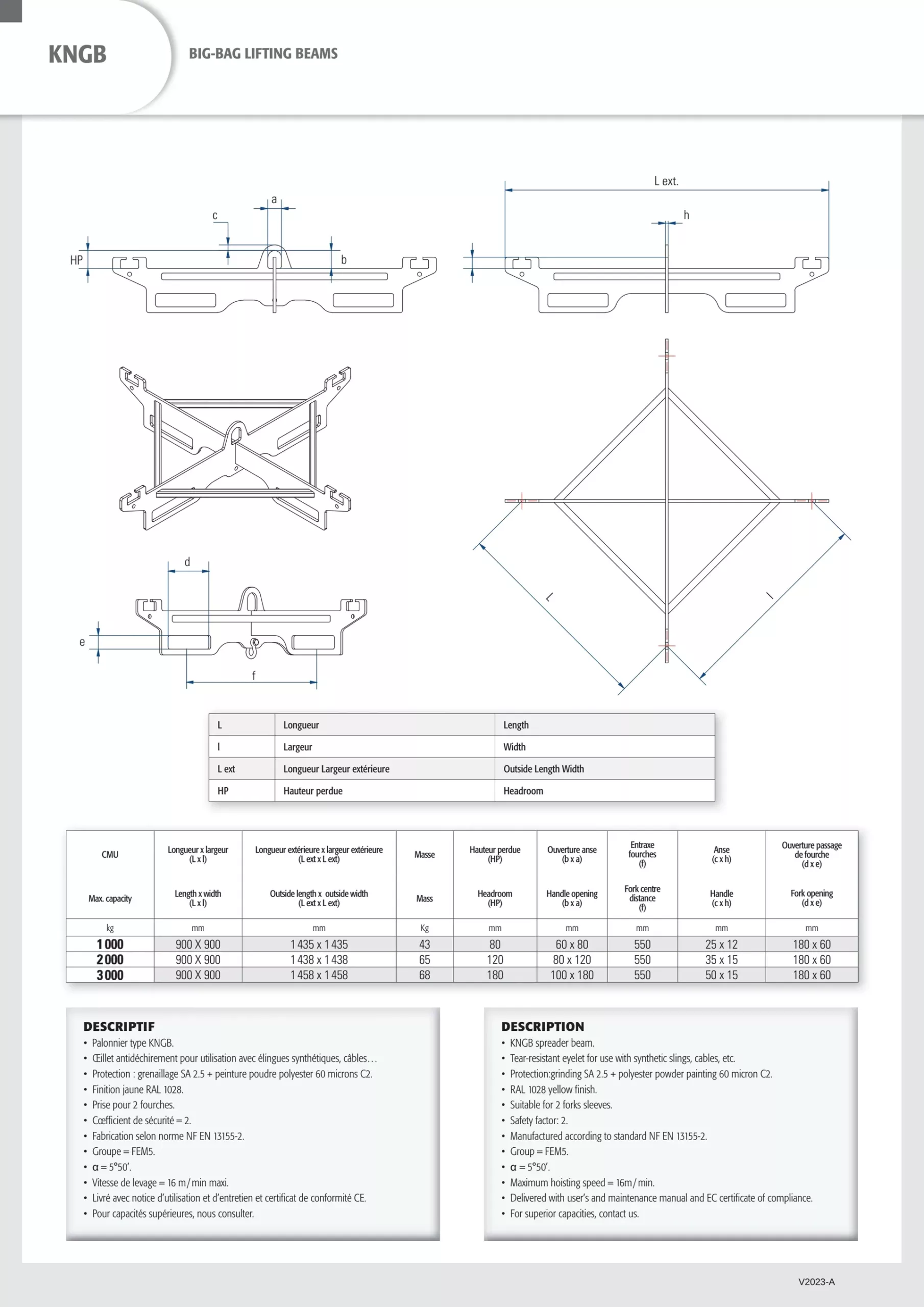

Big-bag spreader beam type KNGB — a cross frame (900 × 900 mm) for lifting big-bag (FIBC) sacks by their four loops, optionally with shackles and rotating hooks. Manufactured to NF EN 13155 (FEM 5).
Key features
- Cross/H frame sized for big-bag (FIBC) lifting at 900 × 900 mm
- Tear-resistant lifting eyes; optional 5 shackles or 5 shackles + 5 rotating hooks for the bag loops
- Safety factor 2; manufactured to NF EN 13155 (FEM 5)
- Protection: grinding SA 2.5 + 60 µm C2 polyester powder paint, RAL 1028 yellow finish
- Stainless steel 316 L version available on request
- Delivered with user / maintenance manual and CE declaration of conformity
- Packed under shrink film for road transport (not suitable for sea freight)
Technical overview
- Model / SKU: KNGB (Comege PALBAG)
- Product family: Spreader Beams — steel big-bag beam
- Material: steel
- Load capacity: 1000–3000 kg
- Rigging: lifting eyes only, + 5 shackles, or + 5 shackles & rotating hooks
- Standard: EN 13155 (group FEM 5)
- Finish: RAL 1028 yellow (C2)
Choose the capacity and rigging level to get a price, then add the product to the quote list for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1000 kg, 2000 kg, 3000 kg |
|---|---|
| Rigging | No rigging (eyes only), + 5 shackles, + 5 shackles & hooks |
| Finish | RAL 1028 yellow (C2) |
| Beam Type | steel big-bag beam |
| Brand | DELACCO |
| Comege Model | PALBAG |
| Compliance | {"group": "FEM 5", "standard": "EN 13155"} |
| Material | steel |
