Articulated Pillar Jib Crane, Self-Supporting (ZSD-S) 50-1000 kg 2-5 m

Name: Articulated Pillar Jib Crane, Self-Supporting (ZSD-S) 50-1000 kg 2-5 m
Brand: Delacco
SKU: ZSD-S
Availability: InStock

SKU root: ZSD-S | Market: EN | Locale: en

Price Configure your crane below — live price, weight and shipping update as you choose.

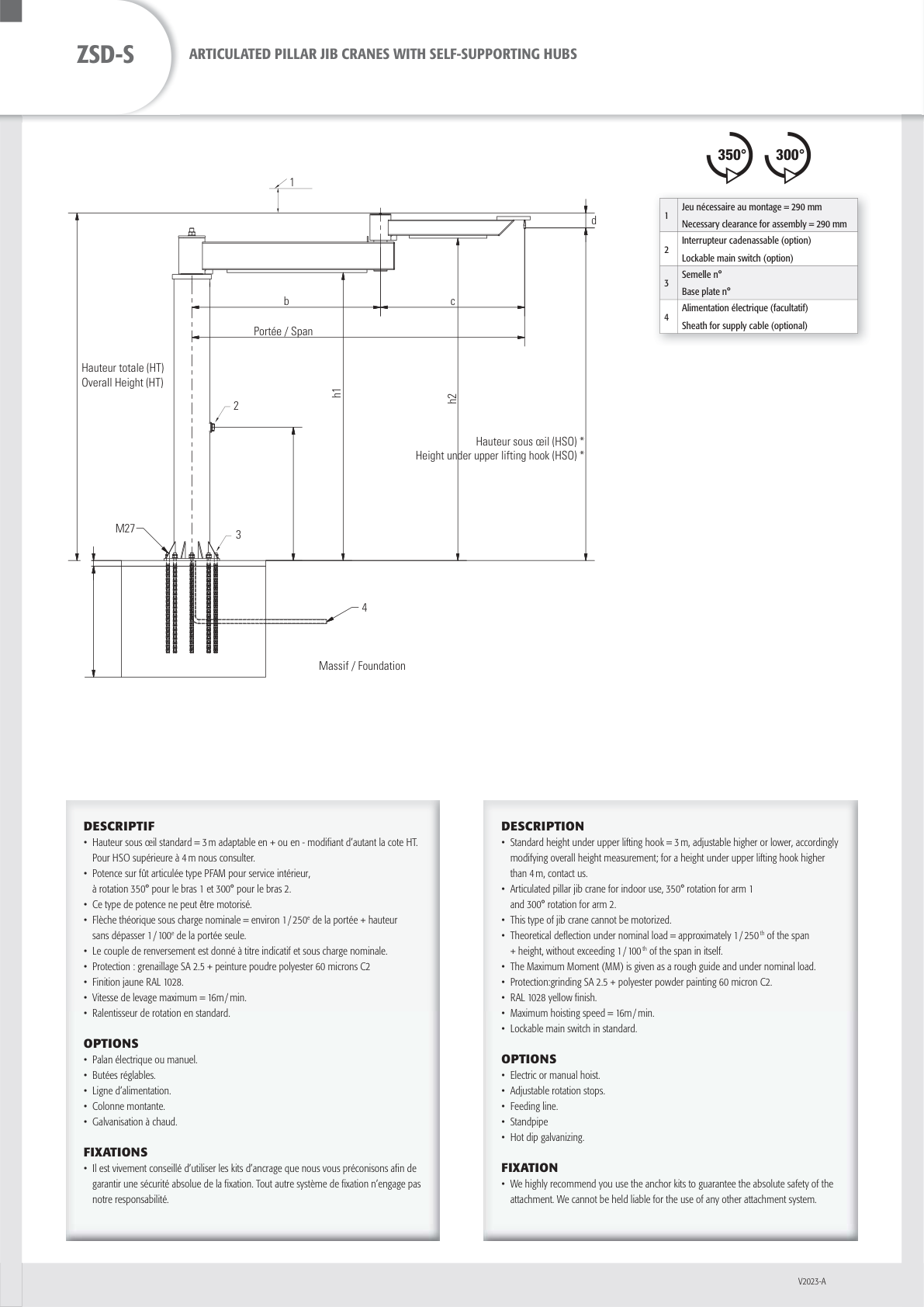

Brochure (PDF)

Categories: Pillar Jib Cranes

Volume pricing — save up to 12% Discount is calculated automatically on the cart subtotal.

Quantity	Discount
1 unit	—
2	−3%
3–4	−5%
5–9	−8%
10+	−12%

+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.

Configure your crane

Select capacity, span and options. Price, weight and shipping update live.

1 Max capacity — kg

2 Span — m

Height under upper hook (HSF)

Standard height under upper hook = 3 m. Adjustable in 0.1 m steps up to 4 m; each extra 0.1 m is priced per model. Above 4 m: consult us.

Floor fixation

The standard self-supporting base plate is included in the price. Optionally add a bolt-down splitable base plate with a chemical-anchor kit to anchor the crane to an existing slab; we cannot be held liable for any other attachment system.

Chain hoist

Add a manual or electric chain hoist to the quote, or supply your own. The hoist hangs from the fixed suspension point at the arm tip and must be operated strictly within the crane's rated SWL.

Manual hoist capacity

Manual hoist lift

GIS GP electric chain hoist

Electric chain hoist — configuration

Every option in this panel belongs to the GIS GP electric chain hoist bundled with your jib crane. It is produced and invoiced as a separate item; the jib-crane options stay outside this panel.

Electric hoist — intensity of use

How will you use the electric hoist?

Each duty class has its own capacity envelope: the heavier the use, the lower the rated weight, so a heavier class may pull a larger GP sub-model. Selecting a class lighter than your real-world use voids the manufacturer warranty and risks motor failure.

GIS GP electric hoist capacity

GIS GP electric hoist lift height

Power cable in tube

Hoist power-supply cable routed inside a protective tube.

Lockable main switch

20A lockable main switch under enclosure (price TBD pending Comege catalog page).

Cover for the lockable switch

Weather cover for the lockable main switch (outdoor use).

Rigging ring

Welded rigging ring at the arm tip for the hoist.

Paint system

Standard finish is 60 µm C2 polyester powder, RAL 1028 yellow. C3 systems (120 µm on epoxy primer) are for outdoor service.

Packaging

Standard packing is shrink film for road transport. Wooden support is required for sea freight.

Structural calculation note

Optional engineering document (note de calcul) certifying the structural reactions of your specific configuration. Required by some inspectors and insurers when commissioning the crane.

Configuration —

Net price —

Quantity

Volume pricing — save up to 12 %

Quantity	Discount

Bundle promo: extra 3 % off when this order combines items from at least two product categories (e.g. a hoist + a jib crane).

Price breakdown

Net total (excl. VAT)	—

Estimated weight —
Lead time —
Mounting kit level —

Shipping estimate

Delivery country

—

Enter your delivery country above to see an indicative freight estimate.

Request quote

Share your project details and we will get back with a tailored quote.

Full name

Phone

Company

Estimated quantity

Project details

The ZSD-S (Comege PFAM) is an articulated pillar jib crane built on a heavy self-supporting hub: two hinged arms let the hoist travel around obstacles, and the standard base plate is included in the price. It is built for both indoor and outdoor use and is manual-slewing only.

Key features

Articulated boom on a self-supporting hub — arm 1 rotates 350°, arm 2 rotates 300° — for obstacle-avoiding coverage
Standard base plate included; the heavy self-supporting hub carries capacities up to 1000 kg
Hoist hangs from a fixed suspension point at the arm tip (no travelling trolley)
Capacity 50-1000 kg; spans 2-5 m; standard height under upper hook 3 m, adjustable in 0.1 m steps up to 4 m (above 4 m on request)
Indoor + outdoor use; manual slewing — this crane type cannot be motorized
Optional bolt-down splitable base plate with a chemical-anchor kit
Manual or GP electric chain hoist can be added in the configurator and bundled into the quote
Grinding SA 2.5 + 60 µm C2 polyester powder paint, RAL 1028 yellow finish; outdoor C3 paint systems available
Complies with the Machinery Directive 2006/42/EC

Technical overview

Model / SKU: ZSD-S (Comege PFAM)
Product family: Pillar Jib Cranes
Load capacity: 50 / 80 / 125 / 250 / 500 / 1000 kg
Span: 2-5 m
Rotation: articulated — arm 1 350° / arm 2 300° (manual)
Height under upper hook: 3 m standard, adjustable to 4 m
Finish: RAL 1028 yellow (C2 indoor; C3 outdoor available)

Configure capacity, span, height under hook, fixation, hoist and finish, then add the product to the quote list for delivery terms and customer-specific configurations.

Attributes

Load capacity	50 kg, 80 kg, 125 kg, 250 kg, 500 kg, 1000 kg
Span	2 m, 3 m, 4 m, 5 m
Rotation	Articulated (arm 1 350° / arm 2 300°)
Brand	DELACCO
Comege Model	PFAM
Compliance	{"machinery_directive": "2006/42/EC"}

Capacity [kg]	Spans [m]	Base price [€]
50	2-5	4 214-4 321
80	2-5	4 214-6 895
125	2-5	4 214-6 895
250	2-4	4 214-6 819
500	2-3	6 658-6 723
1000	2-2	6 658-6 658

Base price includes the standard self-supporting base plate and is for the standard 3 m height under upper hook; each extra 0.1 m of height, the optional chemical-anchor base plate, hoist and finish are priced in the configurator. This articulated crane is manual-slewing and cannot be motorized; the hoist hangs from a fixed suspension point (no trolley).

Articulated Pillar Jib Crane, Self-Supporting (ZSD-S) 50-1000 kg 2-5 m From 4.214,00 EUR
