Electric Low Level Order Picker (NKV10-P) 1000 kg
Price
On request
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.

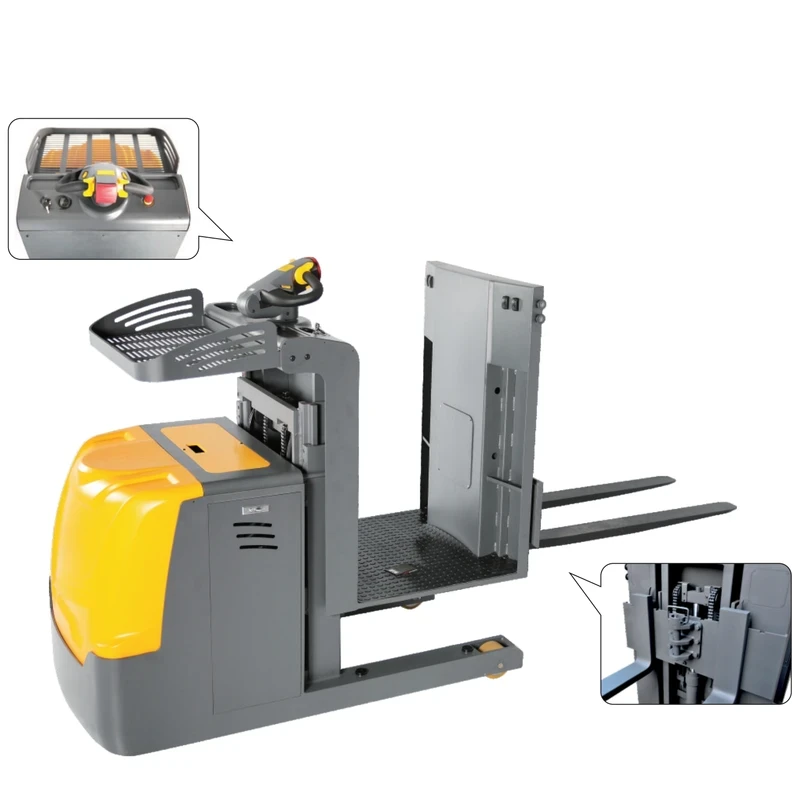

Electric low level order picker with 1000 kg capacity and 1020 mm fork lift, extra lift controls and straight-drive control at the platform backrest so the operator can pick orders off the vehicle.
Key features
- Extra fork lifting/lowering control at the platform backrest
- Straight-drive control lets the operator pick orders off the vehicle
- EPS power steering handle for smooth, effortless manoeuvring
- Combined regenerative and electromagnetic braking
- 1000 kg capacity with 1020 mm fork lift
Technical overview
- Model / SKU: NKV10-P
- Product family: Order Pickers
- Load capacity: 1000 kg
- Load center: 600 mm
- Tyre size, front: 250x80mm
- Tyre size, rear: 128x73mm
- Additional wheels (dimensions): 150x60mm
- Number of wheels, front/rear (x=driving) Φ: 1X+1/4
- Height, mast lowered: 1300 mm
- Platform height: 1200 mm
- Height, mast extended: 2360 mm
- Max. lift height: 800 mm
- Fork height, lowered: 70 mm
- Overall length: 2920 mm
- Length to face of forks: 1720 mm
- Overall width: 812 mm
- Fork dimensions: 35x100x1070mm
- Fork carriage width: 200-750 mm
- Ground clearance: 35 mm
- Aisle width for pallets 1000x1200mm: 3157 mm
- Aisle width for pallets 800x1200mm: 3178 mm
- Turning radius: 1535 mm
- Travel speed, laden/unladen: 7.7/7.8km/h
- Lifting speed laden/unladen: 0.1/0.15m/s
- Lowering speed laden/unladen: 0.07/0.08m/s
- Max. gradeability laden/unladen: 8/15%
- Battery type/voltage/capacity: LA/24/450
- Battery dimensions (I/W/H): 654x305x705mm
- Battery weight: 360 kg
- Service weight (with battery): 1535 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1000 kg |
|---|---|
| Load center | 600 mm |
| Tyre size, front | 250x80mm |
| Tyre size, rear | 128x73mm |
| Additional wheels (dimensions) | 150x60mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+1/4 |
| Height, mast lowered | 1300 mm |
| Platform height | 1200 mm |
| Height, mast extended | 2360 mm |
| Max. lift height | 800 mm |
| Fork height, lowered | 70 mm |
| Overall length | 2920 mm |
| Length to face of forks | 1720 mm |
| Overall width | 812 mm |
| Fork dimensions | 35x100x1070mm |
| Fork carriage width | 200-750 mm |
| Ground clearance | 35 mm |
| Aisle width for pallets 1000x1200mm | 3157 mm |
| Aisle width for pallets 800x1200mm | 3178 mm |
| Turning radius | 1535 mm |
| Travel speed, laden/unladen | 7.7/7.8km/h |
| Lifting speed laden/unladen | 0.1/0.15m/s |
| Lowering speed laden/unladen | 0.07/0.08m/s |
| Max. gradeability laden/unladen | 8/15% |
| Battery type/voltage/capacity | LA/24/450 |
| Battery dimensions (I/W/H) | 654x305x705mm |
| Battery weight | 360 kg |
| Service weight (with battery) | 1535 kg |
