Low Level Central Rider Order Picker (NKV30-P) 3000 kg
Price
On request
In stock — ships from local warehouse
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Request quote
Share your project details and we will get back with a tailored quote.

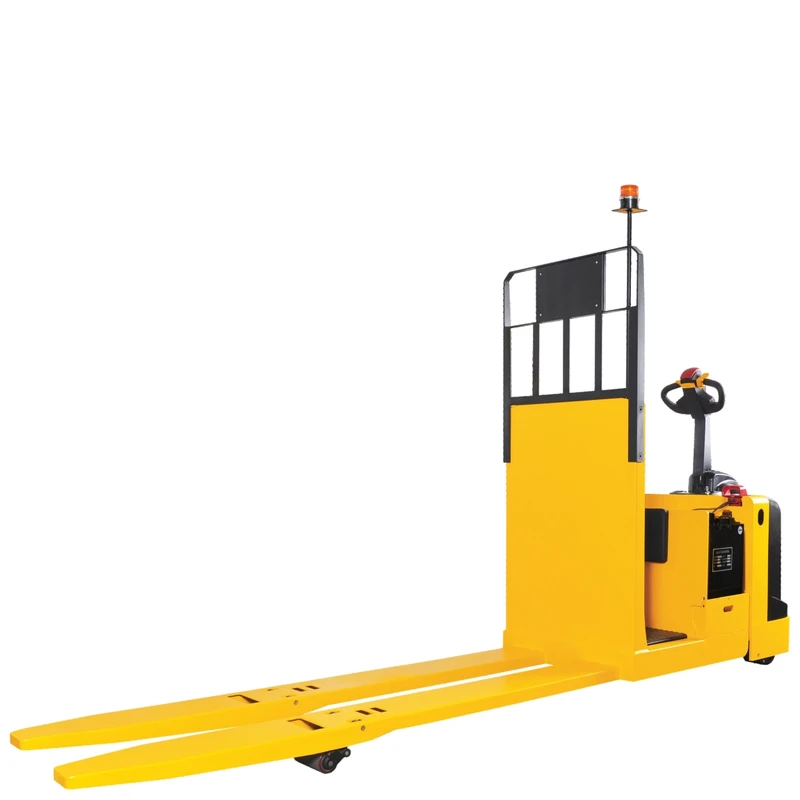

Low level central rider order picker with 3000 kg capacity, advanced electric power steering with automatic speed reduction in turns and a cushioned anti-shock operator stand with ergonomic backrest.
Key features
- 3000 kg capacity for heavy order-picking runs
- Advanced EPS with automatic speed reduction in turns
- Cushioned anti-shock stand with ergonomic backrest
- Comfortable driving and control position
- Optional buzzer and warning lights for extra safety

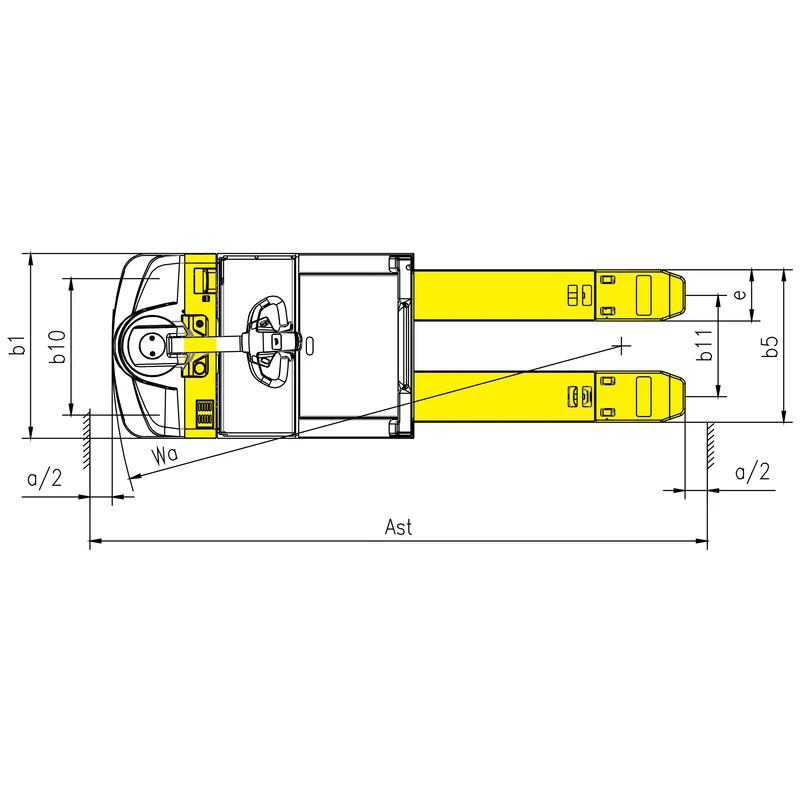

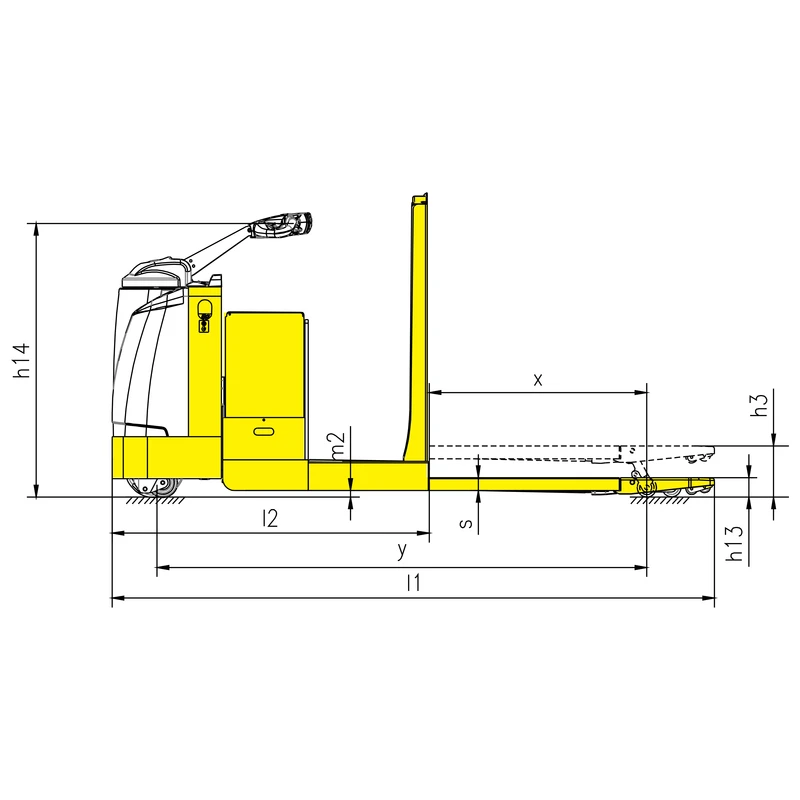

Technical overview
- Model / SKU: NKV30-P
- Product family: Order Pickers
- Load capacity: 3000 kg
- Load center: 600 mm
- Load distance, center of drive axle to fork: 933 mm
- Fork height, lowered: 82 mm
- Tyre size, front: 250x80mm
- Tyre size, rear: 82x173mm
- Additional wheels (dimensions): 127x57mm
- Number of wheels, front/rear (x=driving) Φ: 1X+2/2
- Max. lift height: 217 mm
- Height of tiller min/max: 1070/1370mm
- Overall length: 2570 mm
- Length to face of forks: 1350 mm
- Overall width: 823 mm
- Fork dimensions: 55x230x1220mm
- Width overall forks: 685 mm
- Aisle width for pallets 1000x1200mm: 3090 mm
- Aisle width for pallets 800x1200mm: 2965 mm
- Turning radius: 2290 mm
- Travel speed, laden/unladen: 8/8.5km/h
- Battery type/voltage/capacity: LA/24/560
- Battery weight: 559 kg
- Battery dimensions (I/W/H): 780x335x625mm
- Service weight (with battery): 1150 kg
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 3000 kg |
|---|---|
| Load center | 600 mm |
| Load distance, center of drive axle to fork | 933 mm |
| Fork height, lowered | 82 mm |
| Tyre size, front | 250x80mm |
| Tyre size, rear | 82x173mm |
| Additional wheels (dimensions) | 127x57mm |
| Number of wheels, front/rear (x=driving) Φ | 1X+2/2 |
| Max. lift height | 217 mm |
| Height of tiller min/max | 1070/1370mm |
| Overall length | 2570 mm |
| Length to face of forks | 1350 mm |
| Overall width | 823 mm |
| Fork dimensions | 55x230x1220mm |
| Width overall forks | 685 mm |
| Aisle width for pallets 1000x1200mm | 3090 mm |
| Aisle width for pallets 800x1200mm | 2965 mm |
| Turning radius | 2290 mm |
| Travel speed, laden/unladen | 8/8.5km/h |
| Battery type/voltage/capacity | LA/24/560 |
| Battery weight | 559 kg |
| Battery dimensions (I/W/H) | 780x335x625mm |
| Service weight (with battery) | 1150 kg |
