Low-Profile Pillar Jib Crane with Trolley (NSDK) 270° 50-100 kg 2-5 m
Price
Configure your crane below — live price, weight and shipping update as you choose.
Categories:
Pillar Jib Cranes
Volume pricing — save up to 12%
Discount is calculated automatically on the cart subtotal.
| Quantity | Discount |
|---|---|
| 1 unit | — |
| 2 | −3% |
| 3–4 | −5% |
| 5–9 | −8% |
| 10+ | −12% |
+3% bundle promo when this order combines items from at least two product categories (e.g. a hoist + a jib crane). Combined with volume pricing, total savings can reach 15%.
Configure your crane
Select capacity, span and options. Price, weight and shipping update live.
Save your configuration
Get a shareable link, email the PDF to yourself, and we will save the configuration on our side.
Reset configuration?
All option selections (duty class, capacity, lift speed, trolley, options…) will return to their defaults. Your current quantity and delivery address will be kept. This cannot be undone.
Request quote
Share your project details and we will get back with a tailored quote.
The NSDK (Comege PFICL) is the lightest 270° partial-rotation pillar jib crane in the range: a self-standing column anchored to the floor, carrying an underbraced light hollow-section boom that swings 270° over a workstation. It is built for indoor use, is manual-slewing only, and ships with a push-travel load trolley included.
Key features
- 270° partial rotation on a floor-anchored pillar with an underbraced light hollow-section (profile CII-L) boom
- Capacity 50-100 kg; spans 2-5 m; standard height under beam 3 m, adjustable in 0.1 m steps up to 4 m (above 4 m on request)
- Indoor use only; manual slewing — this crane type cannot be motorized
- A push-travel load trolley, cable pads and a power-supply cable are included in the base price; fit your own light manual or electric hoist within the crane's rated capacity
- Floor fixation by a bolt-down splitable base plate with a chemical-anchor kit
- Grinding SA 2.5 + 60 µm C2 polyester powder paint, RAL 1028 yellow finish (other RAL on request)
- Theoretical deflection under nominal load ≈ 1/250 of (span + height); max hoisting speed 16 m/min
- Complies with the Machinery Directive 2006/42/EC
Technical overview
- Model / SKU: NSDK (Comege PFICL)
- Product family: Pillar Jib Cranes
- Load capacity: 50 / 80 / 100 kg
- Span: 2-5 m
- Rotation: 270° partial rotation (manual)
- Height under beam: 3 m standard, adjustable to 4 m
- Finish: RAL 1028 yellow (C2, indoor only)
Configure capacity, span, height under beam, fixation and finish, then add the product to the quote list for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 50 kg, 80 kg, 100 kg |
|---|---|
| Span | 2 m, 3 m, 4 m, 5 m |
| Rotation | 270° partial rotation |
| Brand | DELACCO |
| Comege Model | PFICL |
| Compliance | {"machinery_directive": "2006/42/EC"} |
| Capacity [kg] | Spans [m] | Base price [€] |
|---|---|---|
| 50 | 2-5 | 1 235-1 881 |
| 80 | 2-4 | 1 235-1 737 |
| 100 | 2-3 | 1 510-1 627 |

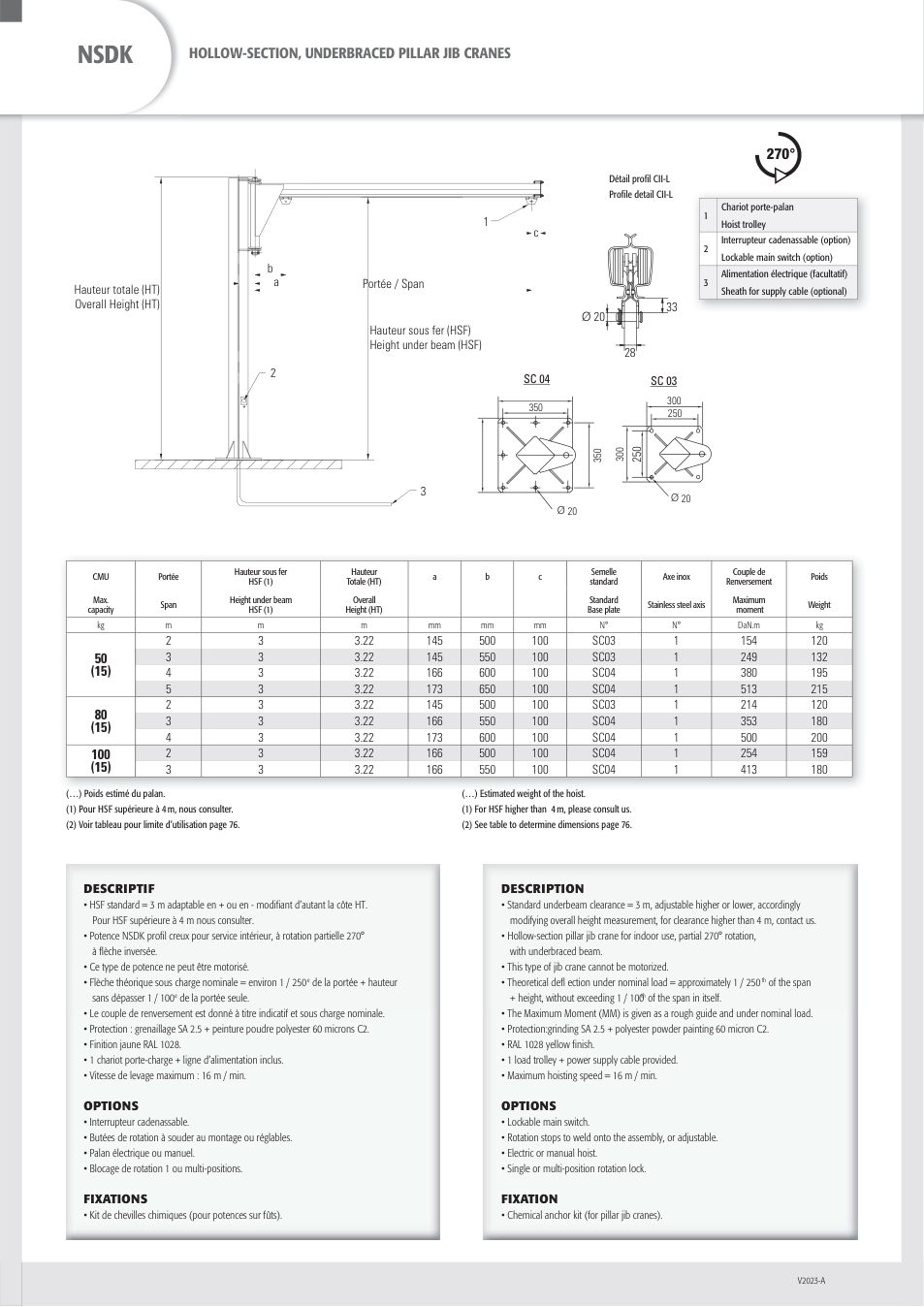

Base price is for the standard 3 m height under beam and includes a push-travel load trolley, cable pads and a power cable; each extra 0.1 m of height, fixation and finish are priced in the configurator. This crane is manual-slewing (270°), indoor use only and cannot be motorized. Per-span dimensions and weights follow the V2023-A datasheet.
