Scale Pallet Truck (RPVV2500) 2500 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Pallet Trucks with Scale
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

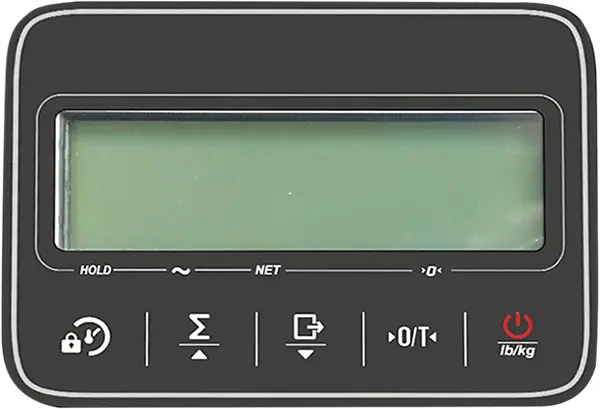

The scale pallet truck weighs goods while you move them. Rated at 2500 kg, it works like an ordinary hand pallet truck but adds an integrated weighing system with a large 6-inch LCD tilted towards the operator, so every pallet is weighed the moment it is lifted — no separate floor scale, no extra handling step.
Weighing system
- Minimum graduation 0.2 / 0.5 / 1.0 kg with 0.1% weighing accuracy
- Hold, accumulate, tare and print functions plus one-click kg/lb unit switching
- Backlight lights up automatically when the weight changes and switches off once the reading is stable, saving energy
- Bluetooth connection to a free Android app (QR code on the instrument) for viewing and printing records
- Optional thermal printer — no ribbon to replace
- Rechargeable 3.7 V / 5 Ah lithium battery with a Type-C port that works with ordinary phone chargers
Built for industrial use
- IP54-protected instrument with a fully enclosed back and aviation-grade connectors
- Steel plating shields the instrument against knocks during operation
- 1150 mm forks, 76/85 mm lowered height and nylon/PU wheels
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity (Q) | 2500 kg |
|---|---|
| Load centre distance (c) | 600 mm |
| Fork dimensions (s/e/l) | 55x170x1150 mm |
| Fork spread (b5) | 540 mm, 570 mm, 705 mm |
| Overall width across chassis (b1) | 520 mm, 550 mm, 685 mm |
| Lowered fork height (h13) | 76 mm, 85 mm |
| Lift height (h3) | 90 mm |
| Handle height (h14) | 1204 mm |
| Overall length (l1) | 1570 mm |
| Steering wheels | ø160 mm (nylon/PU) |
| Fork rollers | ø70 mm |
| Ground clearance (m2) | 20 mm |
| Aisle width, pallet 1000x1200 crossways (Ast) | 2175 mm |
| Aisle width, pallet 800x1200 lengthways (Ast) | 2035 mm |
| Turning radius (Wa) | 1350 mm |
| Scale power supply | 3.7 V / 5 Ah lithium battery |
| Minimum graduation | 0.2 / 0.5 / 1.0 kg |
| Weighing accuracy | 0.1% |
| Service weight (with battery) | 95-105 kg |
