Low Profile Hand Pallet Truck (RPV1000N/RPV1500N) 1000-1500 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Not every load sits on a standard pallet. Sheet metal skids, die plates, closed-bottom pallets and purpose-built frames often leave less than 60 mm of clearance, which is where a normal pallet truck stops being useful. The low profile truck enters under them: its forks rest 35 mm above the floor in the 1000 kg version and 52 mm in the 1500 kg version.
Two versions
- RPV1000N — 1000 kg: 35 mm lowered fork height, lift to 105 mm, 28 mm thick forks on ø35x60 mm tandem rollers
- RPV1500N — 1500 kg: 52 mm lowered fork height, lift to 140 mm, 38 mm thick forks on ø50 mm rollers
- Steel fork rollers on both versions for thin forks that keep their shape under load
- ø150 mm steering wheels keep the whole chassis low
Typical loads
- Skids, sledges and closed-bottom pallets with minimal clearance
- Die and mould plates in press shops and tool rooms
- Machine bases and welded frames transported on their own feet
- Low trolleys and containers built for automated lines

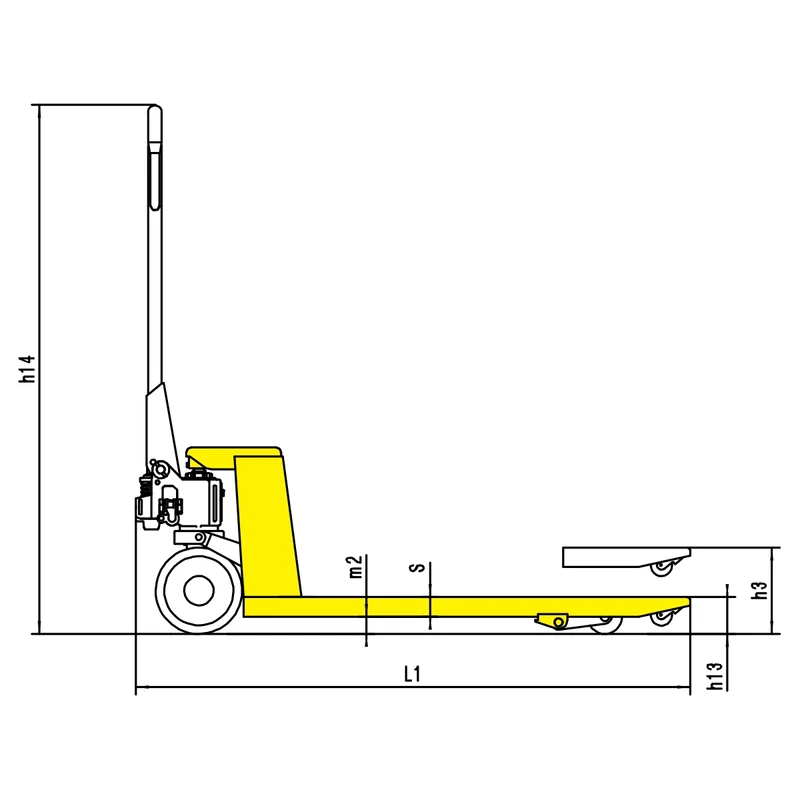

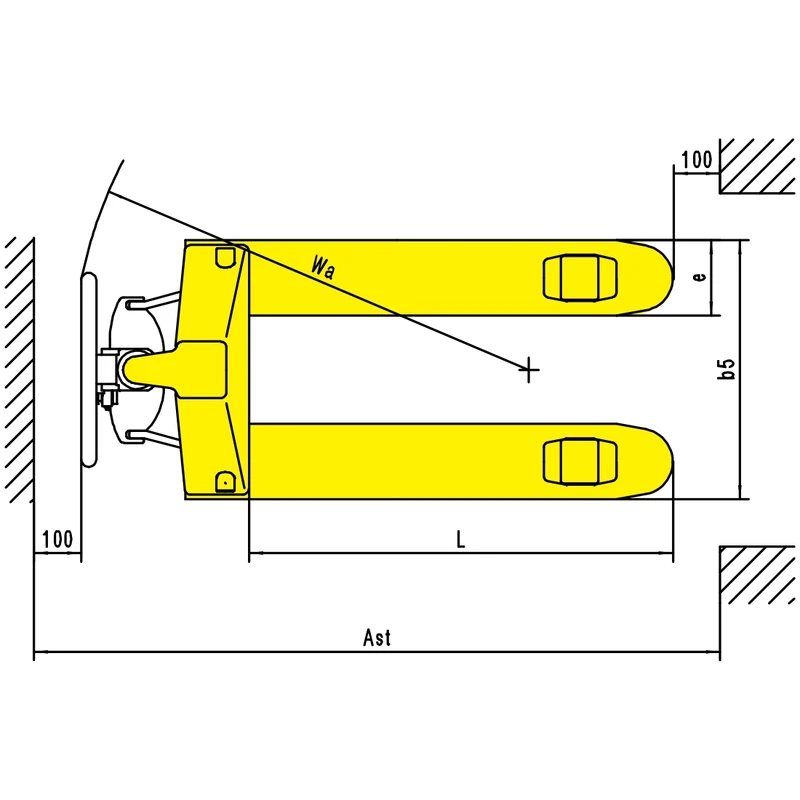

Dimensions
Forks are 1150 or 1220 mm long with a 150 mm fork width, and the overall fork width can be 520, 550 or 685 mm. Total height is 1174 mm (1000 kg) or 1189 mm (1500 kg) and service weight is 65-80 kg. Because the lift is deliberately short, check the required lifting height for your load before ordering.
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity | 1000 kg, 1500 kg |
|---|---|
| Load capacity (Q) | 1000 kg, 1500 kg |
| Lowered fork height (h13) | 35 mm (1000 kg), 52 mm (1500 kg) |
| Max. lift height (h3) | 105 mm (1000 kg), 140 mm (1500 kg) |
| Total height (h14) | 1174 mm (1000 kg), 1189 mm (1500 kg) |
| Fork dimensions (s/e/l) | 28/150/1150 mm (1000 kg), 38/150/1150 mm (1500 kg), Fork length 1220 mm optional |
| Width overall forks (b5) | 520 mm, 550 mm, 685 mm |
| Overall length (l1) | 1533 mm (1000 kg), 1547 mm (1500 kg) |
| Steering wheels | ø150 mm |
| Fork rollers | ø35x60 mm tandem (1000 kg), ø50x93 mm single / ø50x70 mm tandem (1500 kg) |
| Ground clearance, centre of wheelbase (m2) | 7 mm (1000 kg), 14 mm (1500 kg) |
| Aisle width, pallet 1000x1200 crossways (Ast) | 1733 mm (1000 kg), 1747 mm (1500 kg) |
| Aisle width, pallet 800x1200 lengthways (Ast) | 1783 mm (1000 kg), 1797 mm (1500 kg) |
| Turning radius (Wa) | 1266 mm (1000 kg), 1286 mm (1500 kg) |
| Service weight | 65-80 kg |
