A load that is wider than the forks it sits on is unstable and awkward, and packing timber under it only raises the centre of gravity. This truck widens the support instead: the forks are set 840 mm apart, which is roughly 150 mm more than the widest standard version, so wide crates, boards and frames rest on the forks rather than balance on them.
Two chassis versions
- RPV1500SV — standard: 85 mm lowered fork height, lift to 200 mm, ø200 mm steering wheels and ø80 mm fork rollers
- RPV1500NSV — low profile: 52 mm lowered fork height, lift to 140 mm, ø150 mm steering wheels and ø50 mm rollers for shallow frames
- 1500 kg capacity and 840 mm fork spread on both, forks 1150 or 1220 mm long
- 100 kg service weight
Typical loads
- Wide crates and boxes, panel and board stacks
- Machine bases, welded frames and cable drums on wide supports
- Overseas pallets and one-off wooden supports that do not match EUR dimensions
- Two narrow pallets carried side by side
Before you order
An 840 mm fork spread will not enter the openings of a standard EUR pallet, so this truck is meant for wide loads and purpose-built supports. Height without the tiller is 431.5 mm on the standard version and 396 mm on the low profile version.
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes

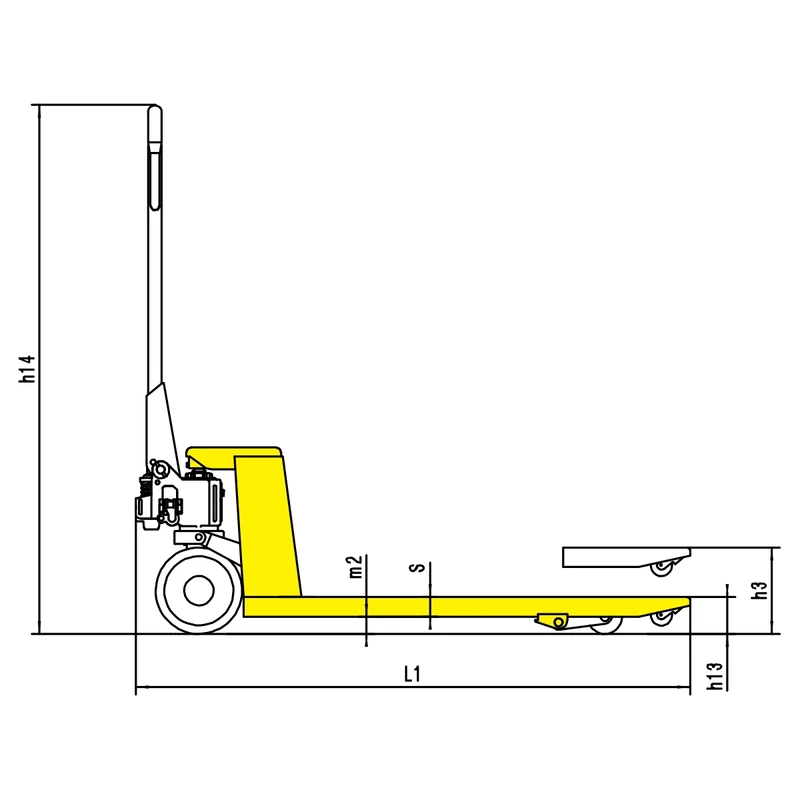

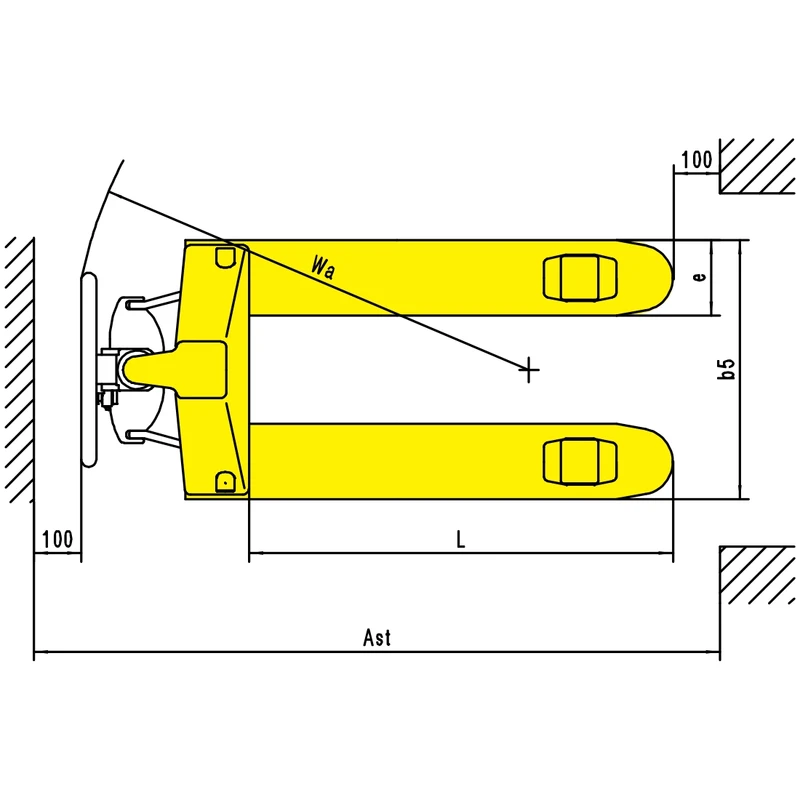

| Fork profile | Standard profile (85 mm lowered), Low profile (52 mm lowered) |
|---|---|
| Load capacity (Q) | 1500 kg |
| Width overall forks (b5) | 840 mm |
| Fork length (l) | 1150 mm, 1220 mm |
| Lowered fork height (h13) | 85 mm / 75 mm (standard), 52 mm (low profile) |
| Max. lift height (h3) | 200 mm / 190 mm (standard), 140 mm (low profile) |
| Height without tiller | 431.5 mm / 421.5 mm (standard), 396 mm (low profile) |
| Steering wheels | ø200 mm / ø180 mm (standard), ø150 mm (low profile) |
| Fork rollers | ø80 mm / ø74 mm (standard), ø50 mm (low profile) |
| Service weight | 100 kg |
