Hand Pallet Truck with Backrest (RPV2500O) 2500 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Tall stacks, loose sacks, drums and bundles do not always stay where they were placed. A load backrest fitted above the forks gives them something to lean on, keeps the stack together when the truck starts and stops, and keeps the load out of the operator's space.
Load backrest
- Guard above the forks supports the load at the tiller end
- Keeps stacked boxes, sacks and bundles from sliding forward during braking
- Protects the operator's legs and feet from the load
- Standard 2500 kg chassis, so nothing is lost in capacity or geometry
Typical work
- High stacks of cartons and sacks in distribution and food logistics
- Drums, cans and canisters that are not strapped down
- Loose bundles, profiles and pipes on flat pallets
- Ramps and uneven floors, where the load tends to shift
Dimensions

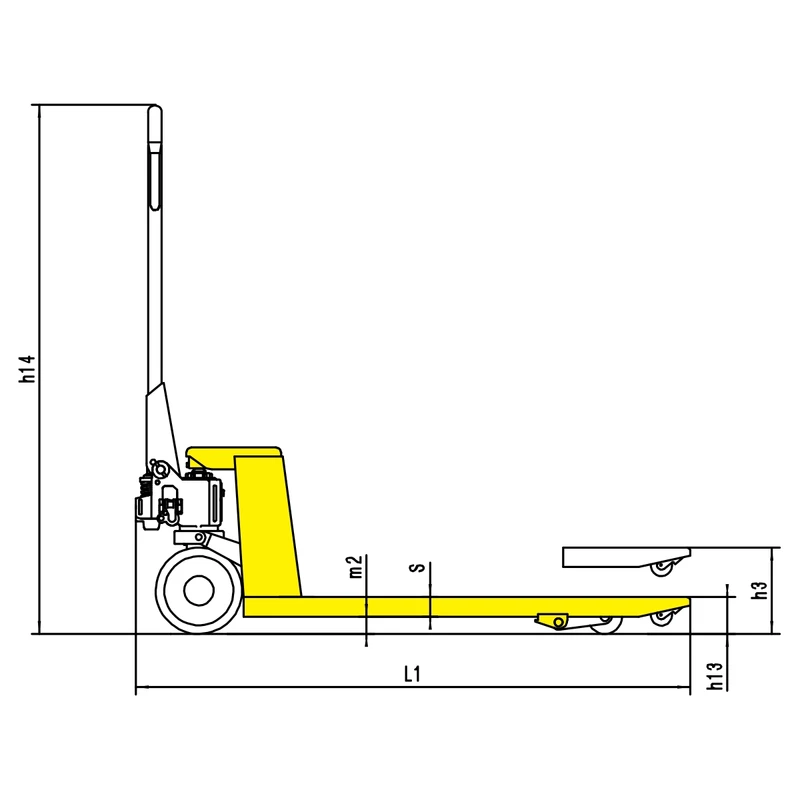

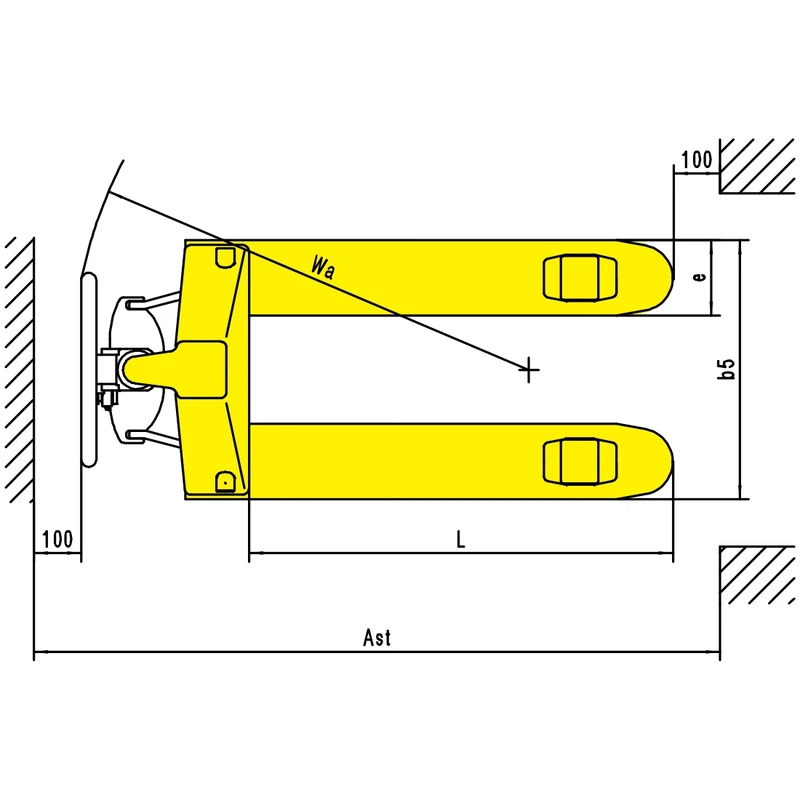

Forks are 1150 or 1220 mm long with an overall width of 520, 550 or 685 mm, lowered fork height is 85 mm with ø200 mm steering wheels or 75 mm with ø180 mm wheels, and lift is 200 or 190 mm. Height without the tiller is 431.5 or 421.5 mm and service weight is 95-105 kg. The height of the backrest is confirmed per order.
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity (Q) | 2500 kg |
|---|---|
| Load backrest | Fitted above the forks |
| Lowered fork height (h13) | 85 mm, 75 mm |
| Max. lift height (h3) | 200 mm, 190 mm |
| Height without tiller | 431.5 mm, 421.5 mm |
| Fork length (l) | 1150 mm, 1220 mm |
| Width overall forks (b5) | 520 mm, 550 mm, 685 mm |
| Steering wheels | ø200 mm, ø180 mm |
| Fork rollers | ø80 mm, ø74 mm |
| Service weight | 95-105 kg |
