Mini Hand Pallet Truck (RPV500M) 500 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
At 35 kg and 1126 mm overall length, this is the pallet truck for places where a full-size truck is simply too much: small shops, workshops, service vans, mezzanines and offices. It handles half pallets, boxes and small crates up to 500 kg, and one person can lift it over a threshold or into a vehicle.
Compact and light
- 500 kg capacity at only 35 kg service weight
- 800 mm forks, 380 mm overall fork width, 1126 mm overall length
- 60 mm lowered fork height with lift to 150 mm
- ø127 mm steering wheel and ø58 mm fork rollers on a short wheelbase, so it turns in the space it stands in
Where it fits
- Service and delivery vans that carry their own truck
- Retail units, pharmacies, bakeries and cafes with small back rooms
- Mezzanines and upper floors reached by a small goods lift
- Workshops and laboratories moving light crates and equipment
Before you order
Forks are 40 mm thick, 100 mm wide and 800 mm long, so this truck is designed for half and quarter pallets and small supports rather than full EUR pallets. Total height with the tiller up is 1127 mm.
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes

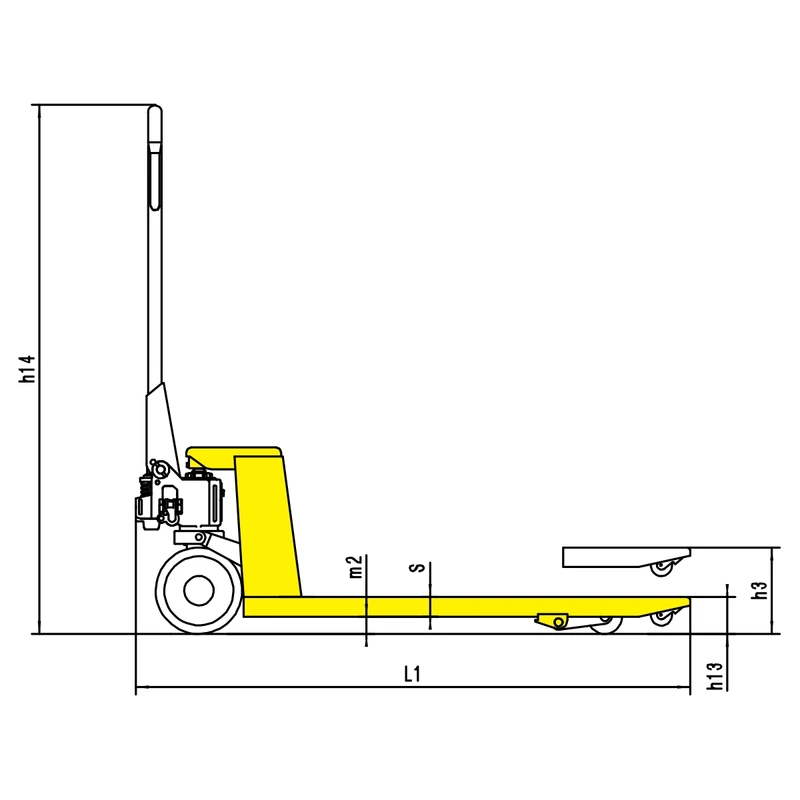

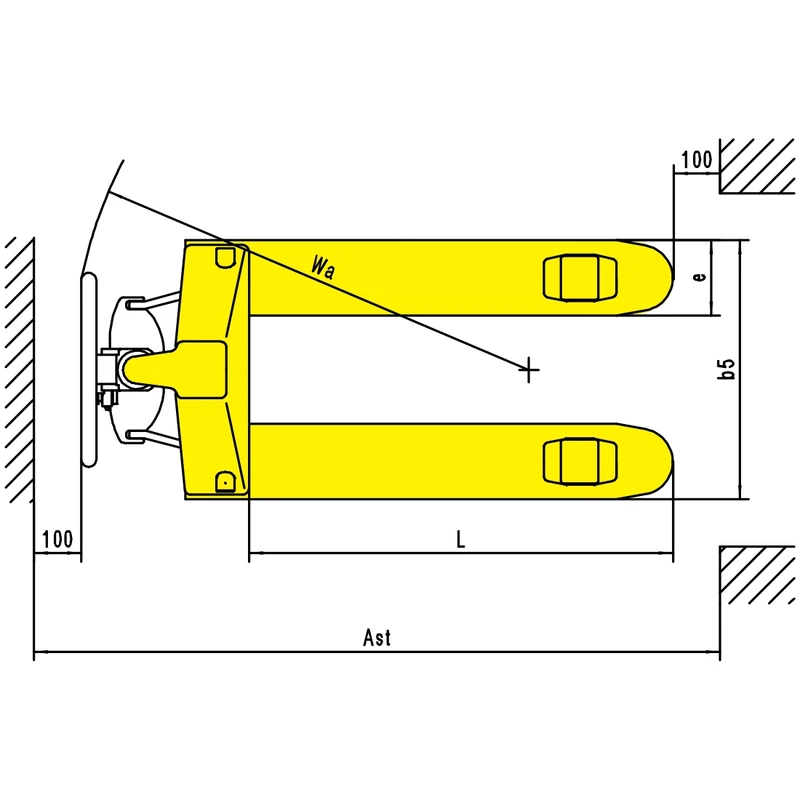

| Load capacity (Q) | 500 kg |
|---|---|
| Service weight | 35 kg |
| Fork dimensions (s/e/l) | 40/100/800 mm |
| Width overall forks (b5) | 380 mm |
| Lowered fork height (h13) | 60 mm |
| Max. lift height (h3) | 150 mm |
| Total height (h14) | 1127 mm |
| Overall length (l1) | 1126 mm |
| Steering wheel | ø127 mm |
| Fork rollers | ø58 mm |
