Quick Lift Hand Pallet Truck (RPV2500BP) 2500 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Hand Pallet Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The quick lift pallet truck is the answer to the most tiring part of manual pallet handling: pumping the tiller. Its double-speed hydraulic pump moves far more oil per stroke while the load is light, so a pallet under 300 kg reaches maximum fork height in roughly five strokes instead of a dozen or more.
Double-speed pump
- About five strokes to full lift with loads up to 300 kg
- Above 300 kg the hydraulics switch over automatically to normal mode, so full 2500 kg capacity is retained
- No lever to set and nothing for the operator to remember — the changeover is done by the valve itself
- Overload valve and controlled lowering as on the standard chassis
Where it pays off
- Order picking and store replenishment with many light pallets and short moves
- Retail back rooms, bakeries and beverage distribution where the same truck is used dozens of times an hour
- Workshops that move empty pallets, boxes and part bins between stations
Chassis and options

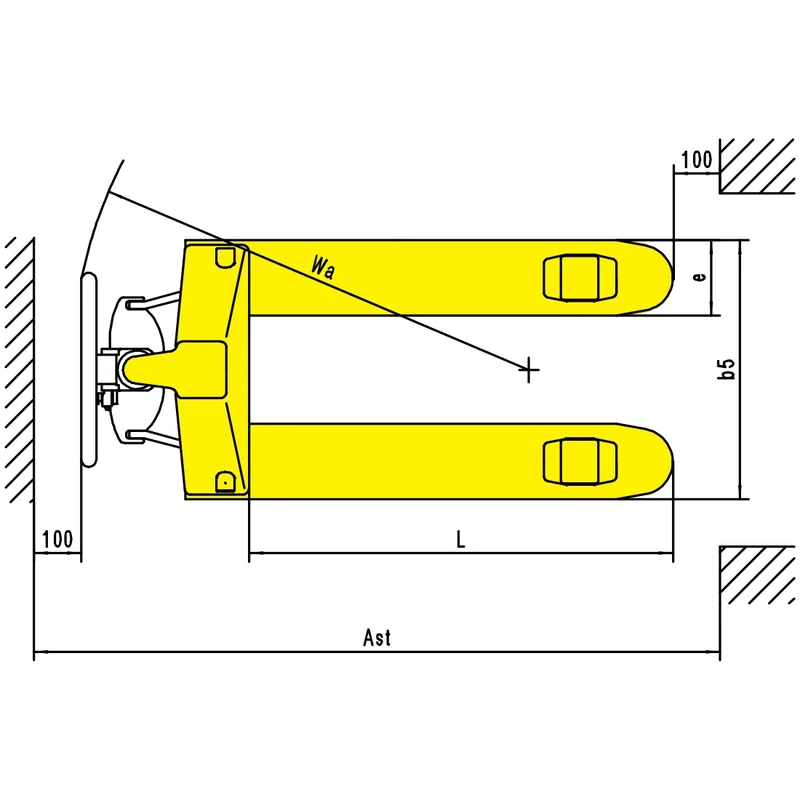

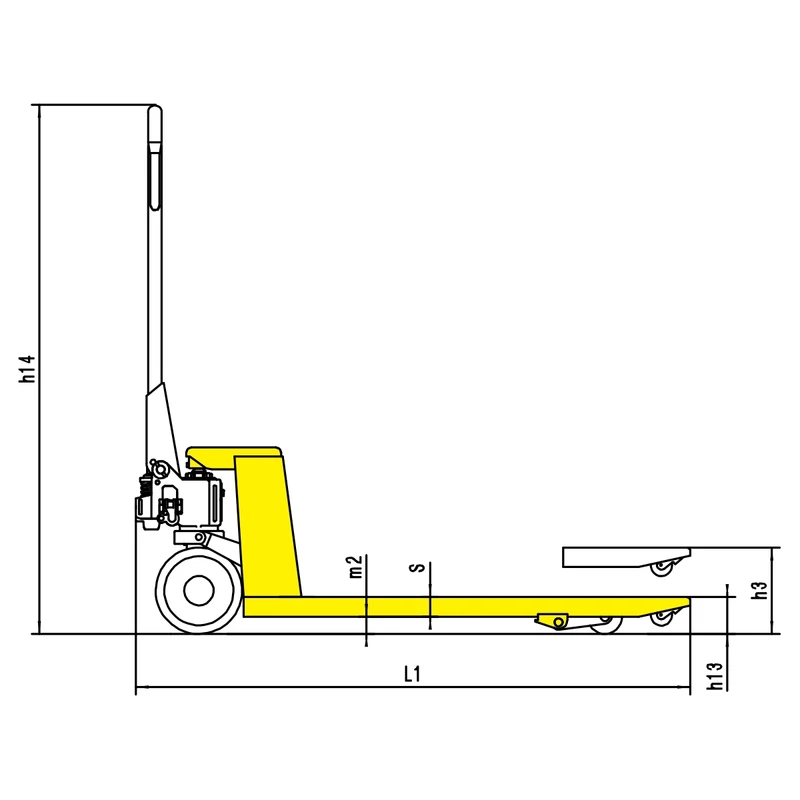

Two wheel packages are available: ø200 mm steering wheels give an 85 mm lowered fork height, ø180 mm wheels give 75 mm. Forks are 1150 or 1220 mm long and the overall fork width can be 520, 550 or 685 mm, so the truck matches EUR, industrial and half pallets. The second figure in every pair of dimensions belongs to the smaller wheel or the longer fork.
Order online or send a quote request for delivery terms and customer-specific configurations.
Attributes
| Load capacity (Q) | 2500 kg |
|---|---|
| Hydraulics | Double-speed pump, approx. 5 strokes to full lift up to 300 kg, automatic switchover above 300 kg |
| Lowered fork height (h13) | 85 mm, 75 mm |
| Max. lift height (h3) | 200 mm, 190 mm |
| Total height (h14) | 1224 mm, 1214 mm |
| Fork length (l) | 1150 mm, 1220 mm |
| Width overall forks (b5) | 520 mm, 550 mm, 685 mm |
| Overall length (l1) | 1533 mm, 1603 mm |
| Steering wheels | ø200 mm, ø180 mm |
| Fork rollers, single | ø80x93 mm, ø74x93 mm |
| Fork rollers, tandem | ø80x70 mm, ø74x70 mm |
| Ground clearance, centre of wheelbase (m2) | 40 mm, 30 mm |
| Aisle width, pallet 1000x1200 crossways (Ast) | 1733 mm, 1803 mm |
| Aisle width, pallet 800x1200 lengthways (Ast) | 1783 mm, 1803 mm |
| Turning radius (Wa) | 1266 mm, 1336 mm |
| Service weight | 65-85 kg |
