Low Level Rider Order Picker (CBD20Q-II/CBD25Q-II) 2000-2500 kg
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Order Pickers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

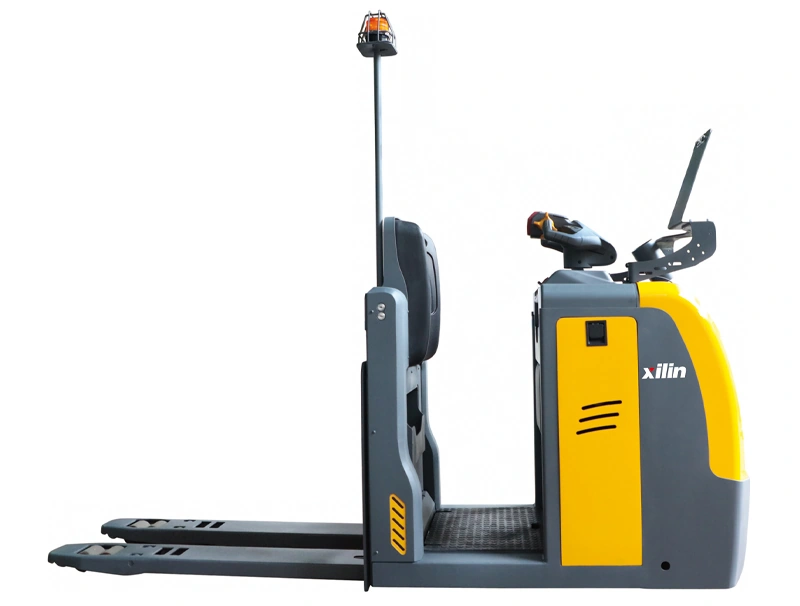

In ground-level order picking the truck's job is simple: carry the growing order and keep up with the picker. This machine does both - the operator steps on, leans into the curved backrest and rides the length of the aisle instead of walking it, with the pallet lifted just clear of the floor.
Built for picking pace
- 10 km/h travel and 15% gradeability unladen - the difference between walking and riding adds up over a shift of pick runs
- Vertical AC drive with electric power steering; the handle returns to centre automatically
- Slide function buttons on both sides of the backrest so the truck can be inched along without remounting
- Battery discharge indicator with USB port; below 15% charge the truck still drives but stops lifting, protecting the battery
Two capacities, two fork lengths
- 2000 kg (CBD20Q-II) or 2500 kg (CBD25Q-II)
- 1220 mm forks for a single pallet, 2400 mm forks for two pallets in line - double the order volume per run
- 24 V / 300 Ah battery (400 Ah option on the 2.5-tonner)
Price and delivery
Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
Attributes
| Load capacity | 2000 kg, 2500 kg |
|---|---|
| Fork length | 1220 mm, 2400 mm |
| Load capacity (Q) | 2000 kg, 2500 kg |
| Max. lift height (h3) | 120 mm |
| Travel speed | 10 km/h |
| Turning radius (Wa) | 2362 mm (1220), 2896-3246 mm (2400) |
| Fork dimensions (s/e/l) | 54/180/1220 mm, 54/180/2400 mm |
| Battery | 24 V / 300 Ah, 24 V / 400 Ah (option, 2.5 t) |
| Motors | Drive 3 kW, Lift 1.2 kW |
| Steering | Electric power steering (EPS) |
| Naming Pending | True |
