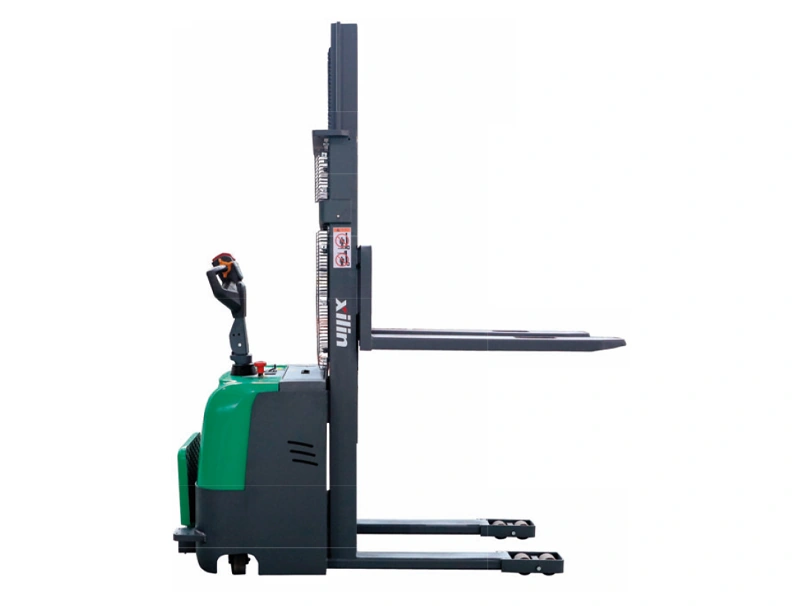

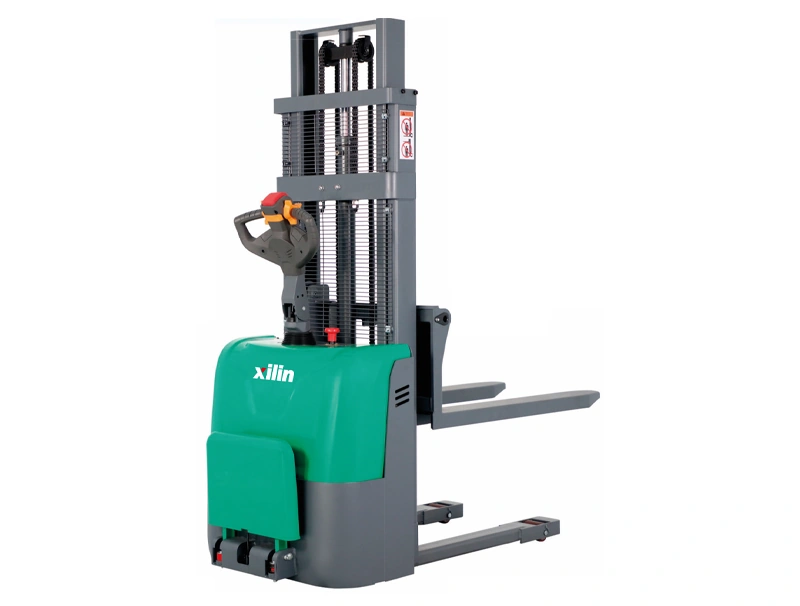

Electric Rider Stacker (CDD15K/CDD20K) 1500-2000 kg 1600-4000 mm
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Select configuration
Choose attribute values to resolve the exact variant, SKU and price.
Choose all attributes to lock a variant.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Full Electric Stackers
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
The K series is the current generation of our supplier's full-electric stackers, offered here in two distinct builds that share the mast programme and controls but serve different distances.
CDD15K - 1500 kg, pedestrian
- Walk-behind tiller truck, 610 kg service weight
- Masts from 1600 to 3500 mm
- Adjustable fork spread 300-695 mm handles euro pallets, half pallets and special footprints
CDD20K - 2000 kg, stand-on rider
- Operator platform and a 1.2 kW AC drive motor for longer runs at up to 6 km/h
- Masts from 2500 to 4000 mm
- Heavier chassis (900 kg) and four load rollers for stability with two tonnes raised
Common to both
- 2.2 kW lift motor, electromagnetic brake, PU wheels with stabiliser wheels
- Forks 1150 mm with 1070 mm option
- Aisle width around 2.5 m for an 800 x 1200 pallet
Each model comes in an E and an N battery specification; we confirm the battery options and exact mast drawing with the quotation.
Price and delivery
Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
Attributes
| Load capacity | 1500 kg, 2000 kg |
|---|---|
| Lift height | 1600 mm, 2500 mm, 3000 mm, 3300 mm, 3500 mm, 4000 mm |
| Load capacity (Q) | 1500 kg, 2000 kg |
| Operator type | Pedestrian (CDD15K), Stand-on rider (CDD20K) |
| Service weight | 610 kg (CDD15K), 900 kg (CDD20K) |
| Fork length | 1150 mm (1070 mm option) |
| Width overall forks (b5) | 300-695 mm (CDD15K), 570/695 mm (CDD20K) |
| Turning radius (Wa) | 1635 mm (CDD15K), 1665 mm (CDD20K) |
| Travel speed | 4.5/5 km/h (CDD15K), 5/6 km/h (CDD20K) |
| Motors | Lift 2.2 kW, Drive 0.65 kW / 1.2 kW AC |
| Battery (E/N spec) | Confirmed with quotation |
| Naming Pending | True |
